Example 4
This example for the VORDME A:MUGGZ approach uses a flight
plan with the last two waypoints as VOR IMB (Kimberly, Oregon) to
The Dalles, Oregon (DLS). This example is used because the step
down fixes are referenced to a VOR that is not co-located with the
MAP and because of the published missed approach instructions.

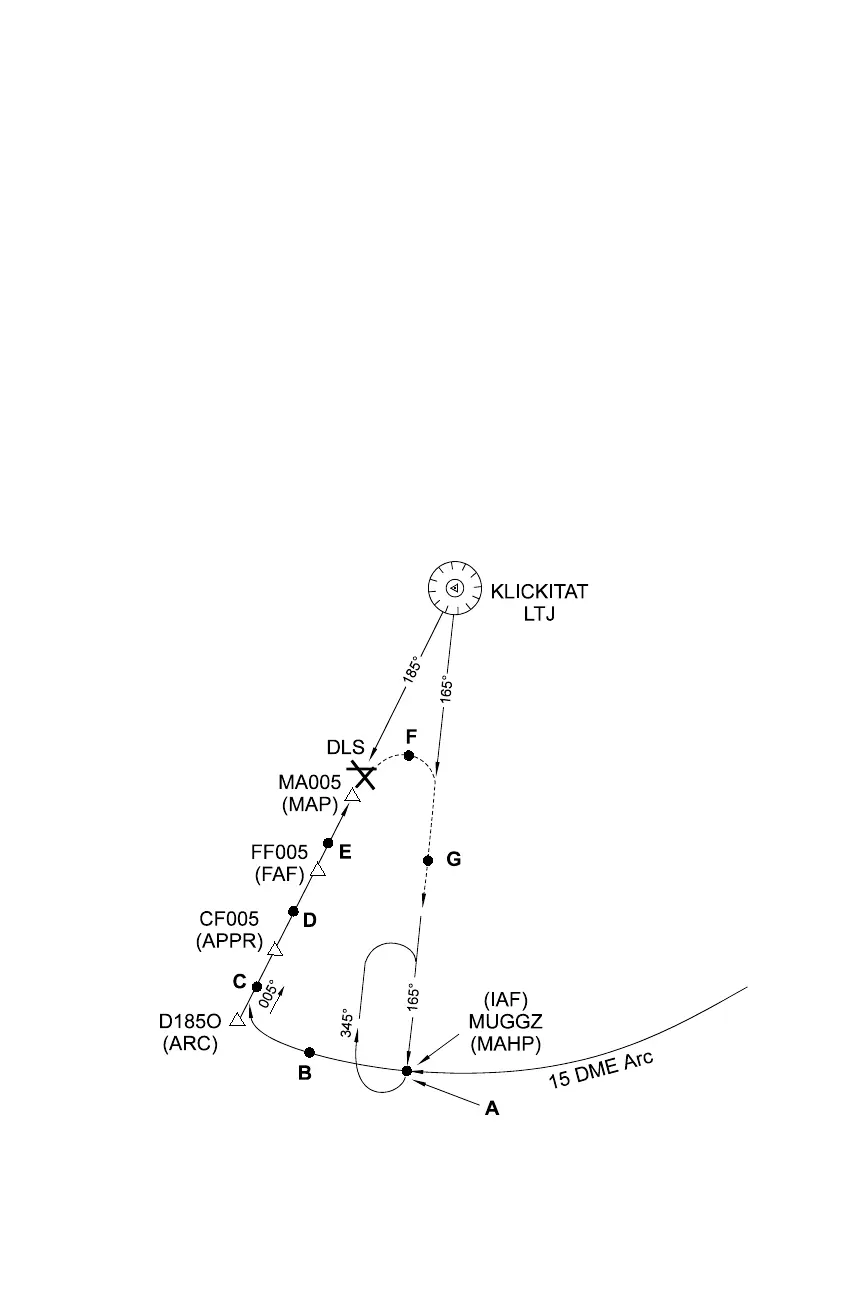

Illustration Points
A - Approaching MUGGZ (IAF)
B - On the DME Arc between MUGGZ and D185O (ARC)
C - Inbound between D185O and CF005 (APPR)
D - Between CF005 and FF005 (FAF)
E - Between FF005 and MA005 (MAP)
F - Turning to intercept 165° to MUGGZ
G - Inbound to MUGGZ (MAHP)
H - In the holding pattern at MUGGZ
En Route
293
