5.4 Creates the Lens File
■
Creating the lens OFF file
&UHDWHDOHQV2))¿OHWKDWLVDOHQV¿OHIRUDVWDQGDUGOHQV7KHOHQV2))¿OHSURYLGHVDUHIHUHQFHYDOXHIRUFUHDWLQJDGGLWLRQDO
OHQV¿OH

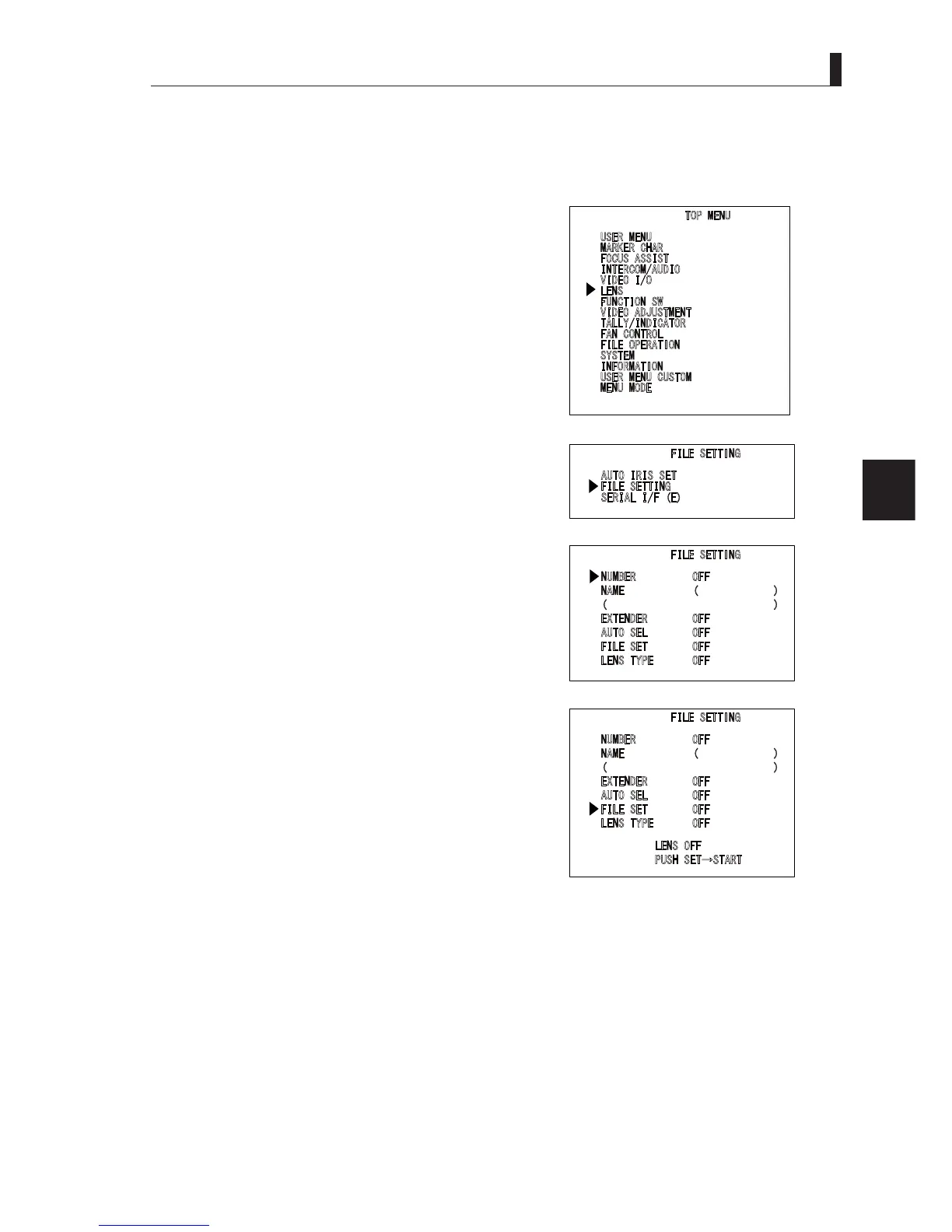

1 Display the ENGINEER MENU screen to select
"LENS" and press the ENTER button.
Caution:
:KHQFUHDWLQJWKHOHQV¿OHVHWWKH(1*,1((50(18
WR213OHDVHUHIHUWR%DVLFRSHUDWLRQRIWKHPHQX
VFUHHQIRUWKH(1*,1((50(18VHWWLQJ
2 Select "FILE SETTING" on the SUB MENU screen
and press the ENTER button.
3 Select "OFF" for "NUMBER".
4 Select "AUTO" for "FILE SET", and then select
"START".
The data acquisition starts. The creation of lens OFF
¿OHLVFRPSOHWHGZKHQ&203/(7('LVGLVSOD\HG
