Ikegami CCU-430 - Camera I;O Connector

224
UHK-430/CCU-430 1710 VER2 (E)

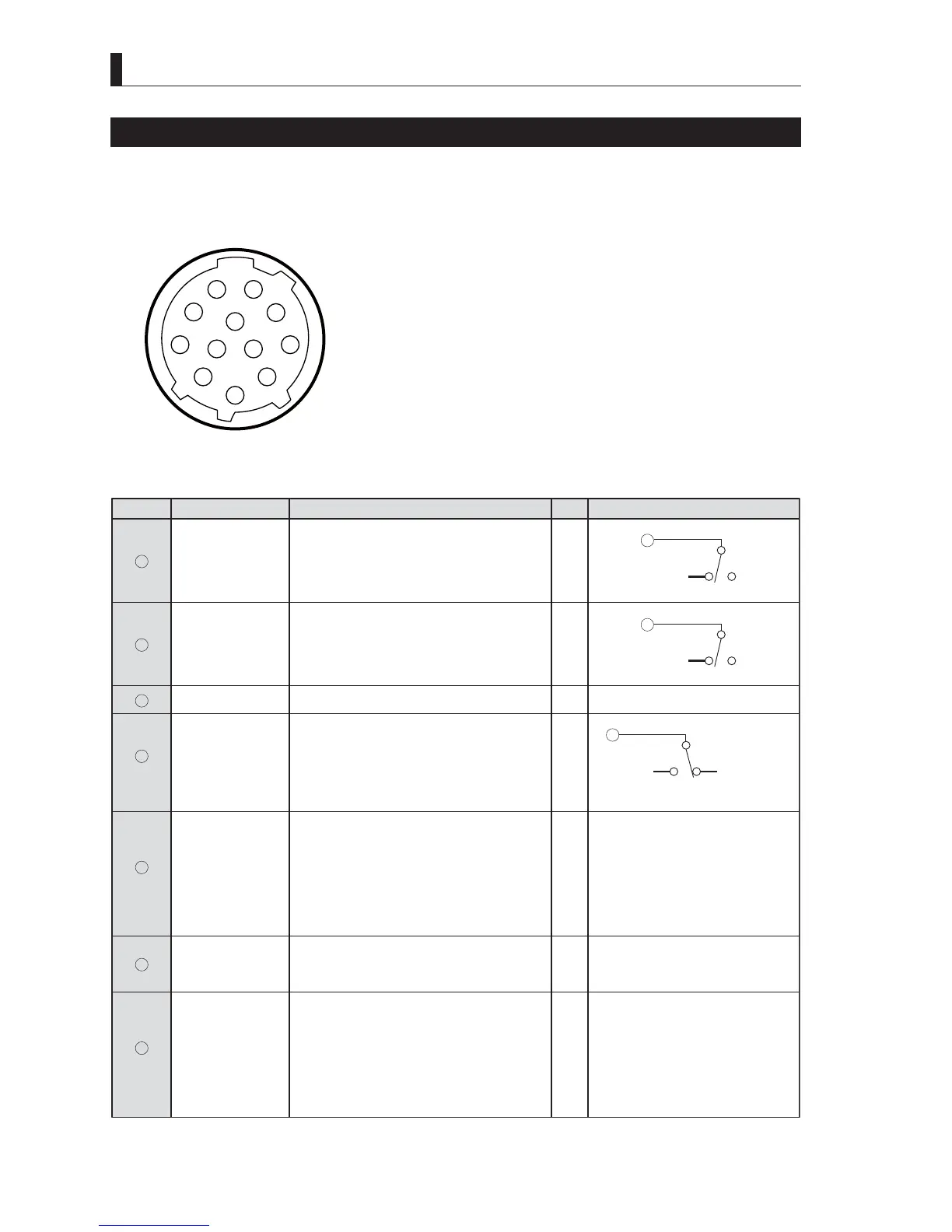

9.3 External Connections
Camera I/O Connector
■
Lens Connector
Used to connect each type of lens. The connector pin assignment differs among camera lens mount types.
Pin No. Name Function External Interface
I/O
1
2
3
4
5
6
7
[BTA Mount]
RET ON
VTR T RIG
GND
IRIS SE RVO
IRIS CONT
+12V LENS
IRIS FOL L OW
RE T URN VIDE O ON/OFF signal
RETURN ON: 0.5V or less Zout = 10M Ω or more
RETURN OFF: OPEN Zout = 1.5k Ω or less
Zin = 100k Ω ± 5% (10kΩ or more)
Momentary operation
VTR START /STOP sign al
VTR START: 0.5V or less Zout = 10M Ω or more
VTR STOP: OPEN Zout = 1.5k Ω or less
Zin = 100k Ω ± 5% (10kΩ or more)
Momentary operation
Grounding for LENS
Forced IRIS servo ON/OFF
SE RVO ON : +5V ± 0.5V
Zout = 10k Ω or less
SERVO OFF : 0.5V or less
Zout = 1.5k Ω or less
or 100k Ω or more
Control output of lens iris
F2.8 : 6.2V ± 0.05V
(6.2V ± 0.1V)
F16 : 3.4V ± 0.05V
(3.4V ± 0.1V)
CLOSE : 2.5V ± 0.2V
(2.1V to 2.9V)
Zout = 1k Ω ± 10% (Fixed)
DC+12V output for LENS
Normal operation range: DC+10V - +20V
(DC+10V - +17V)
Control output of lens iris
F2.8 : 6.2V ± 0.05V
(6.2
V ± 0.1V)
F 16 : 3.4V ± 0.05V
(3.4V ± 0.1V)
CLOSE : 2.5V ± 0.2V
(2.1V to 2.9V)
Zin = 100k Ω ± 2% (100k Ω or more)
IN
IN
GND
OUT
OUT
OUT
IN
(continues to the next page)
Camera side : HR10A-10R-12SC
Cable side : HR10A-10P-12PC
(12-pin male plug)
3
2
19
10
8
1112
7
6 4
5
1
V≦0.5V
2
V≦0.5V
4
V≦0.5V V=5V±0.5V
Insertion Side
-------- Receptacle --------
