3.3 Connecting the CCU and Camera Head
Mounting and Removing the Viewfinder
■

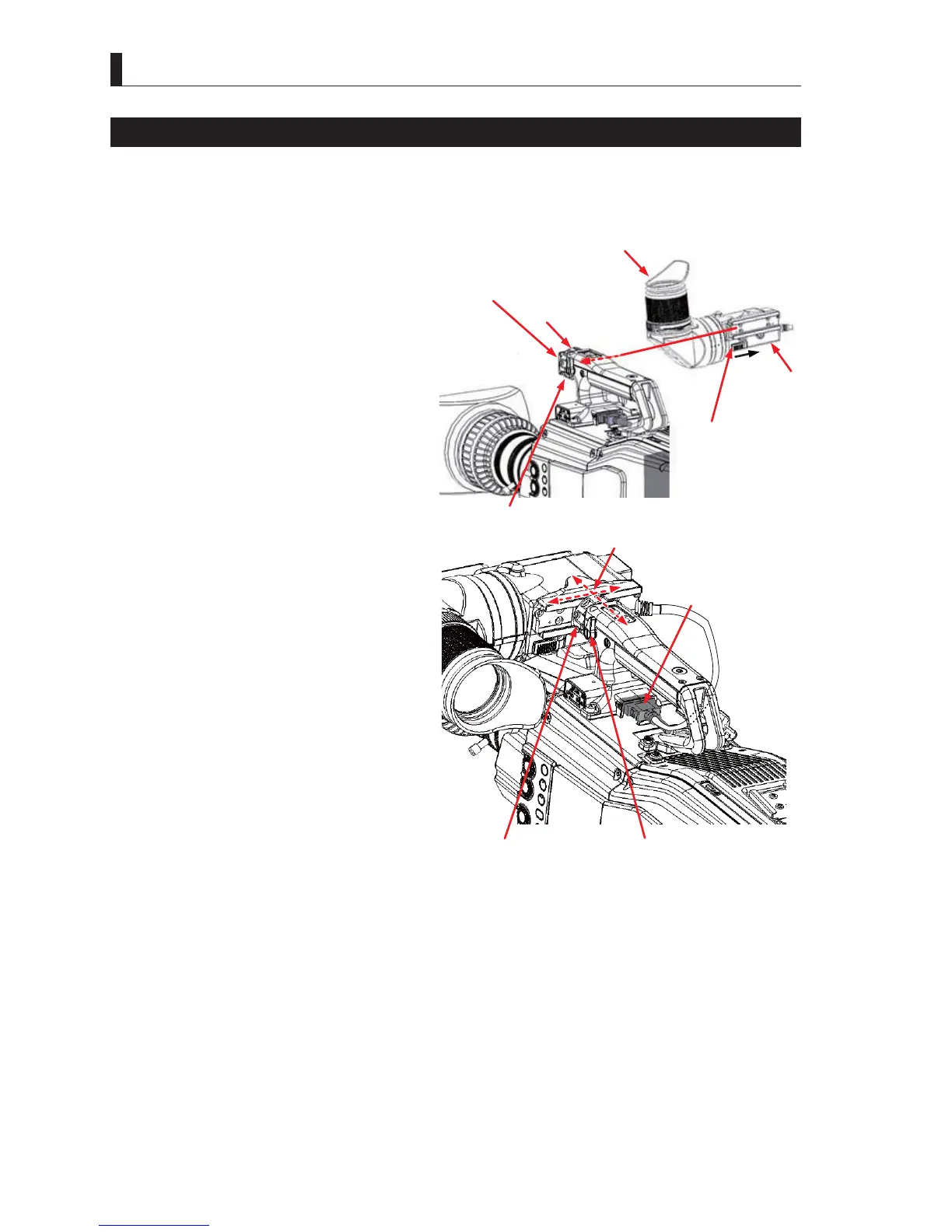

Mounting the Viewfinder
7KLVVHFWLRQH[SODLQVKRZWRPRXQWWKHYLHZ¿QGHU9)/'
1 Check the Power switch of the camera is turned
off.
If the POWER switch of the camera is set to "CCU"
or "EXT", set it to "OFF".
2 To attach the viewfinder from the left side of the
camera, stand up the eyepiece at a 90 degree
angle.
Insert the Slide rail of the viewfinder into the VF
lock mount on the handle.
Slide it to the right until you hear a click. When it is
locked by the lock pin of the guide, you hear a click.
3 Connect the VF cable to the VF connector on
the camera handle.
$OLJQWKHFRQQHFWRUDQGLQVHUWLWXQWLOKHDUDFOLFN
When it is locked by the connector latches, you hear
a click.
Caution:
%HFDUHIXOQRWWRFDWFK\RXU¿QJHUVLQWKH/RFN
OHYHURU*XLGH5DLOZKHQDWWDFKLQJWKHYLHZ¿QGHU
you may get injured.
■
Adjusting the position of the viewfinder (left and right, back and forth)
1 Loosen the "VF lock knob" and hold and slide the VF left and right to adjust the position of the viewfinder. After
determining the desired position, tighten the "VF lock knob" to fix the VF.
2 Loosen the "VF front-back lock lever" and hold and slide the VF back and forth to adjust the position of the
viewfinder. After determining the desired position, tighten the "VF front-back lock lever" to fix the VF.
Caution:
When adjusting the VF left and right, adjust it with the "Retaining Pin" engaged. If the left and right adjustment is performed
without the "Retaining Pin" engaged, the VF may fall off
Tilt the eyepiece
upward 90 degrees
VF lock mount
VF front-back lock lever
Retaining pin guide lever
Slide rail
VF lock knob
VF movement direction
VF connector
VF fixing lock knob VF front-back lock lever
