MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE
MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE
Work with care about followings for maintenance of products conforming to RoHS directive.
1. Identification
- For products conforming to RoHS directive, the letter “E” is appended at the end of the serial number on the label. For models
that the letter cannot be appended to the serial number, the letter “E” will be described in a distinguishable position on the label.

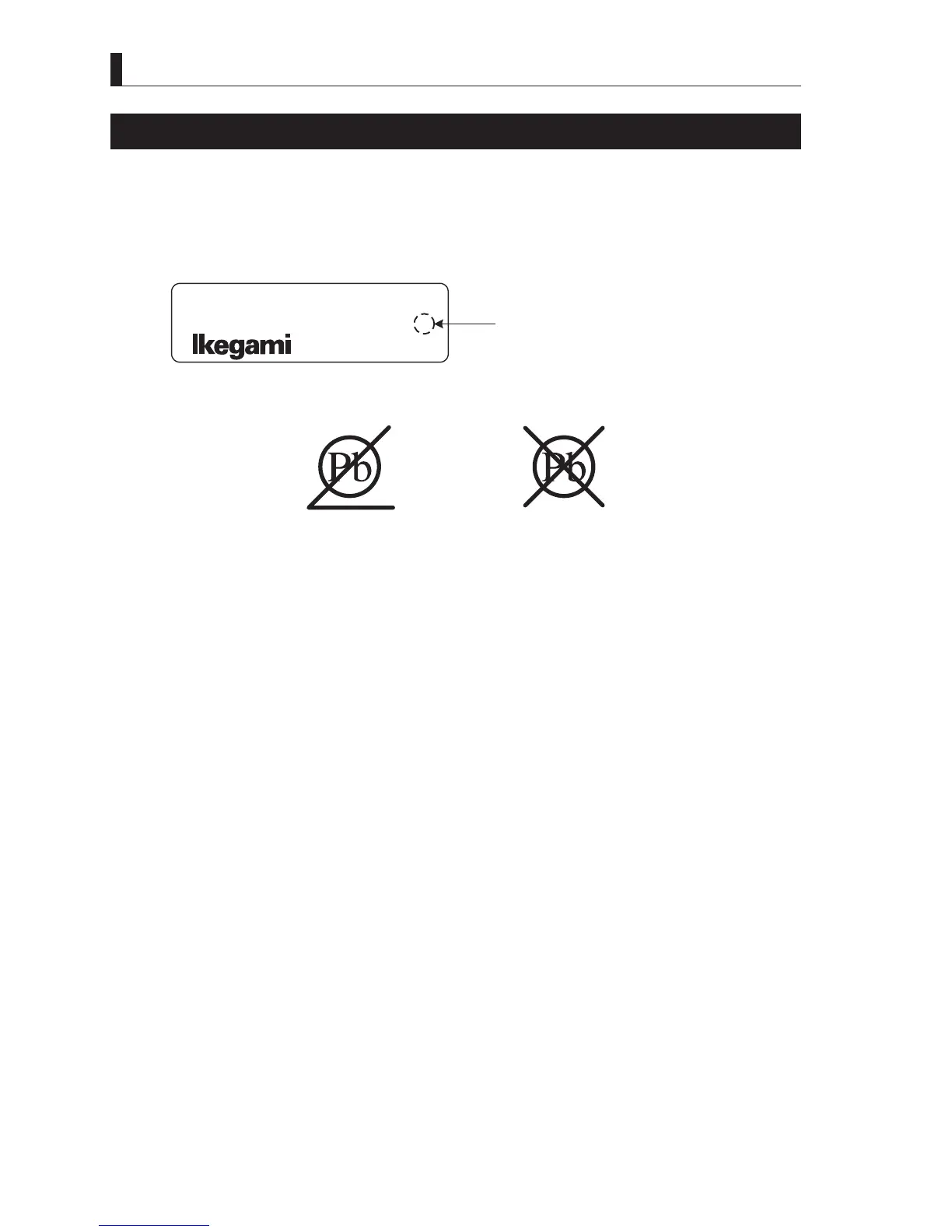

$GHVFULSWLRQH[DPSOHRQDPDLQODEHOLVVKRZQEHORZ
MODEL UHK-430
SERIALNo. AA123456 E
Product conforming to RoHS directive
Label
- The printed circuit boards of the RoHS compliant products have ether of the following marks with serigraph or label.
Phase 3
Phase 3A
2. Soldering
6LQFHWKHPHOWLQJSRLQWRIOHDGIUHHVROGHUXVHGIRUWKHSURGXFWVFRQIRUPLQJWR5R+6GLUHFWLYHLVWRGHJUHHV&HOVLXVKLJKHU
than that of conventional solder with lead (Sn-Pb eutectic solder), a high temperature needs to be set to a soldering iron. Taking
allowable temperature limit of the parts and stable work into consideration, use a soldering iron with excellent thermal recovery
characteristics.
5HFRPPHQGHGVROGHUFRPSRVLWLRQLV³6Q$J&X´RUHTXLYDOHQW
- Separate the soldering iron exclusively for RoHS products and the soldering iron for conventional use.
6HWWKHWHPSHUDWXUHRIWKHVROGHULQJELWWRWRGHJUHHV&HOVLXV
7KHWHPSHUDWXUHPD\QHHGWREHDGMXVWHGDFFRUGLQJWRWKHVL]HRIWKHFRSSHUIRLOODQGRQWKHSULQWFLUFXLWERDUGDQGWKHWLSZLGWK
of the soldering bit.
- Finish by a lead-free solder looks dull or whitish compared to conventional solder with lead.
- If the customer mixed the lead-solder with the main body wiring or the circuit board, it becomes guarantee off the subject.
Ikegami doesn't guarantee to do the repair work. Because the solder polluted with lead cannot be removed.
3. Parts
Be sure to use parts conforming to RoHS directive.
