Ikegami CCU-430 - External Connections; Camera to Its CCU (Fiber Cable) Connector

SPECIFICATIONS
9
223
UHK-430/CCU-430 1710 VER2 (E)

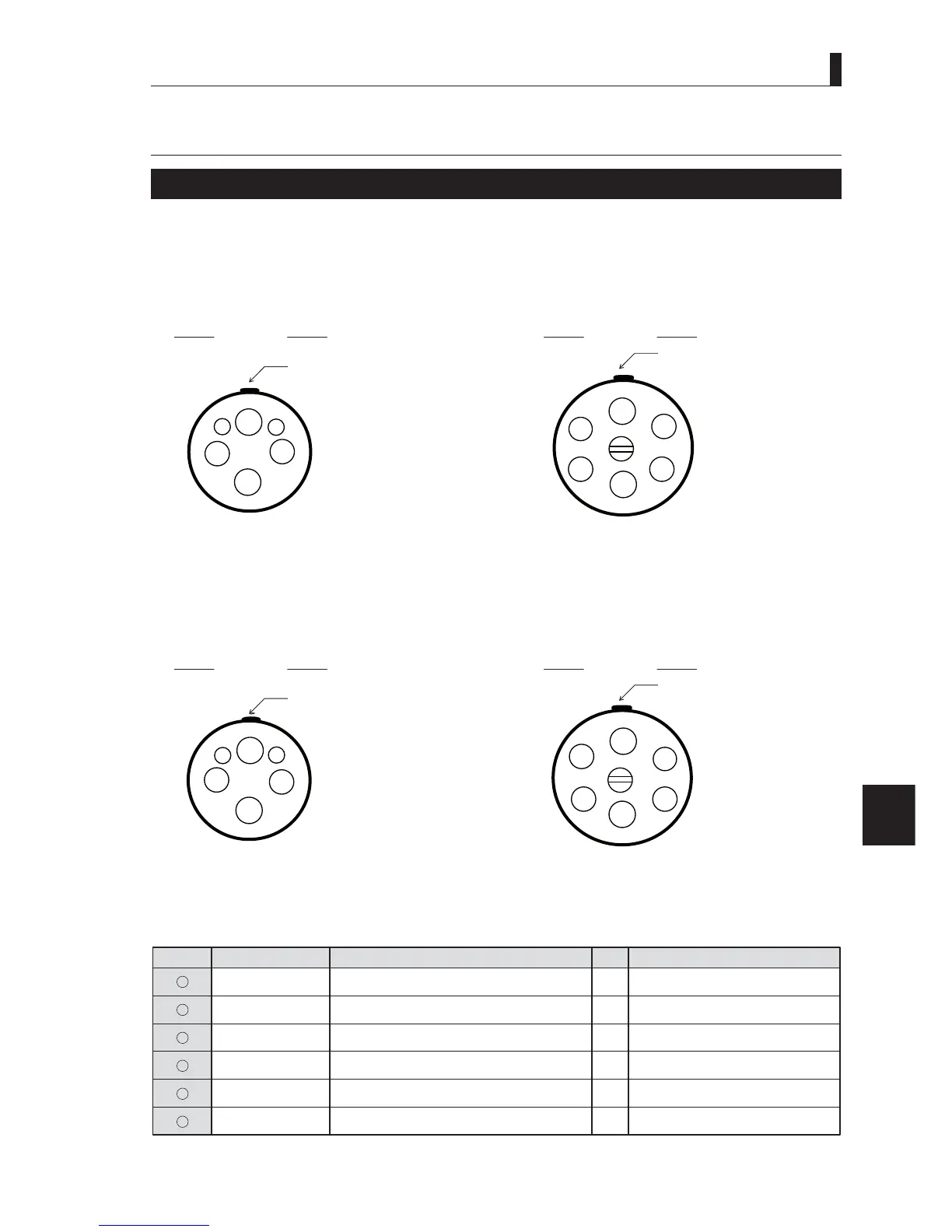

9.3 External Connections
9.3 External Connections
Camera to its CCU (Fiber Cable) Connector
■
CAMERA Connector
Used to connect the camera to its CCU.
<RXFDQFKRRVHHLWKHURIWKHIROORZLQJWZRW\SHVRIFDPHUDFRQQHFWRUV
Pin No. Name Function I/O External Interface
Guide mark
Guide mark
Guide mark
Guide mark
1
2
3
4
5
6
OPT H - C
OPT C - H
CONTROL (H)
CONTROL (C)
POWER (H)
POWER (C)
Optical contact Camera -> CCU
Optical contact CCU -> Camera
Control signal (H) CCU -> Camera
Control signal (C) Camera -> CCU
Power (H) supplied from CCU
Power (C) supplied from CCU
OUT
IN
IN
OUT
IN
IN
[SMPTE type]
[Camera Side]
[OPS Series]
[SMPTE type]
[CCU Side[
[OPS Series]
1
2
5
6
3
4
1
2
43
6
5
1
2
5
6
3
4
1
2
4 3
6
5
< SMPTE type > < OPS Series >
< SMPTE type > < OPS Series >
Receptacle
Insertion Side Insertion Side
Camera side : EDW. 3K. compatible product
Cabl e side : FUW. 3K.
Camera side : OPS-R
Cabl e side : OPS-P
Receptacle
ReceptacleReceptacle
Receptacle
Insertion Side Insertion Side
Camera side : FXW. 3K. compatible product
Cabl e side : PUW. 3K.
CCU side : OPS-PR
Cabl e side : OPS-J
Receptacle
ReceptacleReceptacle
