7.2 Format Conversion
7.2 Format Conversion
Frame Field Conversion
■

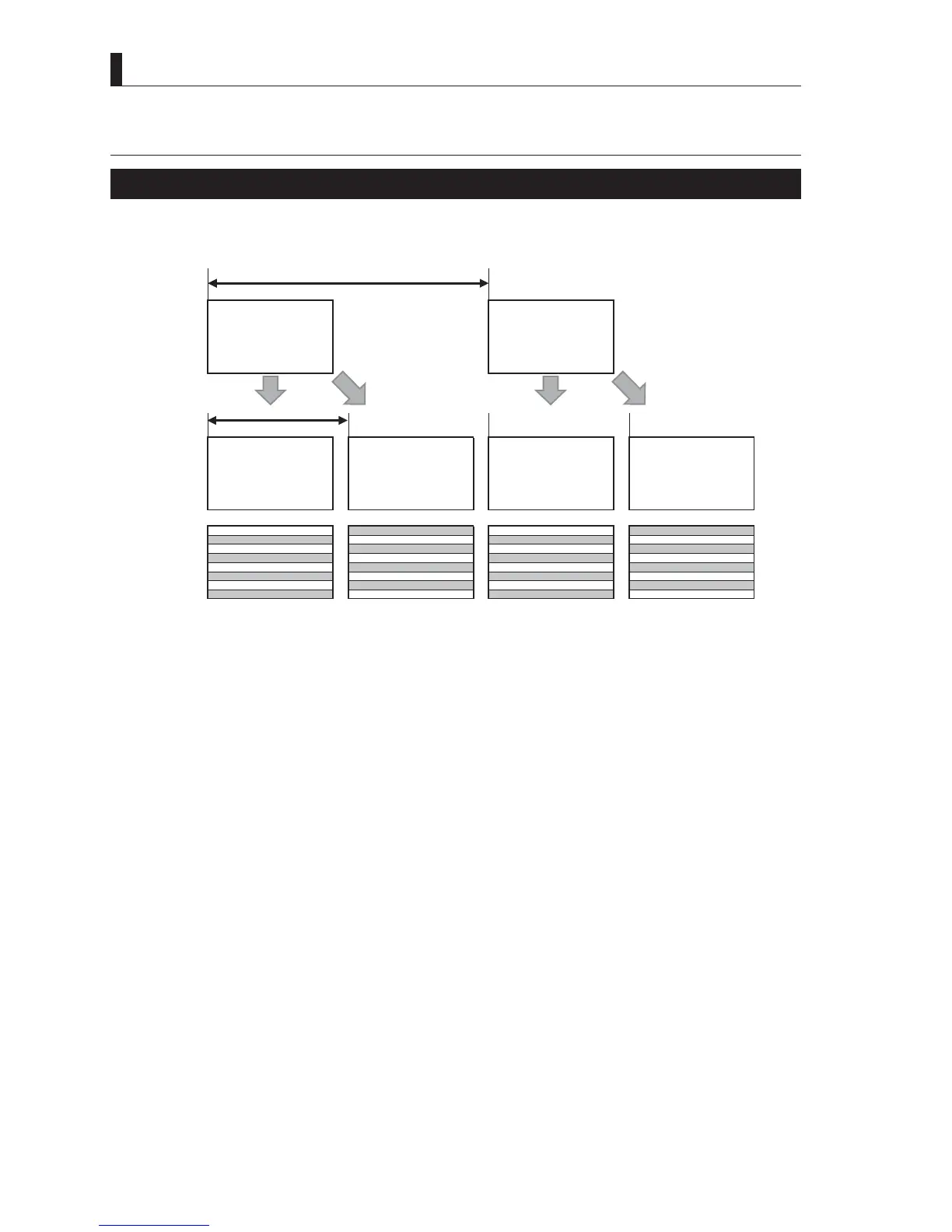

"Segmented Frame"
The segmented frame extracts a video with progressive system per 1 line, and converts into a video with interlace system.
OddLines EvenLines OddLines EvenLines
SegmentA
1stField
1/48sec
1/24sec
SegmentB
2ndField
SegmentA
1stField
Frame#1 Frame#2
SegmentB
2ndField
24P
24PsF
,WLVFKDUDFWHUL]HGE\QRPRYHPHQWLQWKH¿UVWVHJPHQW6HJPHQW$DQGWKHVHFRQGVHJPHQW6HJPHQW%7KHVHWZRVHJPHQWVDUH
V\QWKHVL]HGWRRQHSURJUHVVLYHVLJQDO
Since Segmented Frame system can be displayed on the CRT monitor and created without any major change in conventional
interlace devices. Therefore, this system has been widely used since the 24P format is introduced.
6LQFH3V)VLJQDOVDQG3V)VLJQDOVFDQEHWUHDWHGDVLDQGLUHVSHFWLYHO\LQUHFHQW\HDUVWKLV
system has been often used as the time-release video effect.
