7.9 Simultaneous option
7.9 Simultaneous option
Overview and implementation requirements
By introducing the "HD SIMUL" option to the CCU-430, simultaneous output of HD video and 4K video becomes possible. The
HD output can be a simultaneous output of a 1980 x 1080 pixel image down-converted from the 4K image,or an HD cut-out output
of a desired section from the 4K image.
7KH+'V\VWHPDQGWKH.V\VWHPFDQSURFHVVLPDJHVLQGHSHQGHQWO\7KH\FDQLQGLYLGXDOO\VHWWKH*$00$FXUYHFRORUWRQH
adjustment, and contour correction function respectively.
* * *
HD QTV IN
HD RETURN IN
SDI-OUTPUT-2
MON OUTPUT
HD TRK OUT
VP_OUT
AES OUT
SDI-OUTPUT-1
SYNC OUT
DATA TR K-1
TALLY OUT
COMMUNICATION
I/F
REMOTE
SYS_IF
REFERENCE
RET_MON
GbE TRK
LAN
OCP
CSU
MPU
1
2
1
2
4
1
2
1
1
2
2
3
4
4
3
CAMERA
HD_OUT
SDI-OUTPUT-4
SDI-OUTPUT-3
1
2
3
4
3
2
1
4
HDVIDEO
(D/C,C/O)
SDR
BT.709
HDR
BT.2020
4KVIDEO
Exam
p
le of s
y
stem confi
g
uration

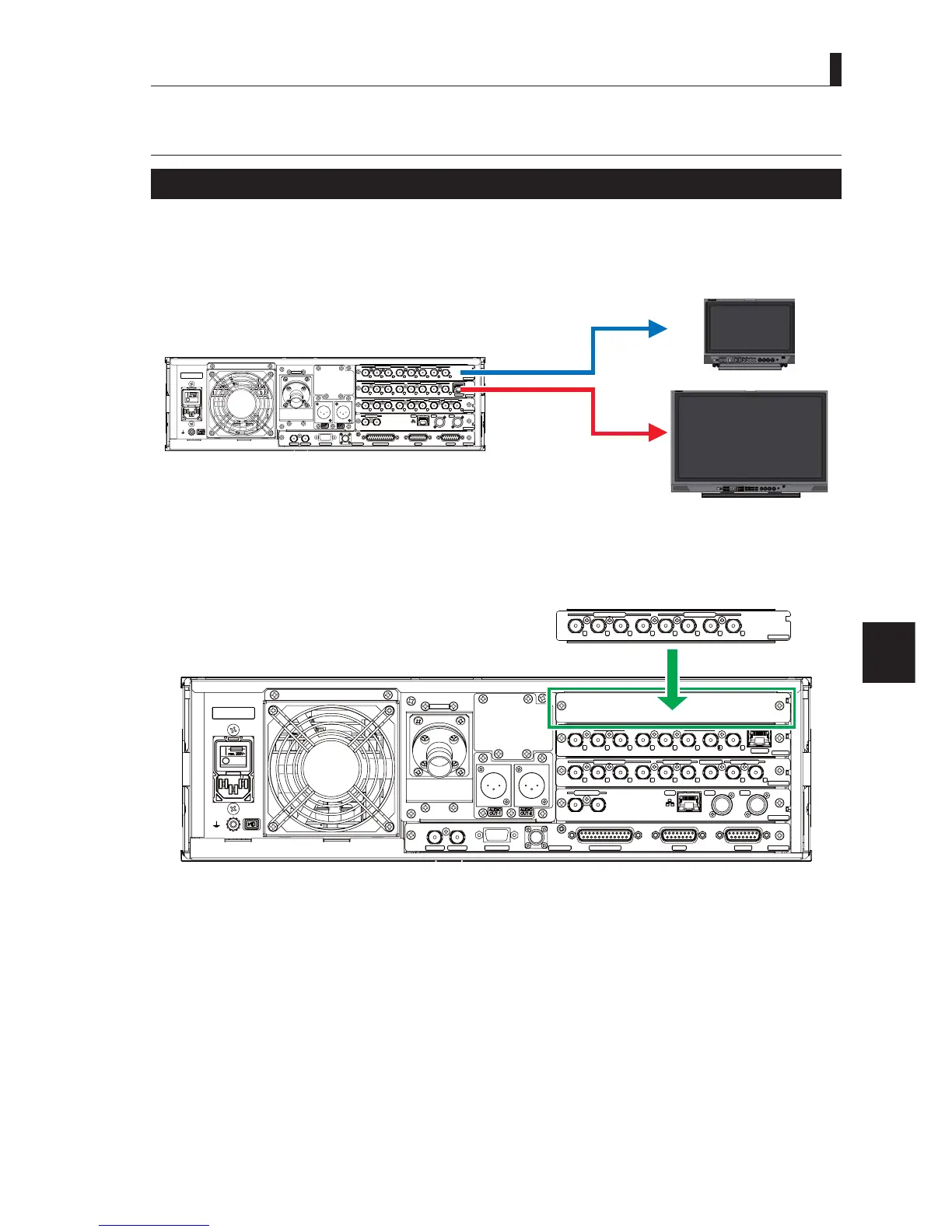

Install the front module [HD_VP] and the rear module [HD_OUT] in the CCU-430 for the implementation of the “HD SIMUL”
option.
* * *
