Ikegami CCU-430 - Video Phase Adjustment

174
UHK-430/CCU-430 1710 VER2 (E)
7.9 Simultaneous option
Video phase adjustment
This section explains the video phase adjustment during simultaneous operation.
,QSXWDQH[WHUQDOUHIHUHQFHV\QFKURQL]DWLRQVLJQDOWRWKH&&8$GMXVWWKHYLGHRSKDVHXVLQJDZDYHIRUPPRQLWRU


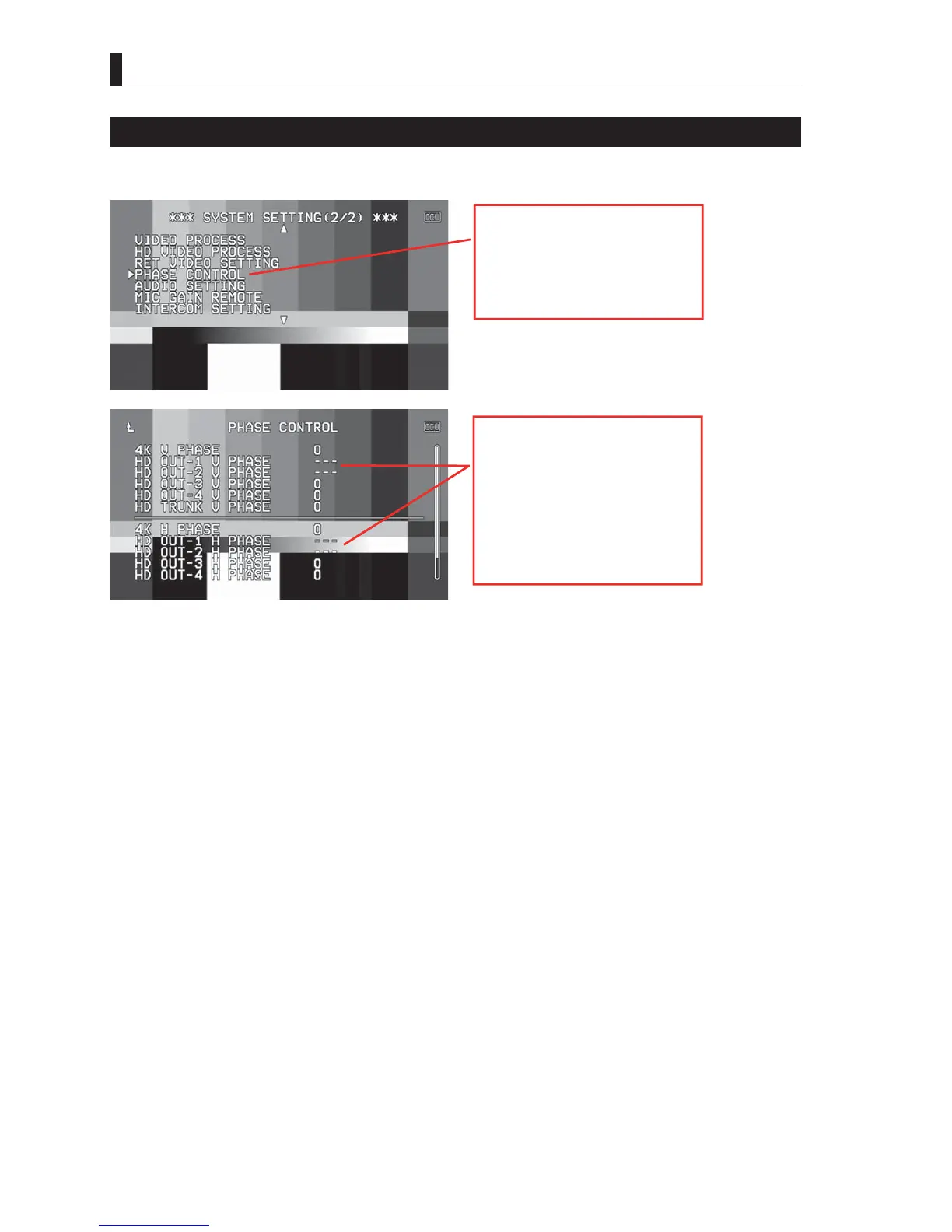

Open CCU MENU to select
“SYSTEM SETTING(2/2)” →
“PHASE CONTROL”.
The following items cannot be selected
during simultaneous operation.
HD OUT-1 V PHASE
HD OUT-2 V PHASE
HD OUT-1 H PHASE
HD OUT-2 H PHASE
4K V PHASE
Set the vertical phase of 4K video output from SDI OUTPUT-1/2.
HD OUT-3 V PHASE
Set the vertical phase of HD video output from SDI OUTPUT-3.
HD OUT-4 V PHASE
Set the vertical phase of HD video output from SDI OUTPUT-4.
4K H PHASE
6HWWKHKRUL]RQWDOSKDVHRI.YLGHRRXWSXWIURP6',287387
HD OUT-3 H PHASE
6HWWKHKRUL]RQWDOSKDVHRI+'YLGHRRXWSXWIURP6',287387
HD OUT-4 H PHASE
6HWWKHKRUL]RQWDOSKDVHRI+'YLGHRRXWSXWIURP6',287387
