7.9 Simultaneous option

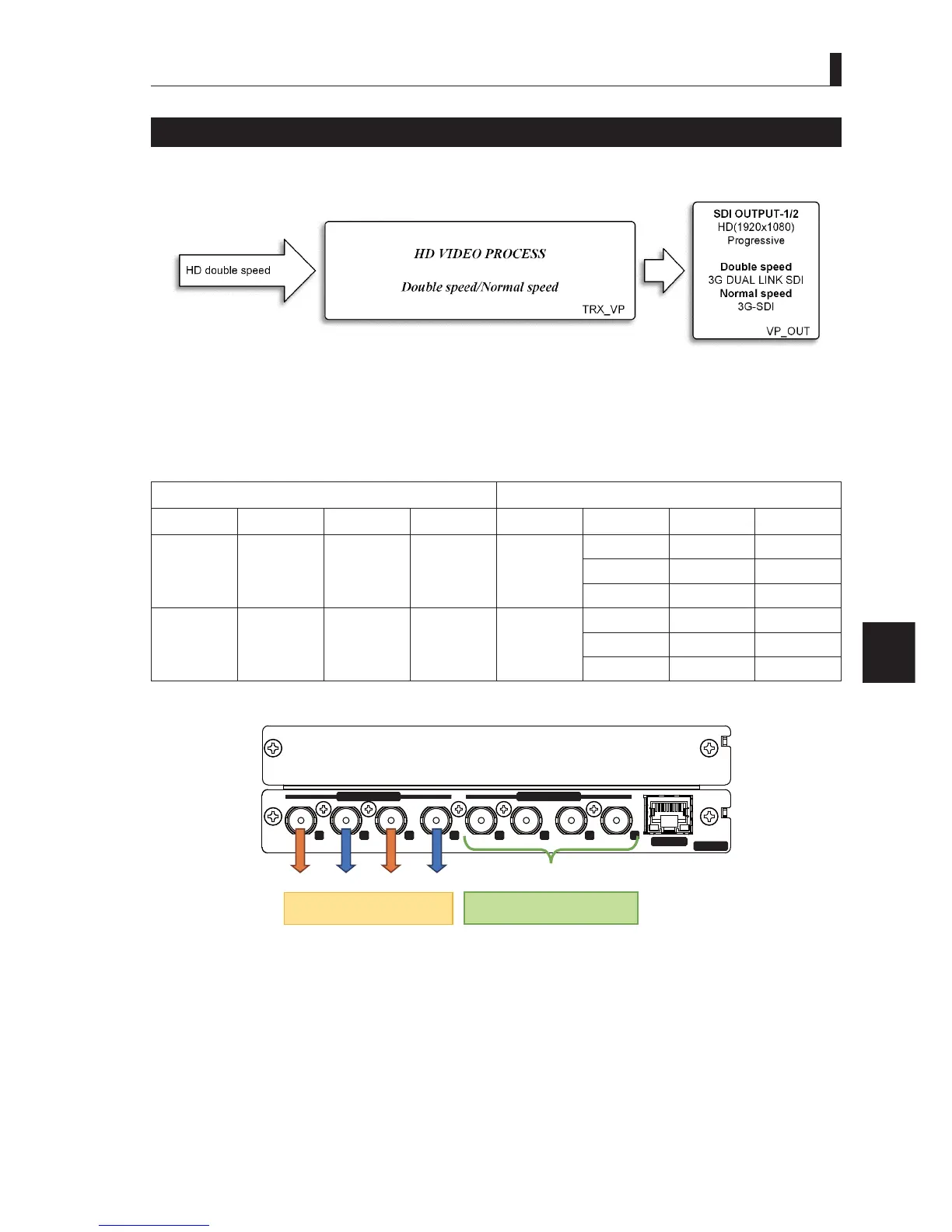

Simultaneous operation during HD double speed output
This camera system supports HD double speed output as standard.
Ɣ7KHIROORZLQJ¿JXUHVKRZVWKHYLGHRRXWSXWZKHQWKH³+'6,08/´RSWLRQLVQRWLPSOHPHQWHGLQWKH&&8
HD double s
p
eed behaviour for the standard confi
g
uration
The double speed output or normal speed output can be selected for the output of SDI OUTPUT-1 or SDI OUTPUT-2. The double
VSHHGRXWSXWIRUWKLVFDVHLV[3URJUHVVLYHVFDQ*6','8$//,1.IRUPDWDQGWKHQRUPDOVSHHGRXWSXWLV[
3URJUHVVLYHVFDQ*6',IRUPDW
Example of output assignment)
SDI OUTPUT-1 SDI OUTPUT-2
Image size Freq. Scan MAPPING Image size Freq. Scan MAPPING
1920x1080 119.88 Progressive EVS DL
Multicam
LSM
3G LVL-A
1920x1080
119.88 Progressive EVS DL
59.94 Progressive 3G LVL-A
59.94 Progressive 3G LVL-B
1920x1080 100.00 Progressive EVS DL
Multicam
LSM
3G LVL-A
1920x1080
100.00 Progressive EVS DL
50.00 Progressive 3G LVL-A
50.00 Progressive 3G LVL-B
* The compatible device with connection for the double speed output the EVS EVS PRODUCTION SERVER XT-3.
“EVS” and “XT-3” are registered trademarks of EVS, Belgium.
SDI-OUTPUT-2
VP_OUT
SDI-OUTPUT-1
GbE TRK
3
4
1
2
1
2
4
3
LINK-A LINK-A LINK-B LINK-B
Normal speed 3G-SDI
(Progressive)
Double speed 3G Dual Link SDI
(Progressive)
