SPECIFICATIONS
9
229
UHK-430/CCU-430 1710 VER2 (E)
9.3 External Connections
■

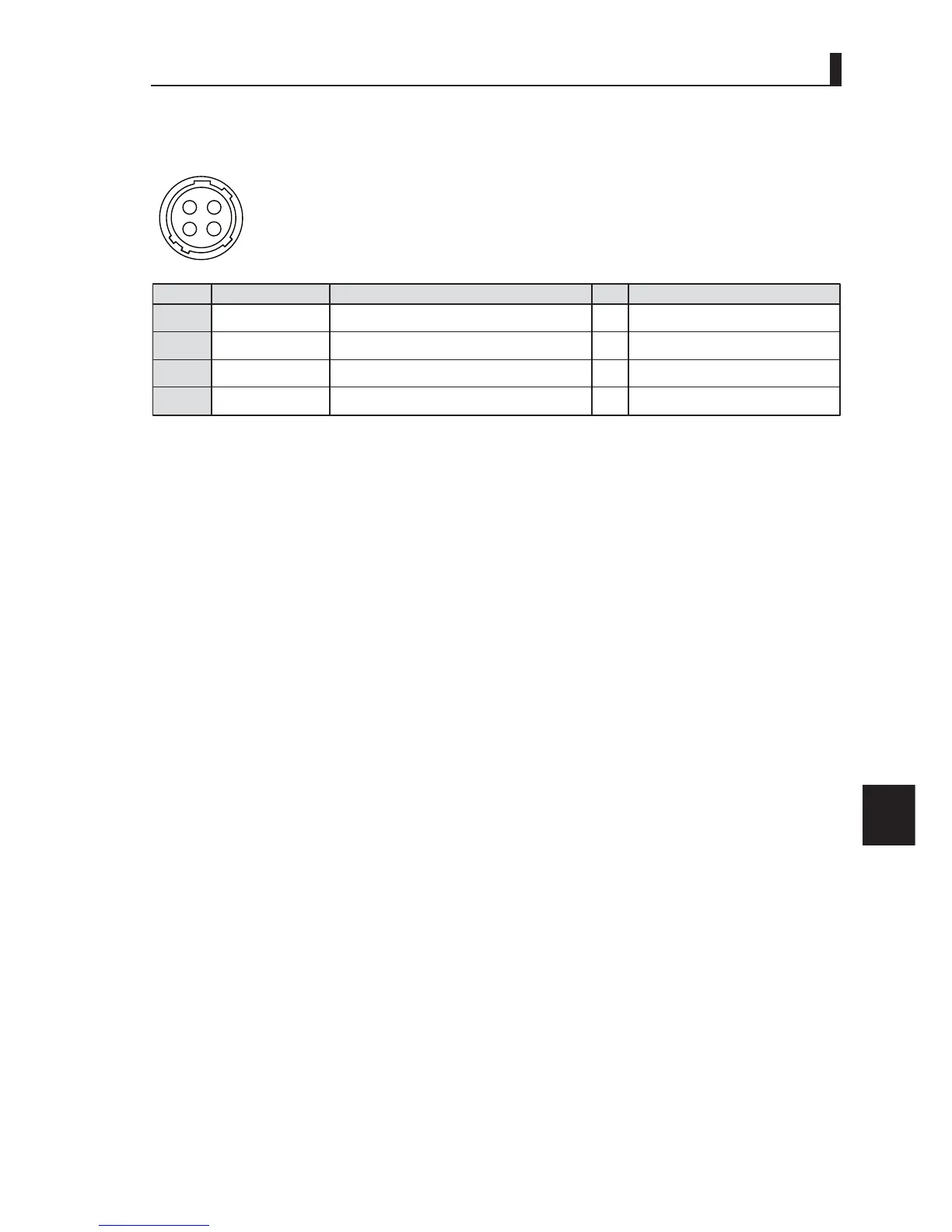

DC OUT connector
2XWSXWV'&9$PD[IRUJHQHUDOXVH
Pin No. Name Function I/O External Interface
○
○
○
○
1
2
3
4
DC +12V_RET
NC
NC
DC +12V
Ground for DC+12V power supply
DC +12V power supply
GND
OUT
2
3
4 1
Camera side : HR10A-7R-4SC(73)
Cable side : HR10A-7P-4PC(73) or equivalent
