Intel386™ EX EMBEDDED MICROPROCESSOR USER’S MANUAL
6-20

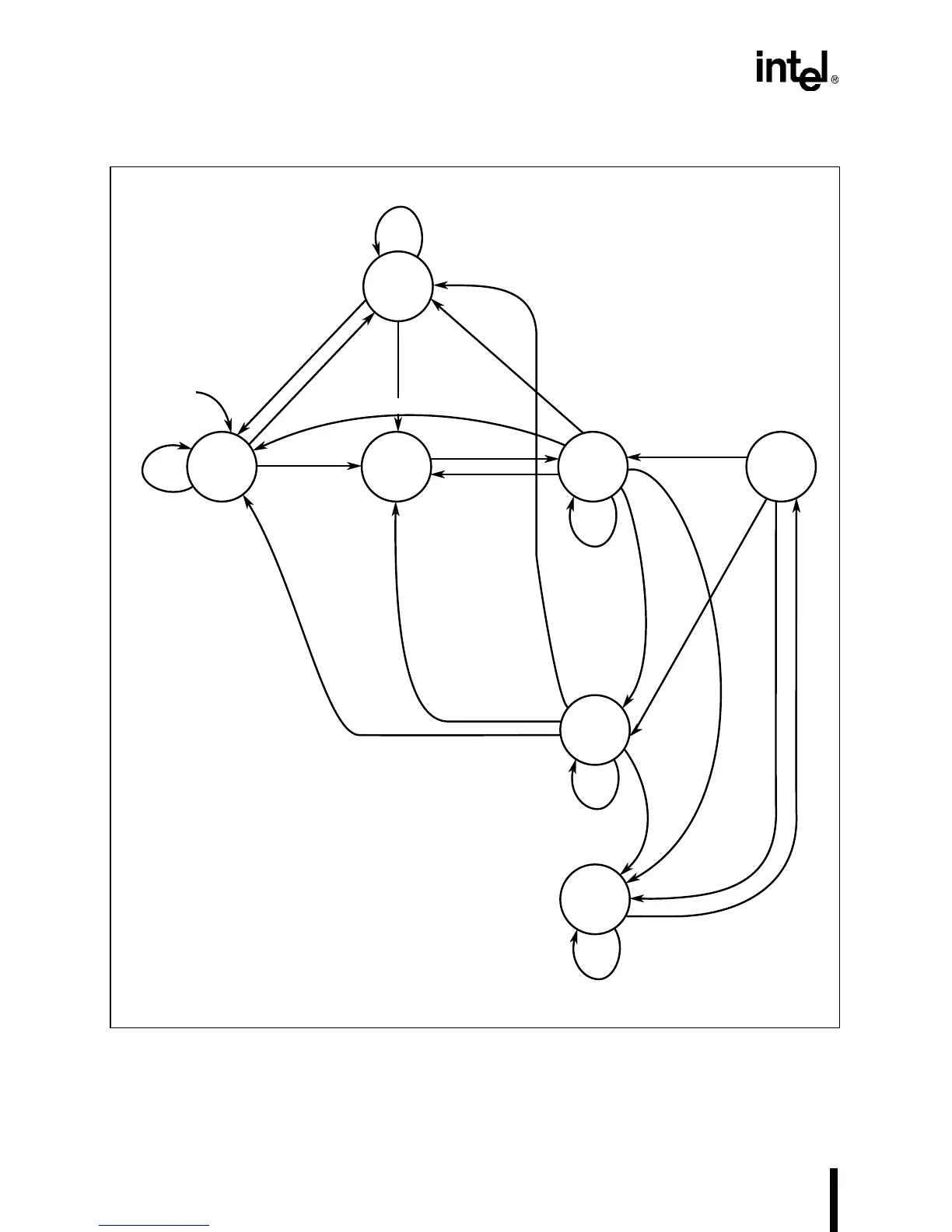

Figure 6-7. Complete Bus States (Including Pipelined Address)
A2376-02
HOLD Asserted
READY# Asserted •
HOLD Asserted
HOLD Negated •
Request Pending
READY# Asserted •
HOLD Asserted
HOLD Negated •
No Request
Reset
Asserted
HOLD Negated •
No Request
HOLD Asserted
READY# Negated •
NA# Negated
READY# Asserted •
HOLD Negated •
Request Pending
Always
NA# Negated
READY# Asserted •
HOLD Negated •
Request Pending
NA# Asserted •
(HOLD Asserted
+ No Request)
Request Pending •
HOLD Negated
READY# Asserted •
HOLD Negated •
No Request
(No Request + HOLD Asserted) •
NA# Asserted •
READY# Negated
READY# Negated •
(No Request +
HOLD Asserted)
READY# Negated
READY# Negated •
NA# Asserted •
HOLD Negated •
Request Pending
READY# Negated •
Request Pending •
HOLD Negated
READY# Asserted
T2P
T2i
T2
T1P
T1Ti
Th
Bus States:
T1—first clock of a non-pipelined bus cycle.

T2—subsequent clock of a bus cycle when NA# has
not been sampled active in the current bus cycle.

T2i—subsequent clocks of a bus cycle when NA# has
been sampled active in the current bus cycle and there
is not yet an internal bus request pending.

T2P—subsequent clocks of a bus cycle when NA# has
been sampled active in the current bus cycle and there
is an internal bus request pending.

T1P—first clock of a pipelined bus cycle.

Ti—idle state.

Th—hold acknowledge state.
R
E
A
D
Y
#
A
s
s
e
r
t
e
d
•
H
O
L
D
N
e
g
a
t
e
d
•
N
o
R
e
q
u
e
s
t
NA# Asserted •
HOLD Negated •
Request Pending
