Intel 386 User Manual

9-11
INTERRUPT CONTROL UNIT

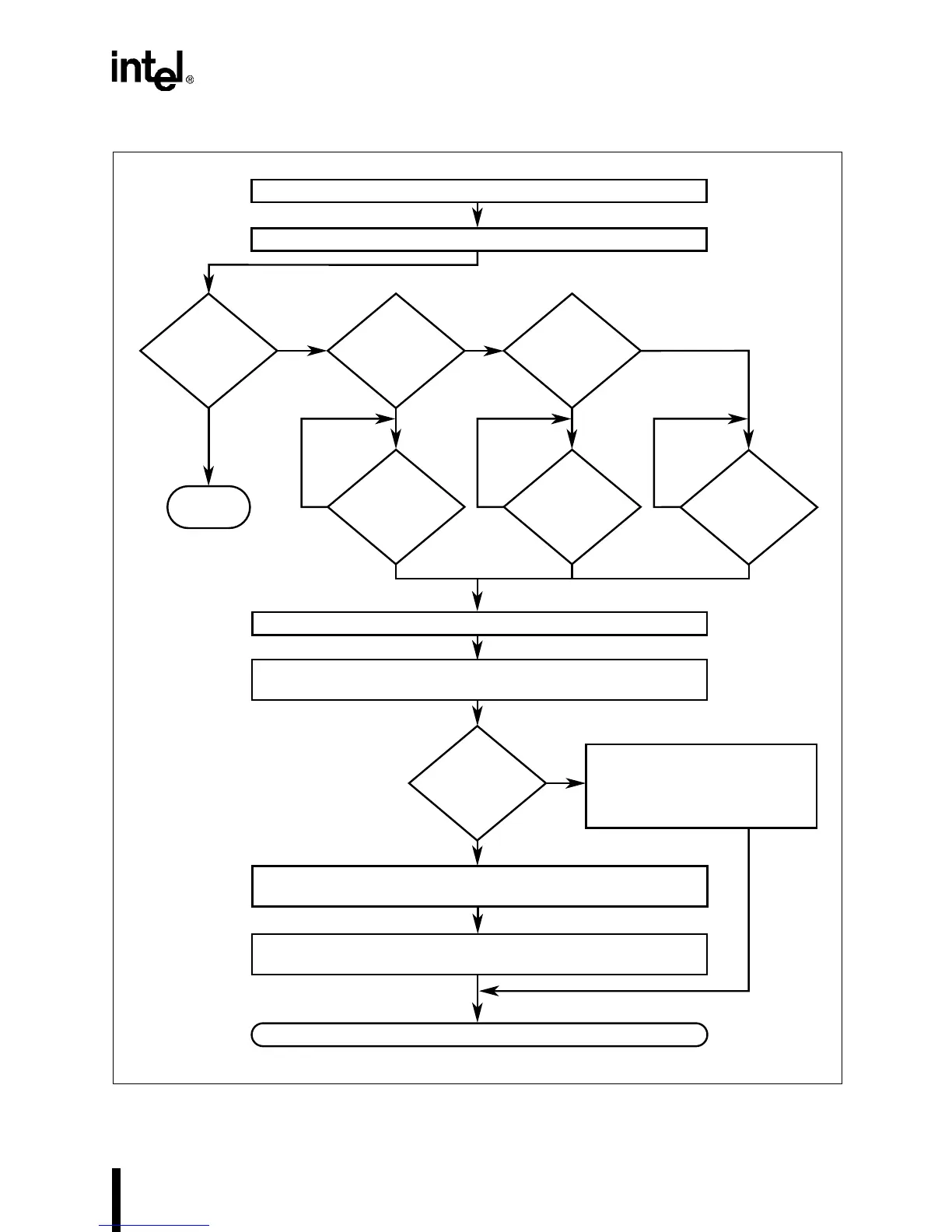

Figure 9-3. Interrupt Process – Master Request from Non-slave Source
A2427-01
Master receives an interrupt request. (From a non-slave source.)
Master sets the request's pending bit.
Is
request
enabled?
Is
special
mask mode
enabled?

Is master
operating in
special-fully
nested
mode?
(operating in
fully nested
mode)
Is
the
in-service
bit for this
request
set?
Is
request
higher level
than any set
in-service
bits?
Is
request
equal or higher
than any set
in-service
bits?
Master sends request to CPU. CPU initiates interrupt acknowledge cycle.
Master clears request's pending bit, sets its in-service bit, and puts its
interrupt vector number on the bus.
An interrupt return instruction is issued, ending the interrupt process.
Is
master in
AEOI
mode?
Master clears its in-service bit. The
CPU uses its operating mode and the
interrupt vector number to find the
interrupt service routine's address.
CPU begins processing interrupt.
The interrupt service routine sends an EOI command, causing the master
to clear its in-service bit.
End
Yes No No
YesYesNo
Yes No No
YesYesNo
Yes
No
The CPU uses its operating mode and the interrupt vector number to find
the interrupt service routine's address. CPU begins processing interrupt.

Intel 386 Specifications

General

Architecture	x86
Clock Speed	12 MHz to 40 MHz
Transistor Count	275, 000
Data Bus Width	32-bit
Address Bus Width	32-bit
Instruction Set	x86
Introduced	1985
Maximum Memory	4 GB
Operating Modes	Real mode, Protected mode, Virtual 8086 mode
MMU	Yes
Voltage	5V
Model	Intel 386
Package	PGA
Process	1.5 μm to 1 μm
