4.8.3 Other GMCH Reference Voltage and Analog Power Delivery
4.8.3.1 GMCH GTLVREF
For GMCH, the GTLREF generation circuit has been broken down into three separate voltage
references: host data reference voltage (HDVREF[2:0]), host address reference voltage (HAVREF)
and host common clock reference voltage (HCCVREF). Maximum length from pin to voltage
divider for each reference voltage shall be less than 0.5 inches. Ten-mil wide traces are
recommended. GMCH VREF may be maintained as individual voltage dividers as shown in
Figure 55, Figure 56, and Figure 57.

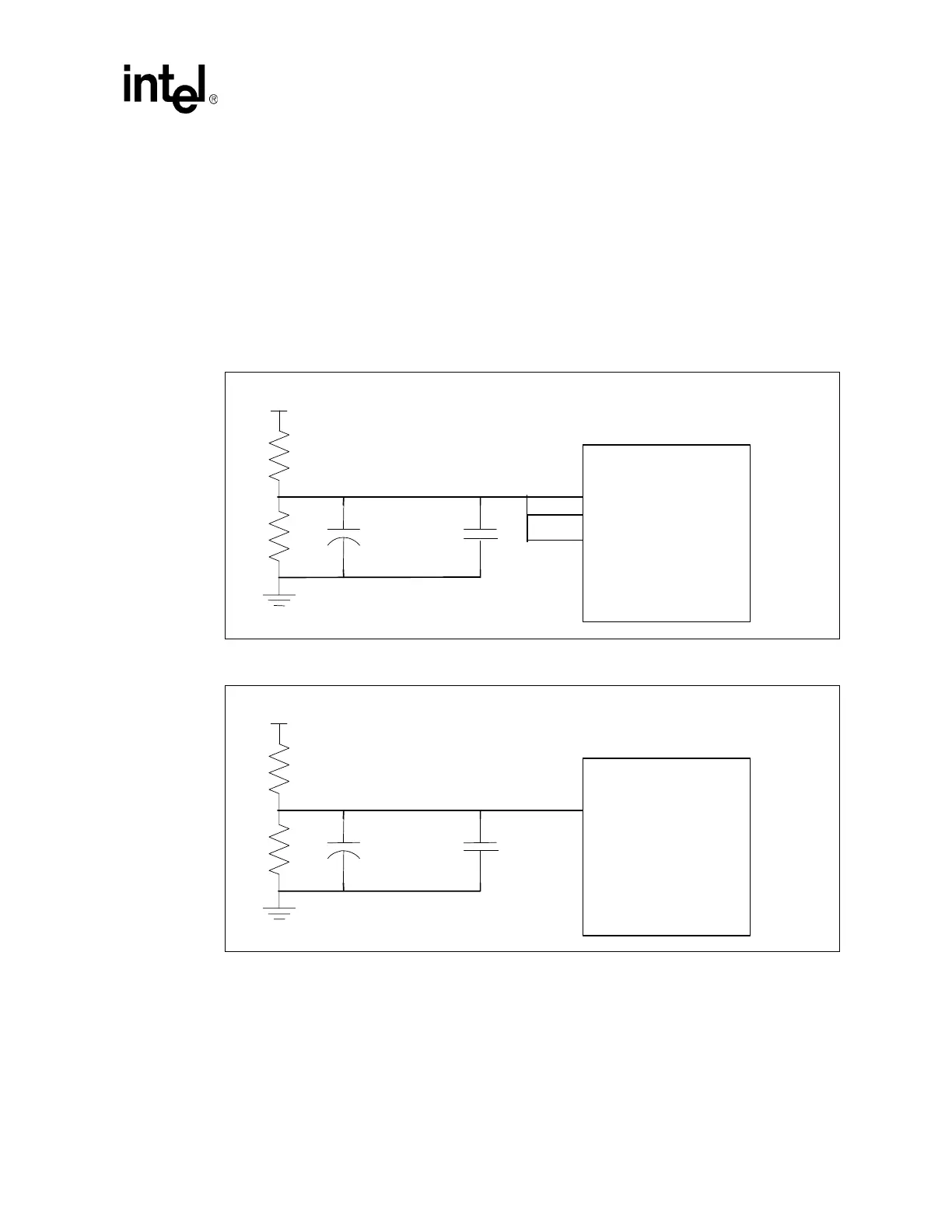

Figure 55. GMCH HDVREF[2:0] Reference Voltage Generation Circuit
R1
49.9
1%
R2
100
1%
C1
1uF
+VCCP
K21
J21
J17
Intel
®
855GME
HDVREF0
HDVREF1
HDVREF2
0.1uF
GMCH_HDVREF
C2
Figure 56. GMCH HAVREF Reference Voltage Generation Circuit
R1
49.9
1%
R2
100
1%
C1
1uF
+VCCP
Y22
Intel
®
855GME
Chipset
HAVREF
C3
0.1uF
GMCH_HAVREF
