Intel
®
855GME Chipset and Intel
®
6300ESB ICH Embedded Platform Design Guide
Platform Clock Routing Guidelines
11.2.5 CLK14 Clock Group
The 14 MHz clocks are series terminated and routed point-to-point on the motherboard. A single
clock output is shared between the two loads. These clocks are length tuned to each other but are
not synchronous with any other clocks. Figure 142 depicts the CLK14 clock group topology.
Table 110 presents the CLK14 clock group routing constraints.

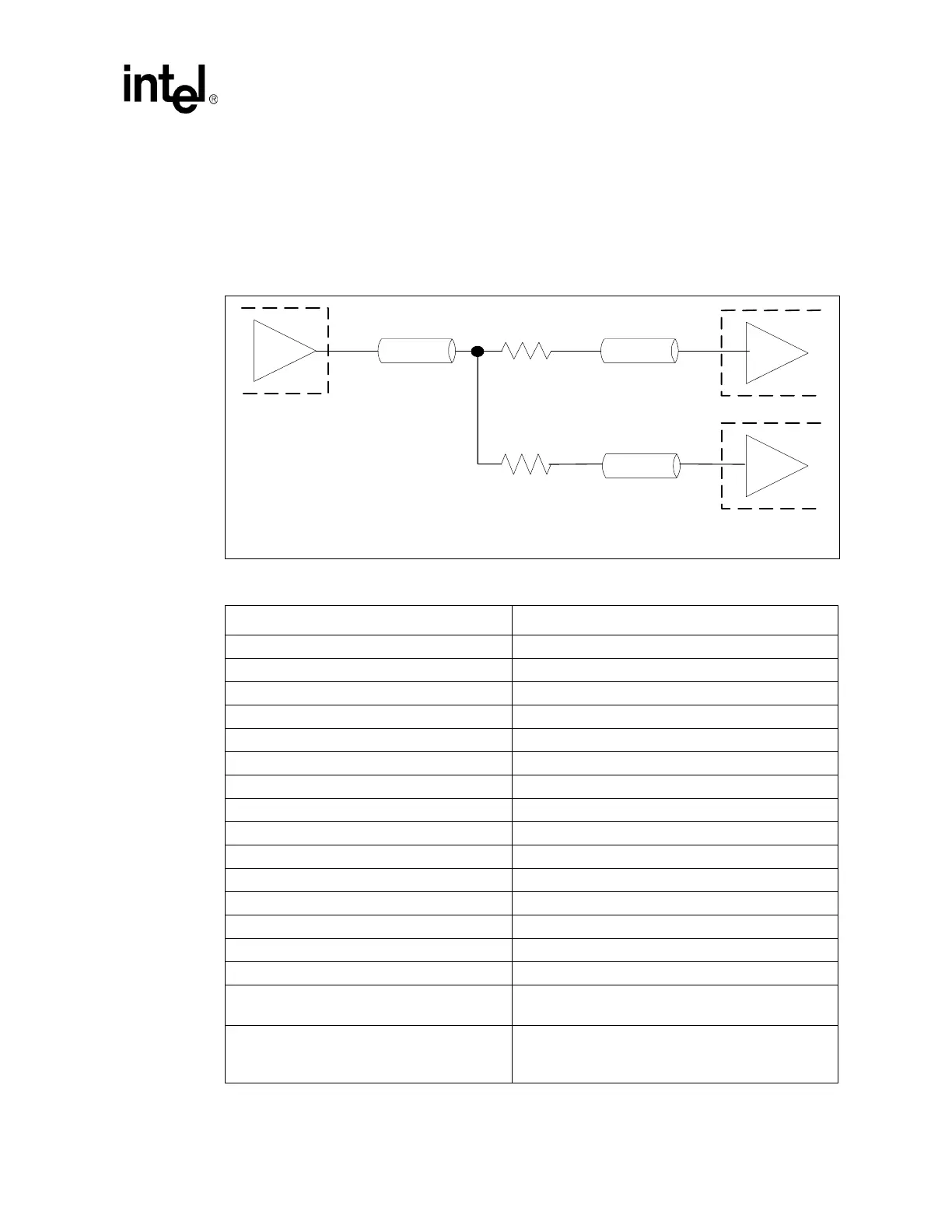

Figure 142. CLK14 Clock Group Topology
Table 110. CLK14 Clock Group Routing Constraints
Parameter Definition
Class Name CLK14
Class Type Individual Nets
Topology Dual Series Terminated Point to Point
Reference Plane Ground Referenced
Single Ended Trace Impedance (Zo) 55
Ω ±15%
Nominal Inner Layer Trace Width 4.0 mils
Nominal Outer Layer Trace Width 5.0 mils (pin escapes only)
Minimum Spacing (See exceptions below.) 20 mils
Serpentine Spacing 20 mils
Maximum Via Count 4 (per driver/receiver path)
Series Termination Resistor Value 33
Ω ±5%
Trace Length Limits – L1 Up to 500 mils
Trace Length Limits – L2A, L2B 2.0” to 8.5”
Total Length Range – L1 + L2A & L1 + L2B 2.0” to 9.0”
Length Matching Required Yes (Pin to Pin)
Clock to Clock Length Matching
±500 mils
CLK14A to CLK14B
Breakout Region Exceptions
5 mil trace with 5 mil space on outers
4 mil trace with 4 mil space in inners
Maximum breakout length is 0.3”
L1
Rs
CK409 Intel® 6300ESB, Audio
L2A
SIO, Intel® 6300ESB _UART
L2B
Rs
