The recommended layout of the Intel Pentium M/Celeron M processor COMP[3:0] resistors is
illustrated in Figure 31. To avoid interaction with Intel Pentium M/Celeron M processor FSB
routing on internal layers and VCCA power delivery on the primary side, Layer 1, COMP[1:0]
resistors are placed on the secondary side. Ground connections to the COMP[1:0] resistors use a
small ground flood on the secondary side layer and connect only with a single GND via to stitch
the GND planes. The compact layout as shown in Figure 31 shall be used to avoid excessive
perforation of the V
CCP
plane power delivery. Figure 31 illustrates how a 27.4 Ω resistor connects
with an ~18 mil wide (Zo = 27.4 Ω) and 160 mil long trace to COMP0. Necking down to 14 mils is
allowed for a short length to pass in between the dog bones. The 54.9 Ω resistor connects with a
regular 5 mil wide (Zo = 55 Ω) and 267 mil long trace to COMP1. Placement of COMP[1:0] on the
primary side is possible as well. An alternative placement implementation is shown in Figure 32.
To minimize motherboard space usage and produce a robust connection, the COMP[3:2] resistors
are also placed on the secondary side (Figure 31, right side). A 27.4 Ω resistor connects with an
18 mil wide (Zo = 27.4 Ω) and 260 mil long trace to COMP2. Necking down to 14 mils is allowed
for a short length to pass in between the dog bones. Notice that the COMP2 (Figure 31, left side)
dog bone trace connection on the primary side is also widened to 14 mils to meet the Zo = 27.4 Ω
characteristic impedance target. The right side of Figure 31 also illustrates how the 54.9 Ω ±1%
resistor connects with a regular 5 mil wide (Zo = 55 Ω) and 100 mil long trace to COMP3. The
ground connection of COMP[3:2] is done with a small flood plane on the secondary side that
connects to the GND vias of pins AA1 and Y2 of the Intel Pentium M/Celeron M processor
pin-map. This is done to avoid via interaction with the Intel Pentium M/Celeron M processor FSB
routing on Layer 3 and Layer 6.
For COMP2 and COMP0, it is extremely important that 18 mil wide dog bone connections on the
primary side and 18-mil wide traces on the secondary sides be used to connect the signals to
compensation resistors on the secondary side, as shown in Figure 33. The 18-mil wide dog bones
and traces are used to achieve the Zo = 27.4 Ω target to ensure proper operation of the Intel
Pentium M/Celeron M processor FSB. Refer to Figure 29 for more details.

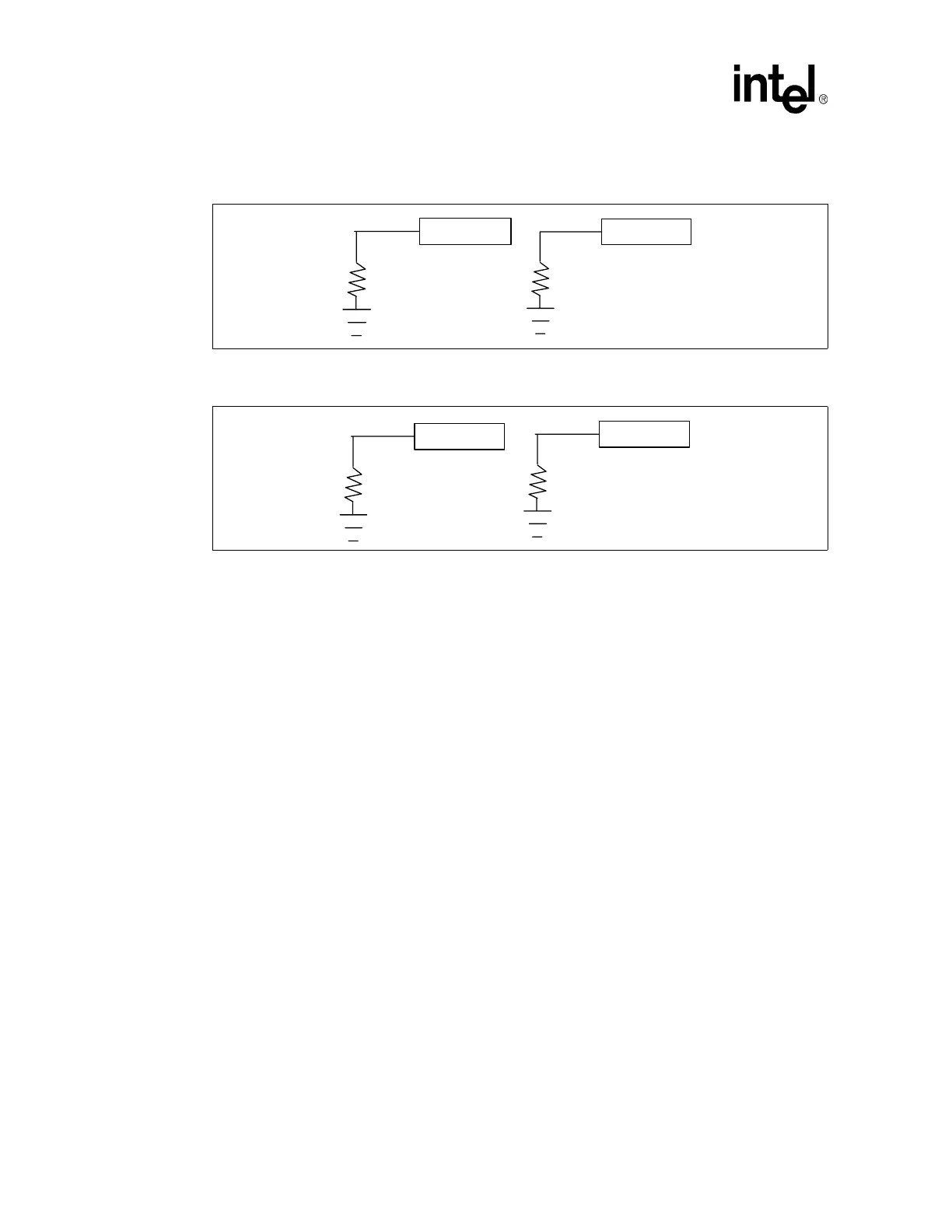

Figure 29. Intel
®
Pentium
®
M/Celeron
®
M Processor COMP[2] and COMP[0]
Resistive Compensation
Figure 30. Intel
®
Pentium
®
M/Celeron
®
M ProcessorCOMP[3] and COMP[1]
Resistive Compensation
27.4
Ω
±1%
COMP[0]
27.4
Ω
±1%
COMP[2]
54.9
Ω ±1%
COMP[3]
54.9
Ω ±1%
COMP[1]
