Chapter 7 — Commands
ESim for the PC4 and PF8 Printer Programmer’s Reference Manual 69

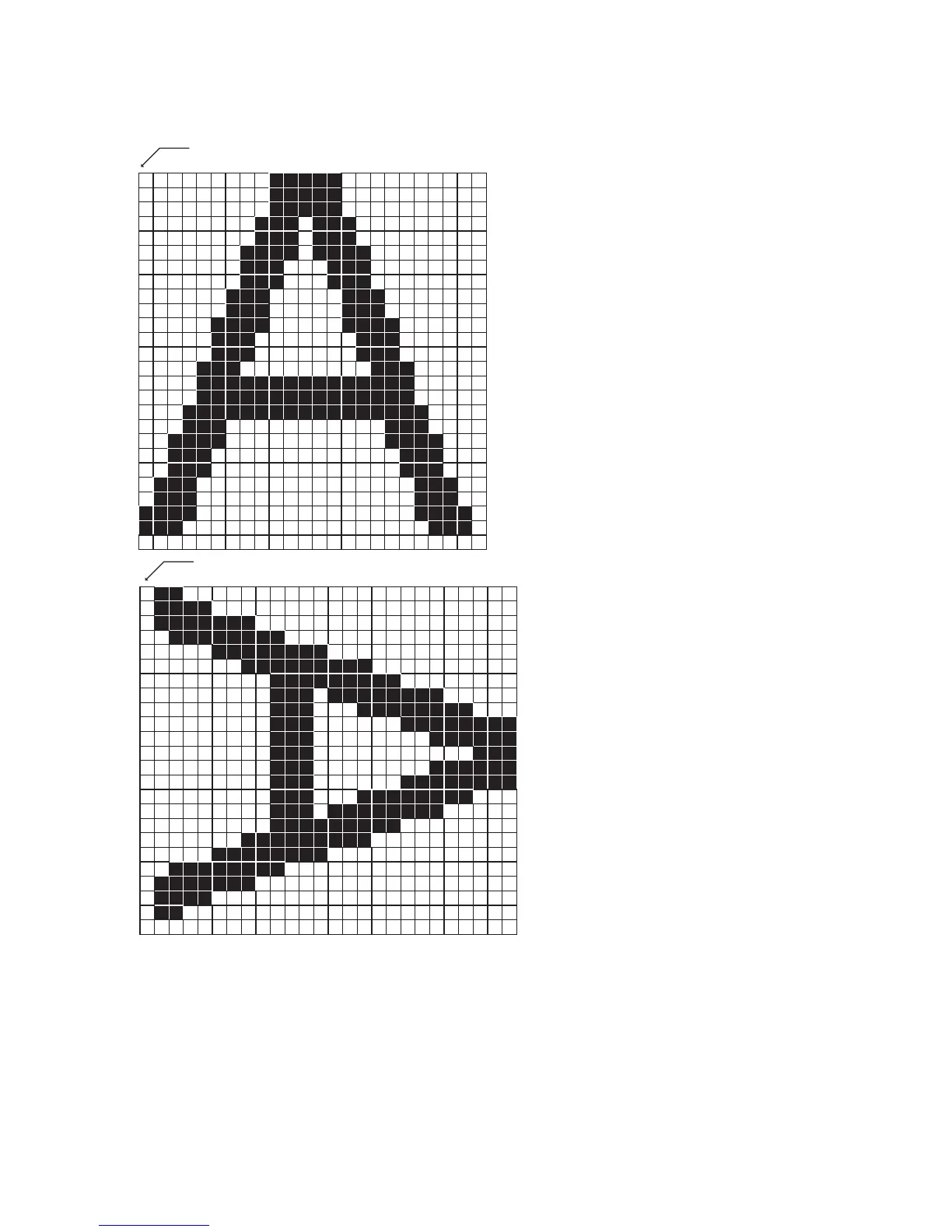

These illustrations show how a character in 0° and 90° rotation is downloaded to the printer.
Starting Point
Line 1: 00000000 01111100 00000000 = 00 7C 00
Line 2: 00000000 01111100 00000000 = 00 7C 00
Line 3: 00000000 01111100 00000000 = 00 7C 00
Line 4: 00000000 11111110 00000000 = 00 7E 00
.....
.....
Line 1: 01 10000000 00000000 00000000 = 01 80 00 00
Line 2: 01 11100000 00000000 00000000 = 01 E0 00 00
Line 3: 01 11111100 00000000 00000000 = 01 FC 00 00
Line 4: 00 11111111 00000000 00000000 = 01 FF 00 00
.....
.....
Starting Point
