Executing the inspection
Interpretation of the inclination protocol
114
Interpretation of the inclination protocol

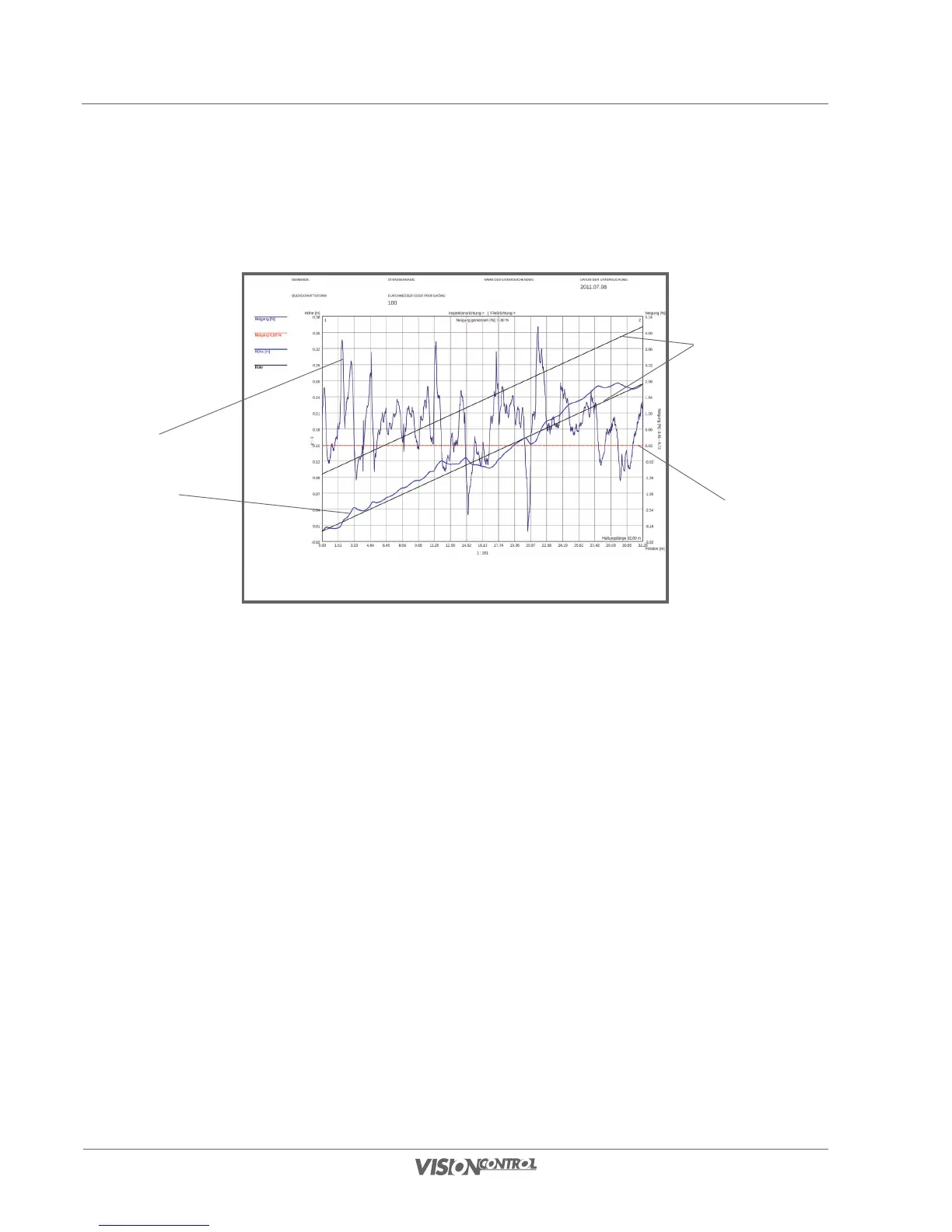

Example of a inclination protocol.
Inclination [%]:
Inclination readings of the crawler in percent. The curve shows irregularities within the pipe which are typically caused by joints packings or debris..
Inclination 0,00 %:
Shows the zero line of the inclination.
Altitude [m]:
Shows changes of the altitude of the pipe. The calculation of the altitude curve is based on the inclination data as well as the pipe diameter and
altitudes at the start and end manhole.
Pipe:
Depending on the the section property Pipe Diameter and the calculated altitude difference both lines show a schematic of the pipe. The
distance between both lines always matches the pipe diameter.
Inclination chart
Pipe
Inclination 0%
Altitude
