iPEK VISIONCONTROL VC200 - Measure Water Level

Measuring Functions
Measure water level
129
Measure water level

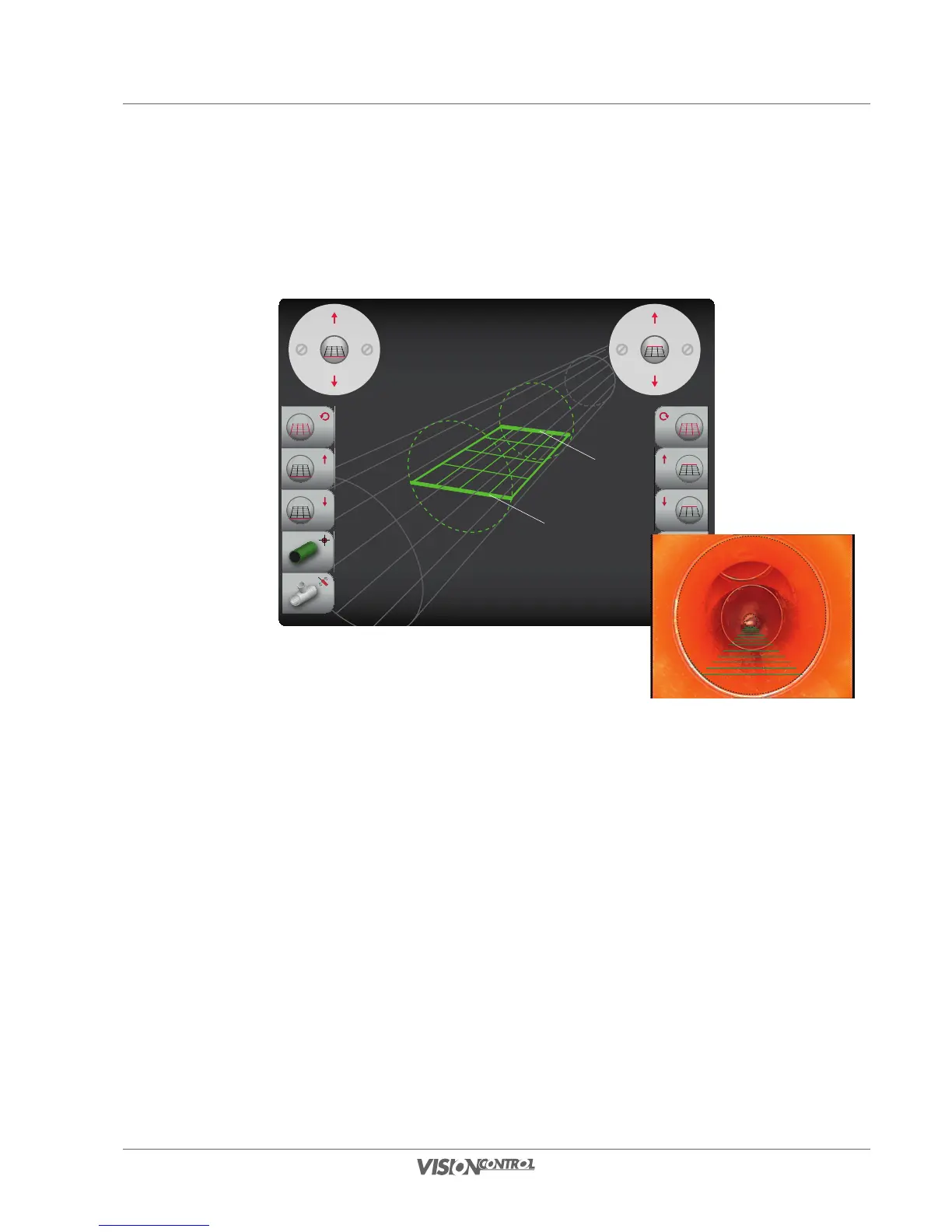

This function allows you to measure the water level in the pipe.
WATER LEVEL:
Start: 12.75mm
End: 12.10mm
Rotation: 0.00°
Measuring line 1
Measuring line 2
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
• Set the height of the first measuring line using the left joystick or the L2 /L3 buttons to the water level height (1).
• Rotate measuring line 1 congruently with the water level line using the L1/R1 buttons.
• Set the height of the first measuring line using the right joystick or the R2 /R3 buttons to the water level height (2).
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
WATER LEVEL:
Start: 12.75mm
End: 12.10mm
Rotation: 0.00°
