Measuring Functions
Reference real pipe
127
Reference real pipe
You must pre-calibrate the pipe to be measured or reference the measuring software to this pipe as a basis for the following measurements. This
presetting is the basic condition for all further measurements. Ensure as exact an alignment as possible here, as all further measurements depend
on this setting.
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°

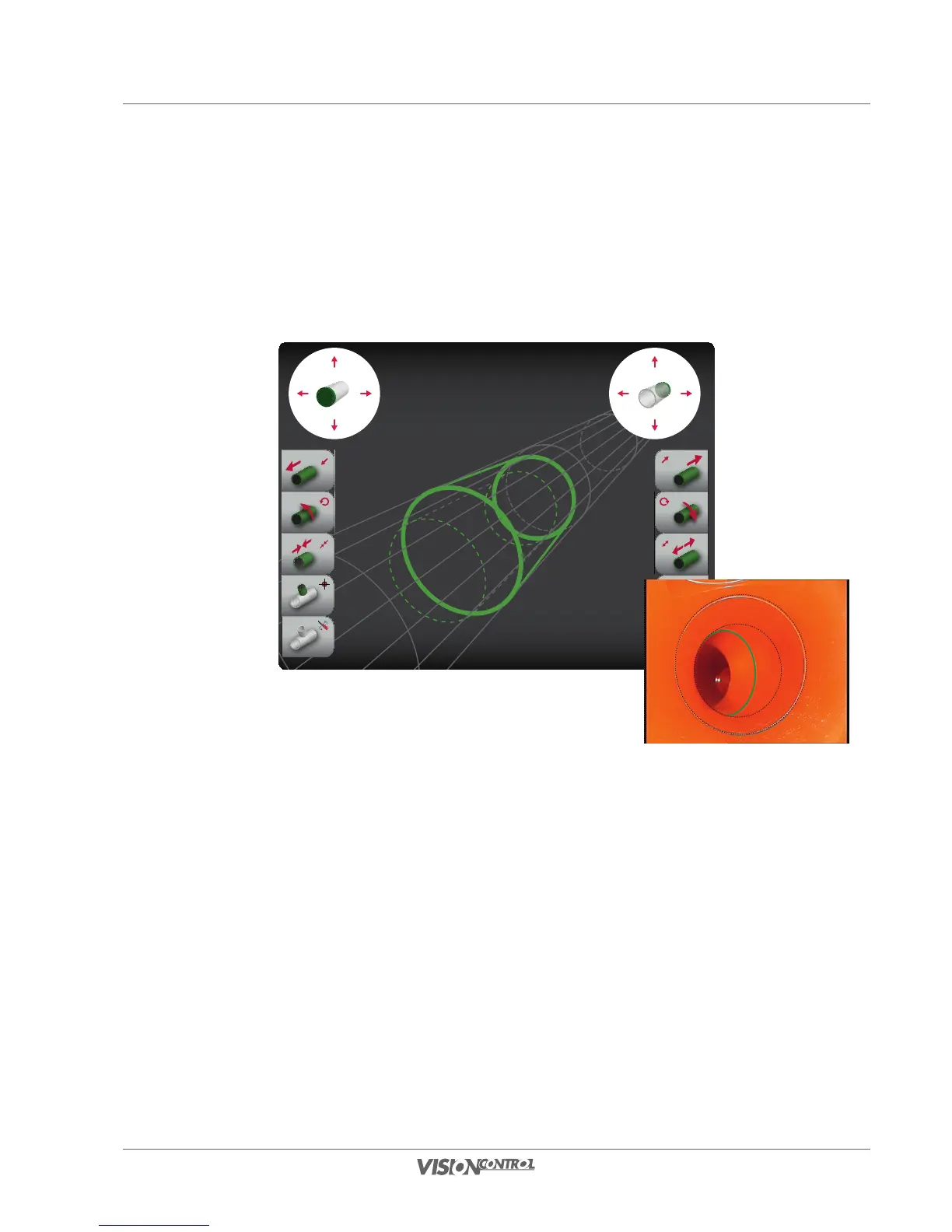

• Center the first setting line using the left joystick (1)
• Scale and shift the overall position of the first setting line with the L1/R1 buttons (2)
until the setting line circle is congruent with the first pipe coupling.
• Use the L3/R3 buttons to set the distance between the first setting line and the second setting line (3).
This variable describes the length of the pipe section.
• Center the first setting line using the right joystick (4).
Carry out the work steps (1)/(2) and (3)/(4) alternately iterating in order to position all setting lines precisely congruently.
• Use the L2/R2 buttons to set the rotation of the pipe or the rotation angle of the measuring object.
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
PIPE BEND:
Radius: 51.00mm
Angle: 45.00°
Rotation: 90.00°
