Measuring Functions
Overview of the Measuring Functions
118

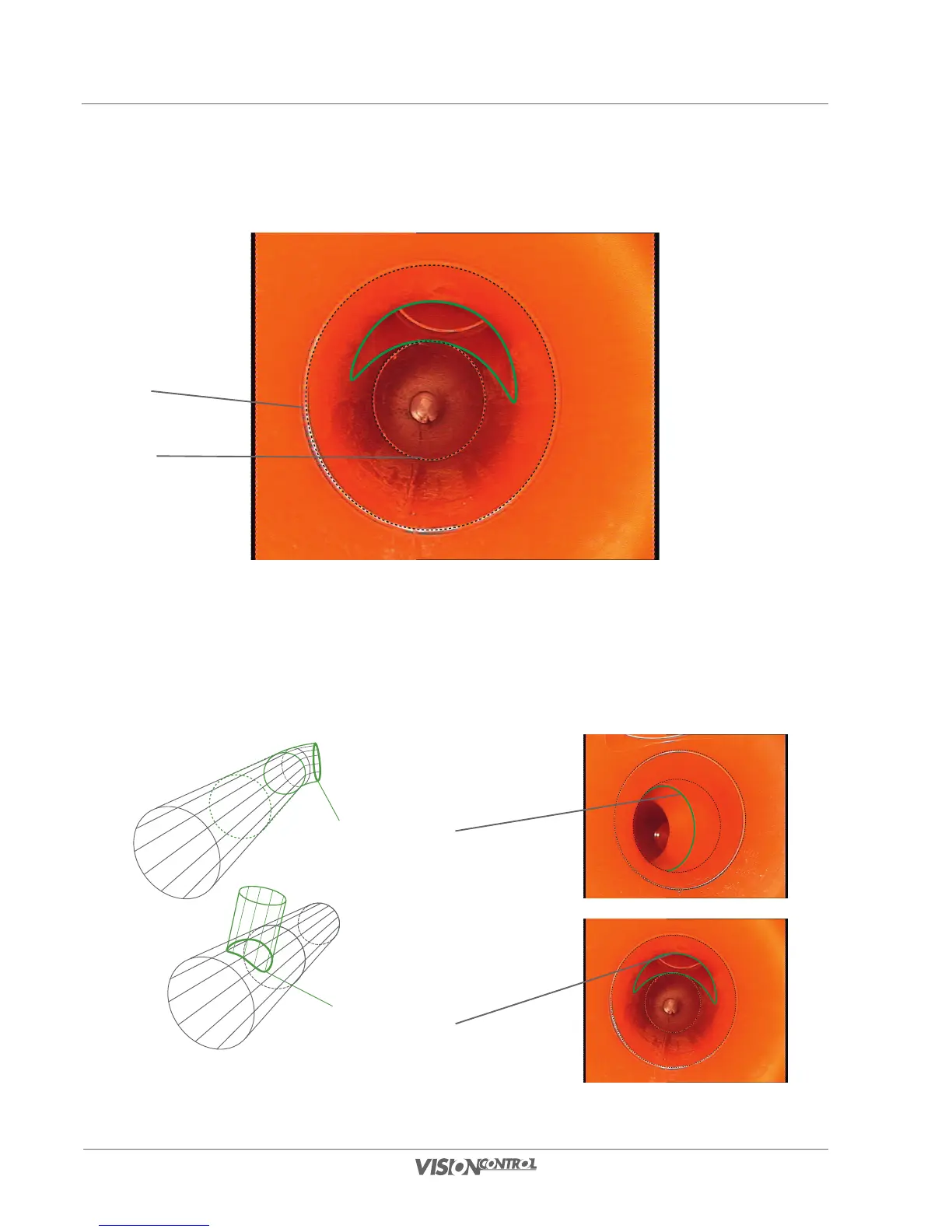

Real view of the virtual settings lines in the video view
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
PIPE BRANCH:
Diameter: 100.00mm
Angle: 45.00°
Rotation: 7.00°
Distance: 20.00mm
Set measuring lines scheme
If the real pipe has been referenced, the measuring lines for the measuring functions can now be positioned. The relevant measuring lines are
supplemented and positioned for the setting lines of the real pipe for this. The following schemes show the individual measuring lines of the
measuring functions.
Measuring line: Pipe Bend
Measuring line: Pipe Branch
Measuring lines: Water Level
Measuring lines: Pipe Wall Object
Measuring lines: Cross Section Object
Setting line 1
Virtual Pipe
Video Real view
Setting line 2
Virtual Pipe
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
PIPE BEND:
Radius: 51.00mm
Angle: 45.00°
Rotation: 90.00°
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
PIPE BRANCH:
Diameter: 100.00mm
Angle: 45.00°
Rotation: 7.00°
Distance: 20.00mm
