Measuring Functions
Overview of the Measuring Functions
119
Measuring line: Pipe Bend
Measuring line: Pipe Branch

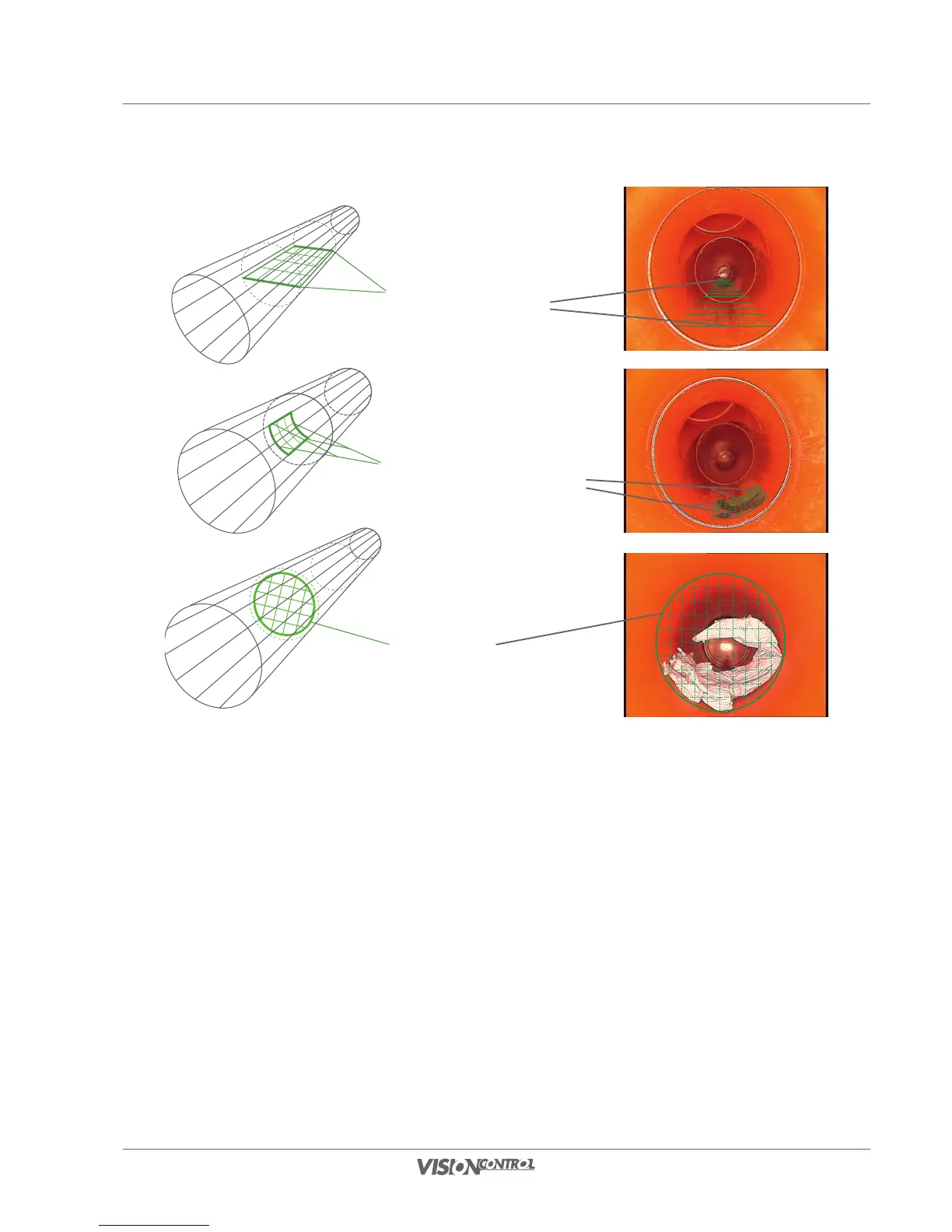

Measuring lines: Water Level
Measuring lines: Pipe Wall Object
Measuring lines: Cross Section Object
All measuring and setting lines can be set both using the joysticks and via the L1-L5 and R1-R5 buttons.
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
WATER LEVEL:
Start: 12.75mm
End: 12.10mm
Rotation: 0.00°
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
PIPE WALL OBJECT:
Grid Unit: 5.00mm
Distance: 3.46mm
Rotation: 188.00°
Length: 15.00mm
Arc length: 15.00mm
REAL PIPE:
Diameter: 150.00mm
Length: 105.50mm
Rotation: 2.80°
CROSS SECTION OBJECT:
Grid Unit: 5.00mm
Distance: 7.00mm
Rotation: 15.00°
Video Real view
