3─42
3
3.5 BASIC OPERATIONS
y
y y
3.5.8 Move Own Ship’s Display Position [OFF CENT]
The own ship’s position can be moved from the display center to any position within 66% of the display radius.
This function is convenient for observing a wide coverage in any direction.
Note: This function is not available on the 96 NM range.
Procedures 1 Press [OFF CENT] key.
The cross cursor mark + will appear at the own ship’s position on the radar display.
* Button
20
on the radar display on page 2-7 is also available to activate OFF Center.
2 Move the cross cursor mark + (own ship’s display position) to a
desired position by using the trackball.
While the cross cursor mark is moving, the own ship’s display position moves following
the cross cursor mark.
When it moves to a position outside 66% of the display radius, the center position is
limited to a position within 66% of the display radius.
3 Press [ENT] key.
The own ship’s display position will be fixed to the cross cursor mark + .
Returning Own Ship’s Position to the Center
Procedures 1 Press [OFF CENT] key for 2 seconds.
Note: Close the menu before using this function. While the menu is open, the function cannot be
used.
* You can keep pressing button
20
on the radar display for two seconds on page 2-7 to return the own ship
position to the center.
HL
HL

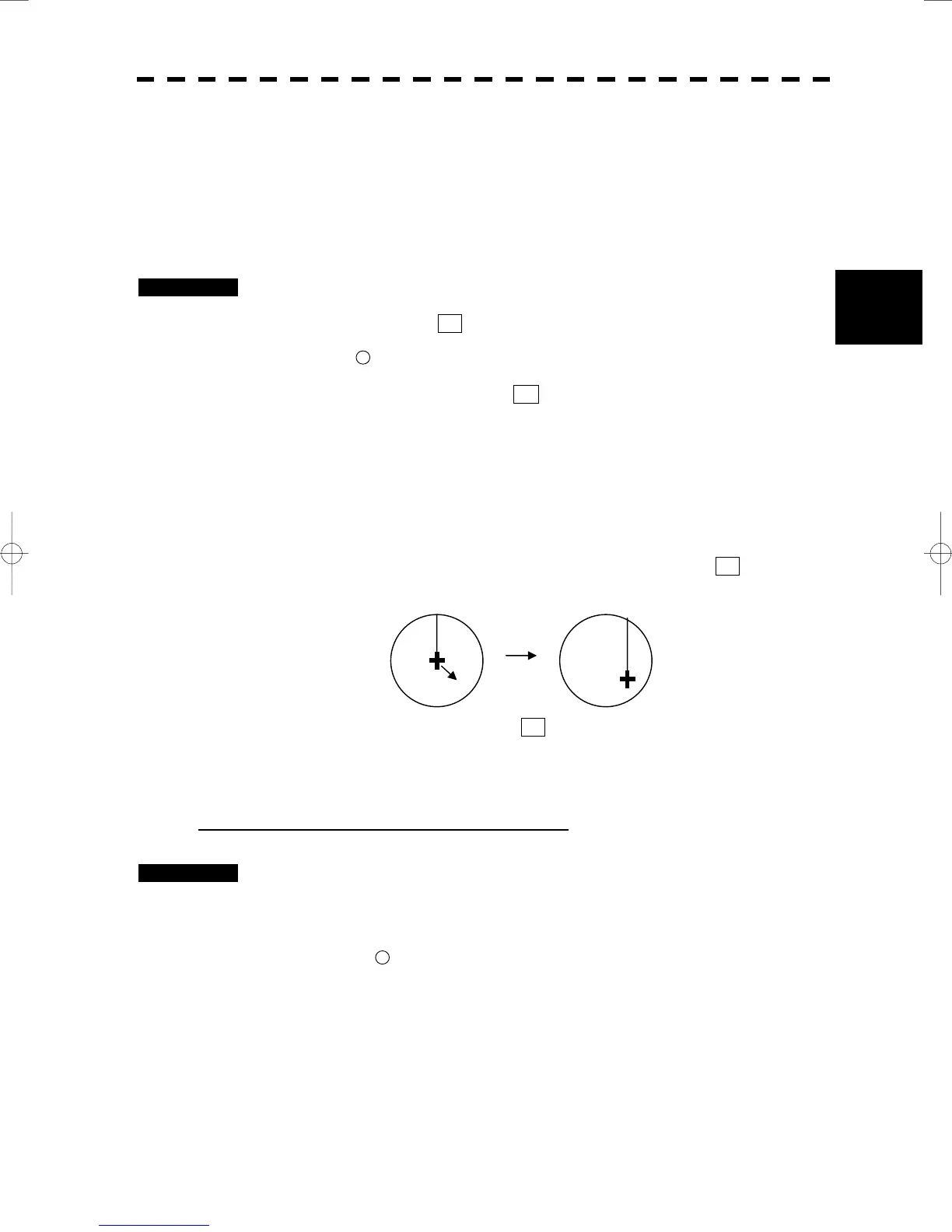

Move the cross cursor mark +
to a desired position.
Press [ENT] key.
The own ship’s display position
will be fixed.
