3.7 DISPLAY CHARTS

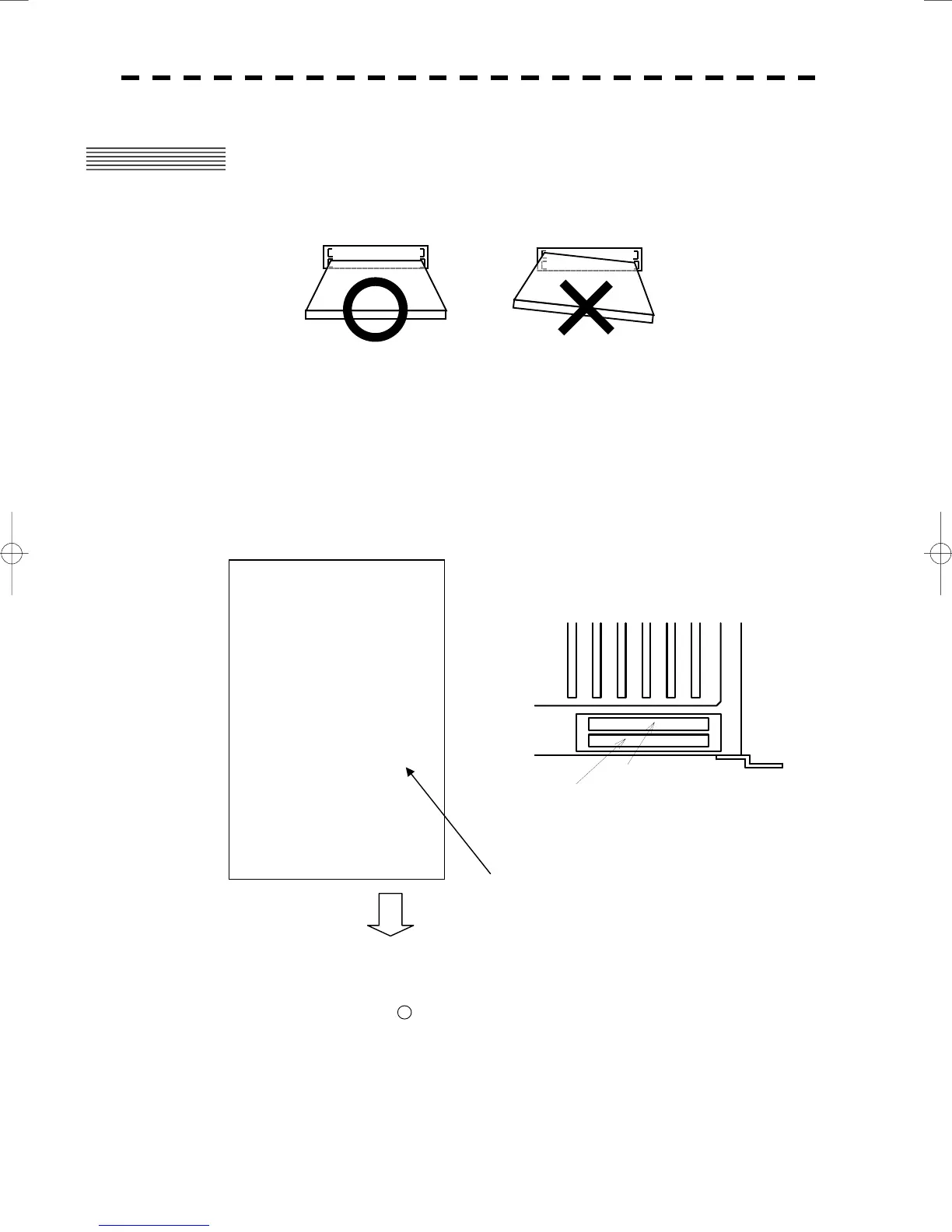

Note: Keep a card horizontal when inserting it into a card slot. An inclind card causes a failure.
3.7.1 Display Coastline ROM Card Produced by JRC
z Insert the Coastline ROM card produced by JRC with the top surface upward into card slot 1 (lower)
or 2 (upper) as shown in the figure below. Press [MAP] key, and the coastlines will be displayed
automatically.
z Two Coastline ROM cards can be inserted into card slots 1 and 2 at the same time.
z For ranges including detailed coastlines, refer to the Coastline ROM card catalog.
z Do not insert an ERC card (provided by Japan Hydrographic Association) or C-MAP card into a card
slot while JRC’s Coastline ROM card is in the other slot. Doing so causes display trouble.
処理部前面
上段：カードスロット２
下段：カードスロット１
* Insert the card and then press button
30
on the radar display on page 2-7 to switch Display Charts between
ON and OFF.
JRC
CDD-612JKA
Coastline ROM Card
Area: Kanto and Tokai Districts
(1) Kanto
Japan Radio Co., Ltd.
Top surface
Insert into card slot 1 or 2.
Front view of the processor
Upper: Card slot 2
Lower: Card slot 1
