3.7 DISPLAY CHART
y
y y
3.7.2 Display ERC Card
z Insert the ERC card (provided by Japan Hydrographic Association) with the top surface upward into
card slot 1 (lower) or 2 (upper) as shown in the figure below. Press [MAP] key, and the coastlines will
be displayed automatically.
z Two ERC cards can be inserted into card slots 1 and 2 at the same time.
z For ranges of charts to be displayed, refer to the catalog issued by Japan Hydrographic Association.
z Do not insert JRC’s Coastline ROM card or C-MAP card into a card slot while the ERC card is in the
other slot. Doing so causes display trouble.

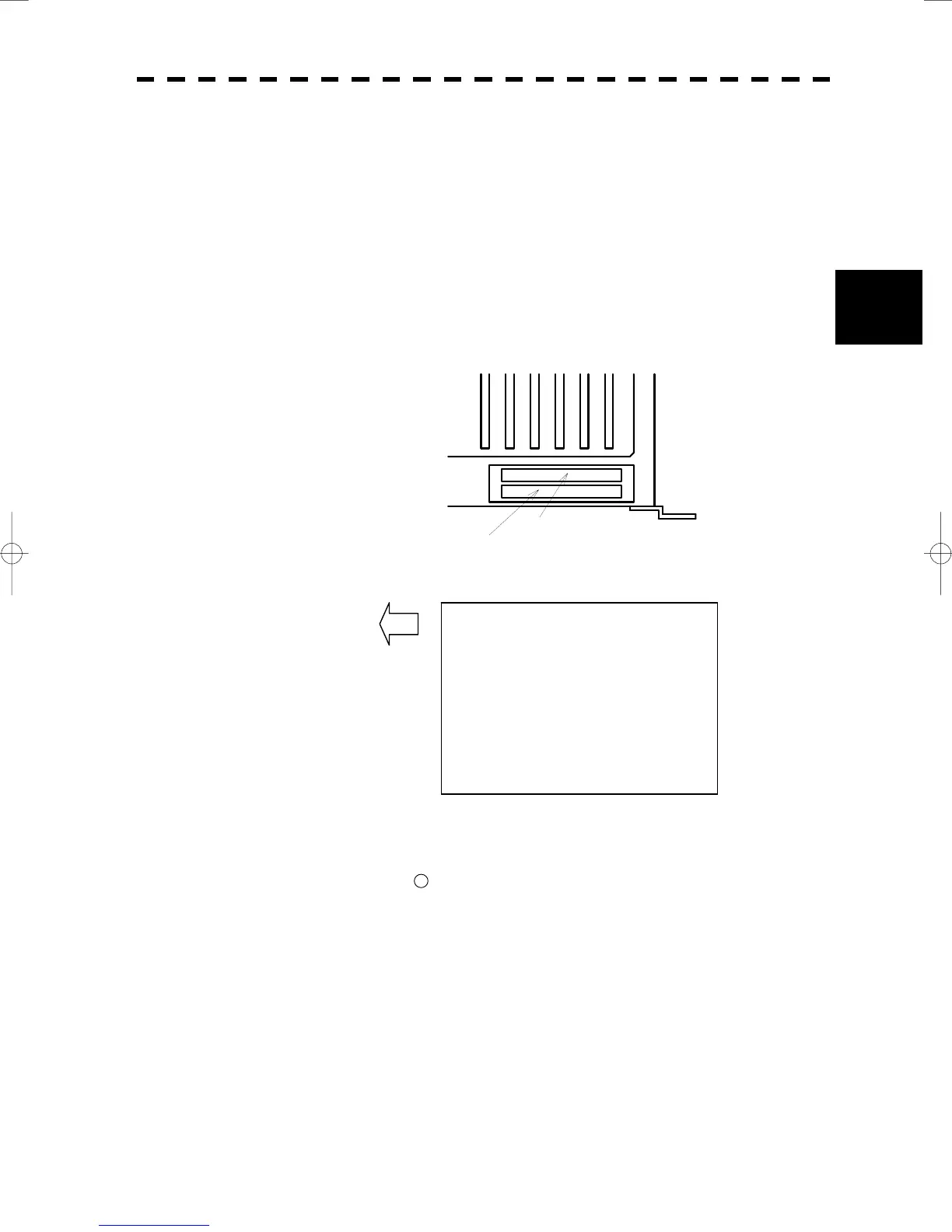

処理部前面
上段：カードスロット２
下段：カードスロット１
* Insert the card and then press button
30
on the radar display on page 2-7 to switch Display Charts between
ON and OFF.
Electronic Reference Charts for Navigation
R-300 Tokyo Bay and Vicinity
★North of Tokyo Bay
★Uraga Channel and Vicinity
★South of Tokyo Bay – Ohshima
★Taitohsaki - Irohzaki
Front view of the processor
Upper: Card slot 2
Lower: Card slot 1
Insert into card slot 1 or 2.
