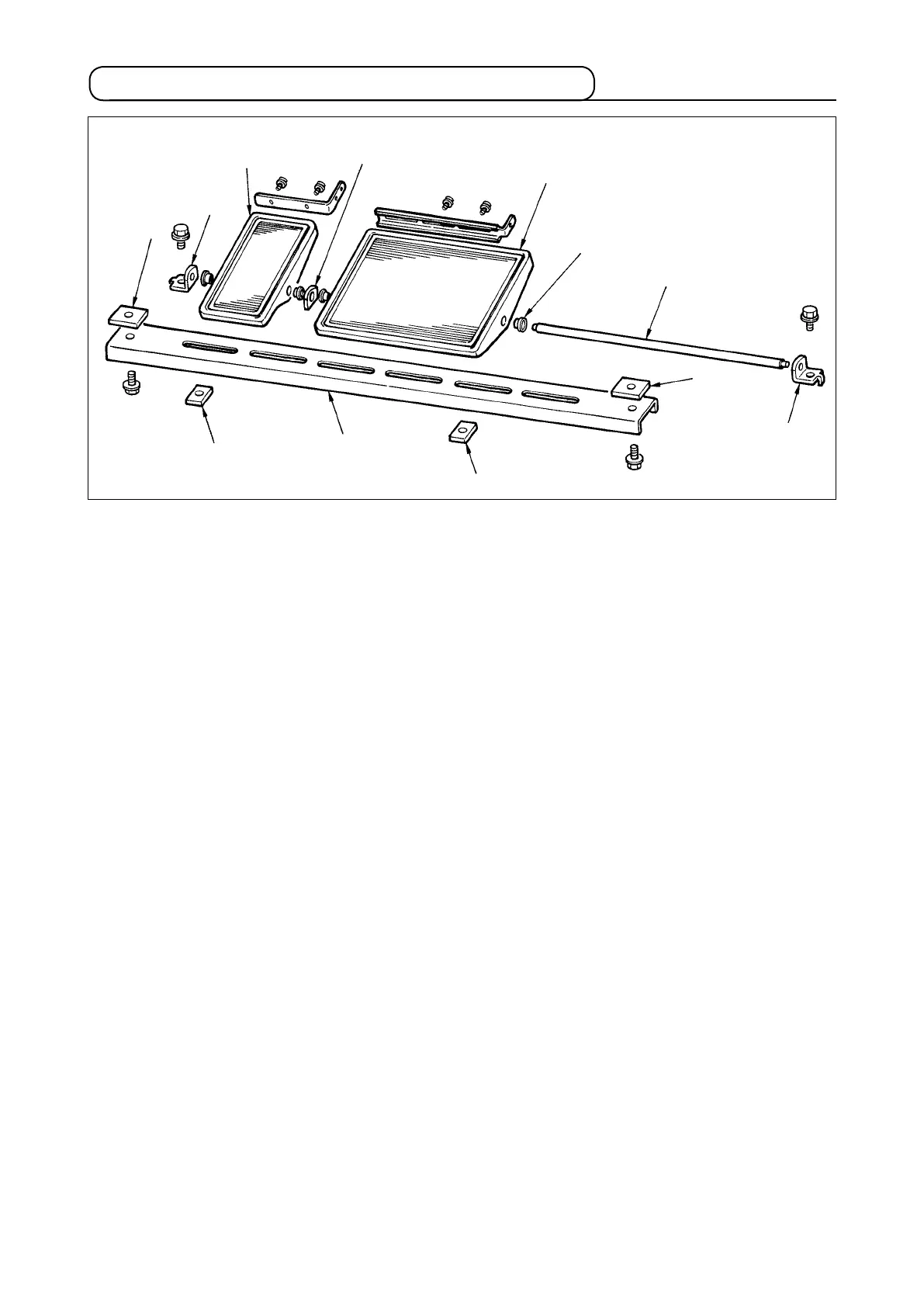

3-2 Assembling the pedal section of the stand
1) Assemble the lower strut to the stand using square nut
7
(wide width).
2) Put bush
4
to the pedal
8
and pass it through shaft
5
together with shaft bearing plate
3
. Then x
with pedal shaft bearing
2
.
3) Fix pedal shaft bearing
2
using square nut
1
(narrow width).
4) Assemble the whole pedal after fully drawing it up in the left direction in the illustration.
[When using with 1-pedal]
There is the short shaft for 1-pedal in the accessories. Remove the small pedal and shaft bearing plate
3
and replace the shaft with the shaft for 1-peadl. Then the machine can be used even with 1-pedal.
7
2
3
8
8
4
5
2
7
1
6
1
