Cord clamp A
Adjust the height so that the top
surface of throat plate auxiliary plate
aligns with that of the throat plate.
If the height is not proper, material
flops and the feed amount is not
settled.

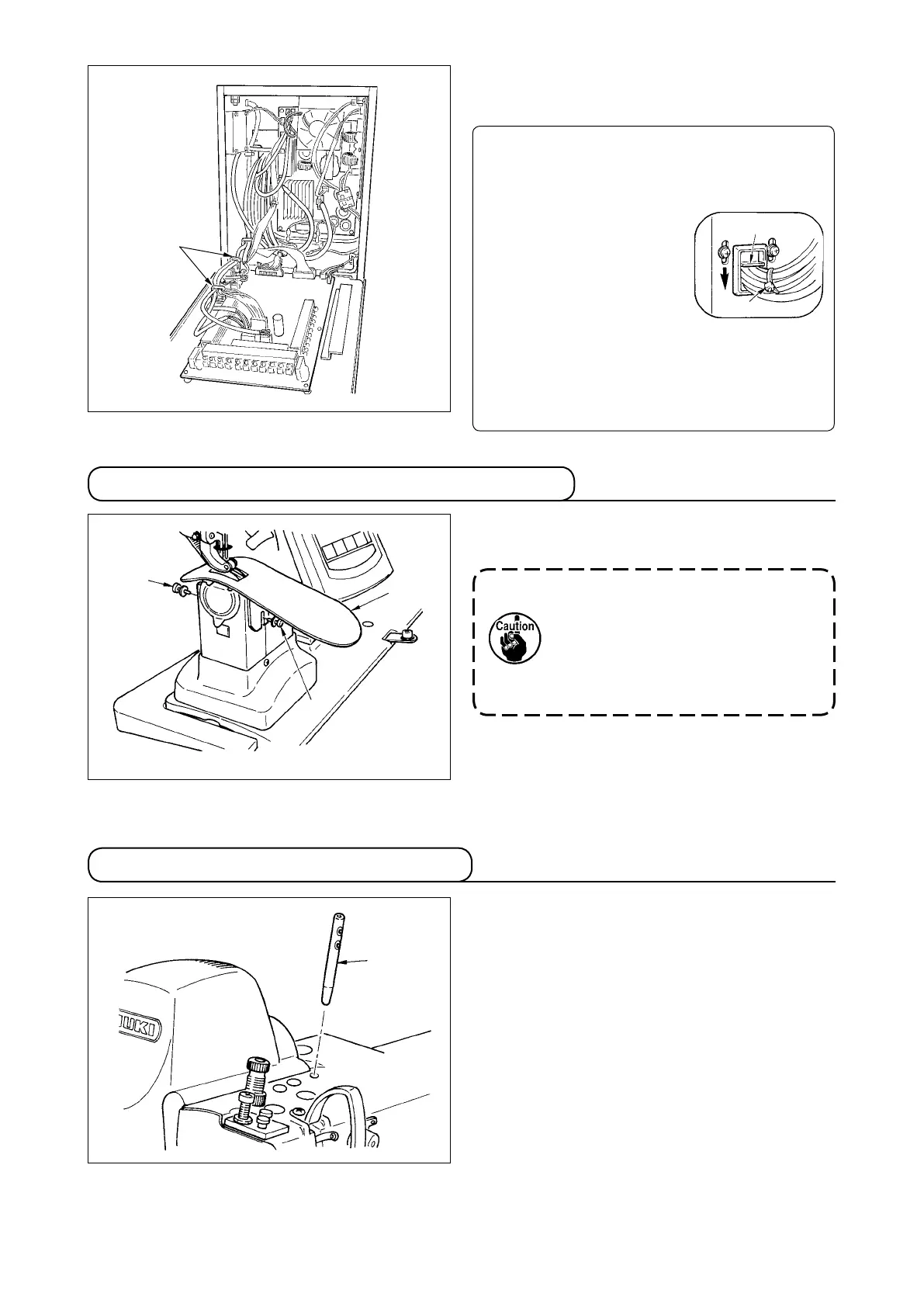

3-10 Installing the throat plate auxiliary plate
Loosen two screws
2
, insert throat plate auxiliary
plate
1
and x it.
Securely insert thread guide rod
1
so that two
side holes of it faces the front in the direction of the
operator.
3-11 Installing the thread guide rod
1
2
2
1
4) Fix the cords connected to MAIN p.c.b. with cord
clamp A.
Handling the cords
1) When xing the cords, connect them with the
sewing machine tilted, and bundle with clip
band
1
.
2) When the machine head
is returned to its home
position, fix the cords
with cord xing plate
2
in
the state that there is the
slack in the cords.
Caution : When tilting the sewing machine,
make sure that the head support
bar is attached to the table.
1
2
