JUKI Sewing Machine - ReplacNg the Bottom Feed Belt; ReplacNg the Bottom Feed Roller

–
171
–
4) After adjustment of the tension, attach throat
plate auxiliary plate
1
and the various covers.
1) Turn presser lever
5
, raise feed foot
6
, and
remove throat plate auxiliary plate
1
, hook
cover asm.
2
, frame cover
3
and bottom feed
cover
4
.
2) Loosen inner hook presser setscrews
!1
and
remove inner hook presser
!2
.
3) Remove bottom feed roller
!0
and replace it with
a new one. Slightly apply the exclusive grease
supplied as accessories (Part No. : 40006323)
inside the roller.
4) Make sure of the bottom feed belt tension.
5) After adjusting the tension, attach throat plate
auxiliary plate
1
and various covers.
Feed pith error will be caused unless the
tension is proper.
1) Turn presser lever
5
, raise walking foot
6
,
and remove throat plate auxiliary plate
1
, hook
cover asm.
2
, frame cover
3
and bottom feed
cover
4
.
2) Loosen setscrews
8
in the bottom feed tension
plate.
3) Replace bottom feed belt
7
with a new one.
Adjusting procedure of the belt tension
Adjust bottom feed tension plate
9
to the left or
right to adjust the tension.
(Tension is increased in direction
A
.)
Belt tension value :
The belt has to be bent by 3 mm when it is
pressed with a load of 1.5N (150gf).
1
2
3
4
5
6

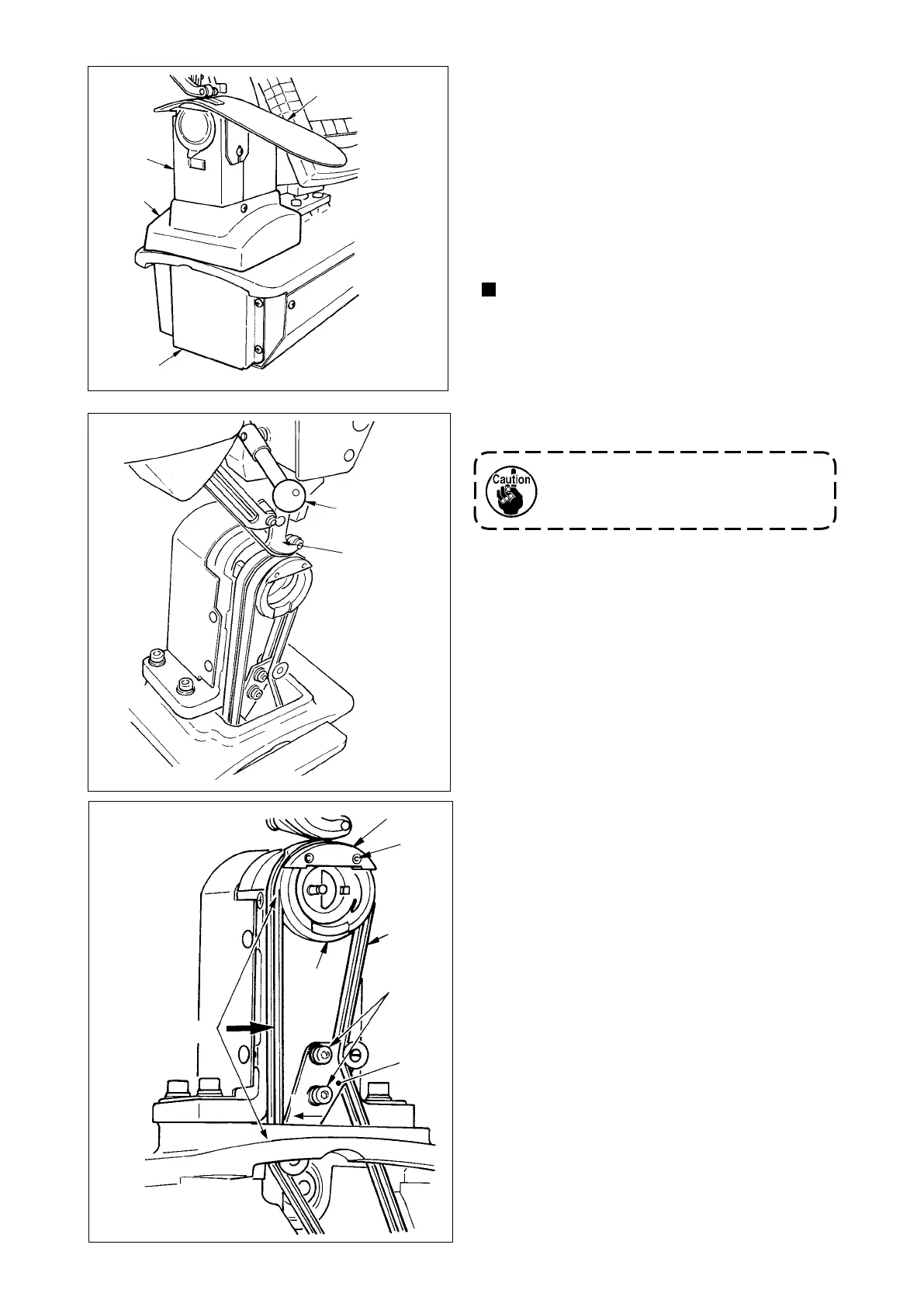

(2) Replacing the bottom feed belt
(3) Replacing the bottom feed roller
7
8
9
A
!0
!1
!2
Press the center
