See Figure 6 on page 8 for an example of an MX10004 line card.

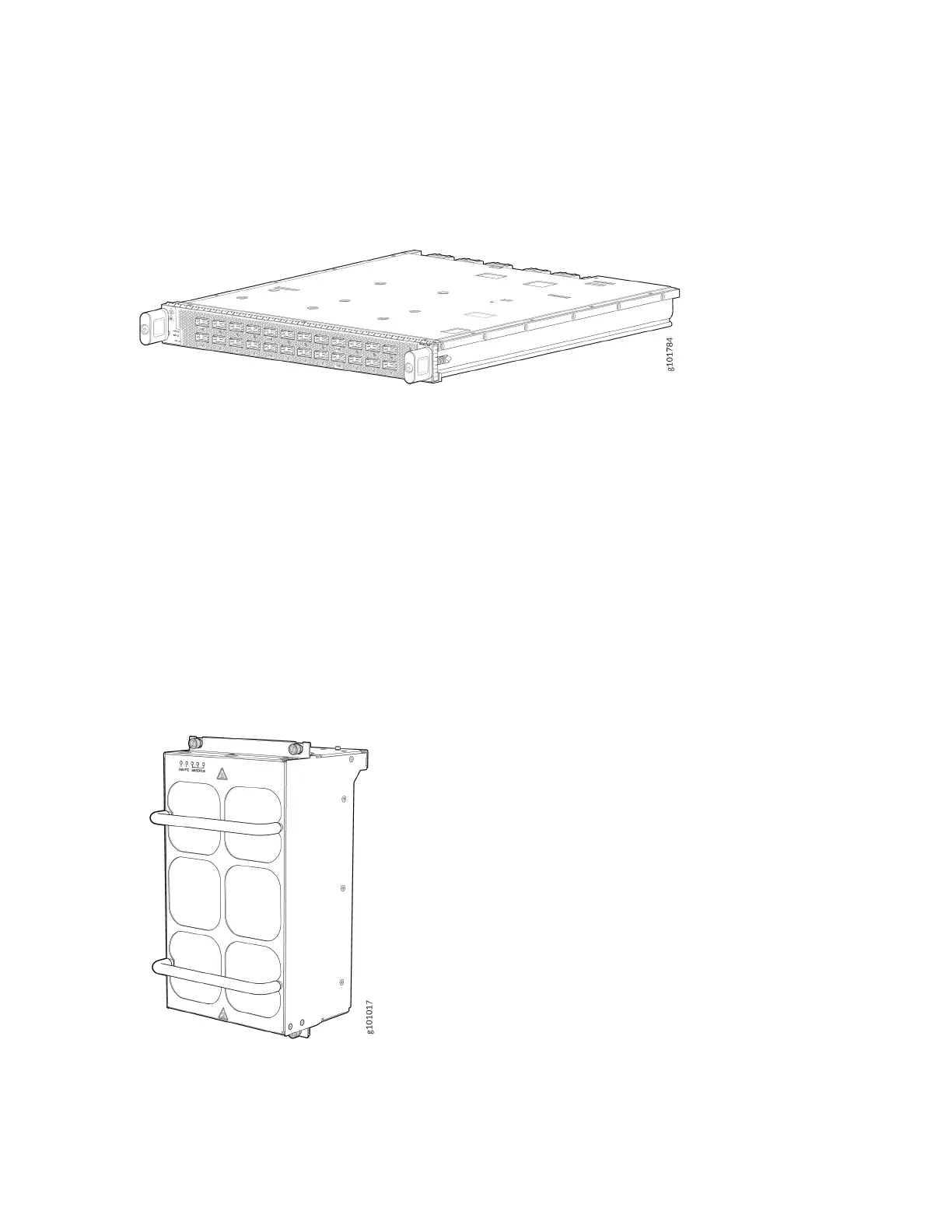

Figure 6: The MX10K-LC9600 Line Card
Cooling System
The cooling system in an MX10004 consists of two fan trays (see Figure 7 on page 8) and two fan
tray controllers (see Figure 8 on page 9).
The JNP10004-FAN2 fan tray contains an array of six fans and operates as a single hot-removable and
hot-insertable eld-replaceable unit (FRU). You install the fan trays vercally on the rear of the chassis
to provide front-to-back chassis cooling. See "MX10004 Cooling System" on page 26.
Figure 7: Fan Tray JNP10004-FAN2
8
