Each JNP10004-FAN2 fan tray has a corresponding fan tray controller, JNP10004-FTC2. See Figure 8
on page 9.

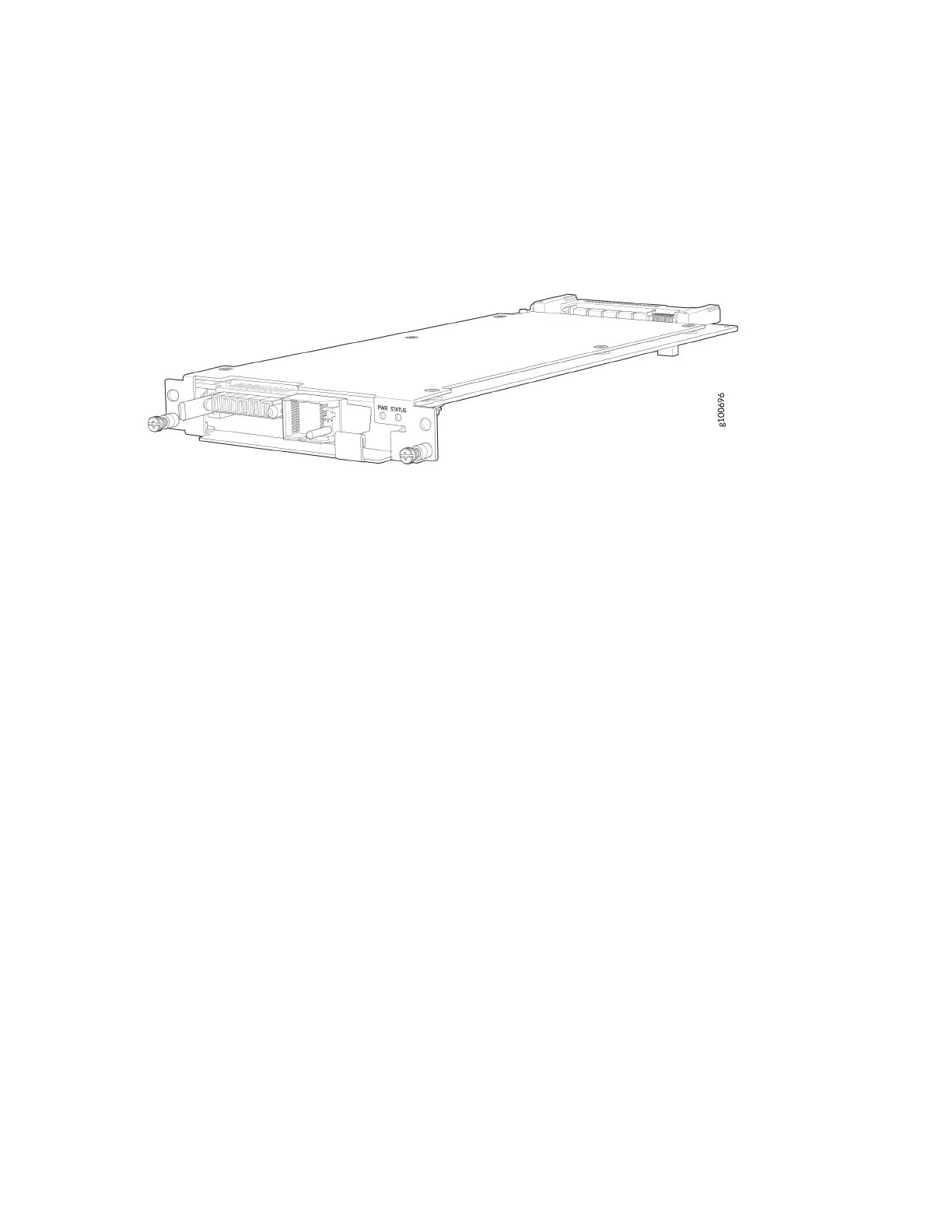

Figure 8: Fan Tray Controller JNP10004-FTC2
Power Supplies
The MX10004 routers support AC, DC, high-voltage alternang current (HVAC), and high-voltage direct
current (HVDC) through the following power supplies:
• JNP10K-PWR-AC2
• JNP10K-PWR-DC2
Power supplies for the MX10004 are load-sharing, hot-removable, hot-insertable FRUs. The router
operates with three power supplies. Each power supply has an internal fan for cooling. You can install
the power supplies in any slot. See Figure 9 on page 10 and Figure 10 on page 10.
9
