1. Wrap and fasten one end of an ESD strap around your bare wrist, and connect the other end of the
strap to the ESD point on the front of an MX10016(see Figure 60 on page 161).

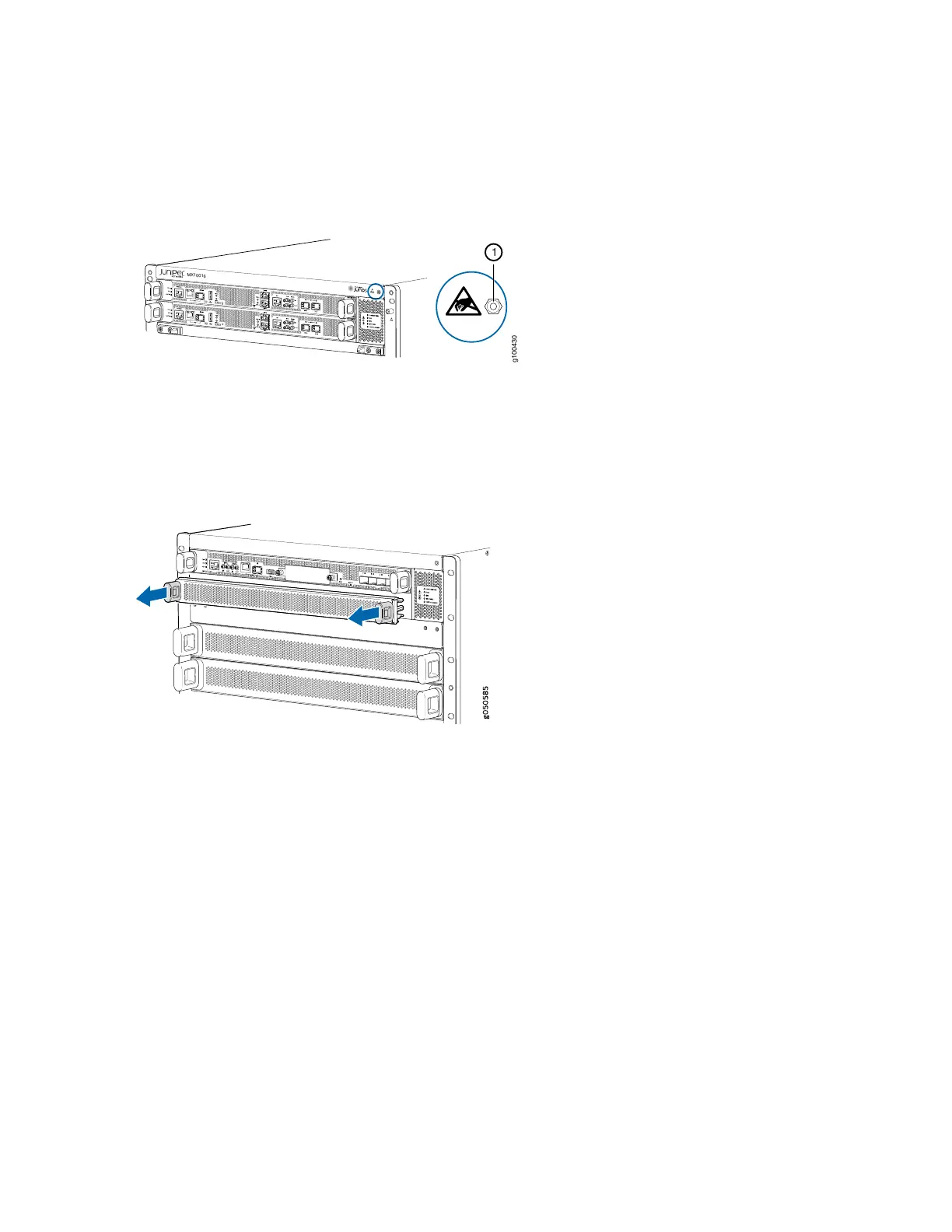

Figure 60: ESD Point on the Front of an MX10016
2. Either remove the cover panel from the available RCB slot (see Figure 61 on page 161) or remove the
failing RCB (see Removing a Routing and Control Board).
Figure 61: Removing a Routing and Control Board Cover Panel
3. Remove the new RCB from the electrostatic bag, and inspect the RCB for any damage before installing
it into the chassis.
4. Lift the RCB by its sides, being careful not to strike the connectors against any object.
5. Carefully align the sides of the RCB with the guides inside the chassis.
6. Slide the RCB into the chassis ensuring that it is correctly aligned.
7. Grasp both the handles, and simultaneously rotate them clockwise until the RCB is fully seated and the
handles are vertical (see Figure 62 on page 162).
The RCB begins the power-on sequence after it is fully seated.
161
