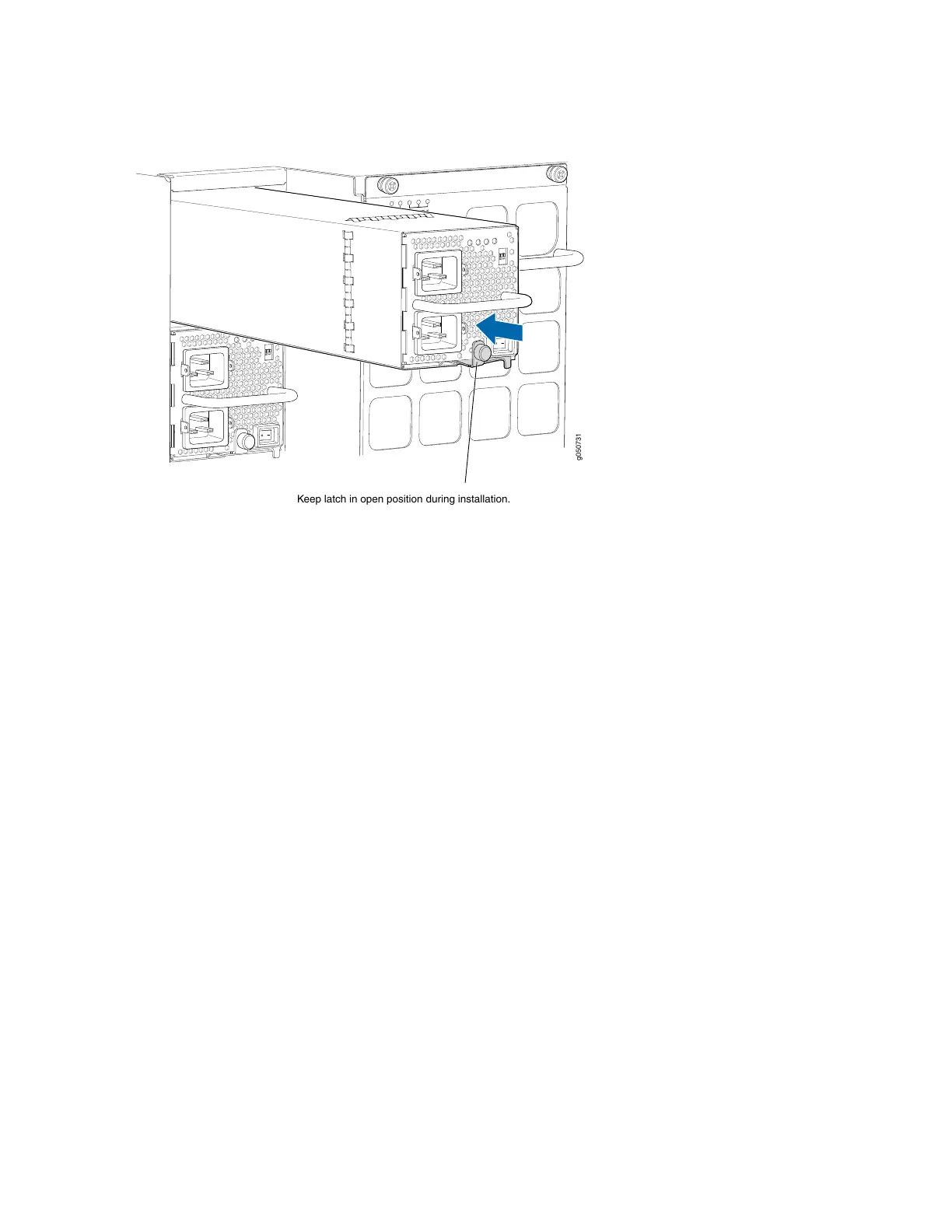

Figure 75: Installing an AC Power Supply in an MX10016
g050731
Keep latch in open position during installation.
12. Attach each power cord to a dedicated AC power source outlet.
13. Squeeze the two sides of the power cord retainer clip and insert the ends of the clip into the holes in
the bracket on each side of the AC appliance inlets on the AC power supply faceplate. See
Figure 76 on page 179.
14. Locate two power cords shipped with the router; the cords have plugs appropriate for your geographical
location.
15. Insert the power cord coupler into the power supply.
Each AC power supply has two independent 16 A rated AC inlets on the faceplate. Each inlet must be
connected to a dedicated AC power feed to achieve 2N source redundancy. If redundancy is not a
requirement, use the default input INP1 for a single connection.
16. Fasten the cord retainer by lowering the clip over the cord and pushing the cord into the adjustment
nut of the cord retainer. Rotate the nut until it is tight against the base of the cord. See
Figure 76 on page 179.
178
