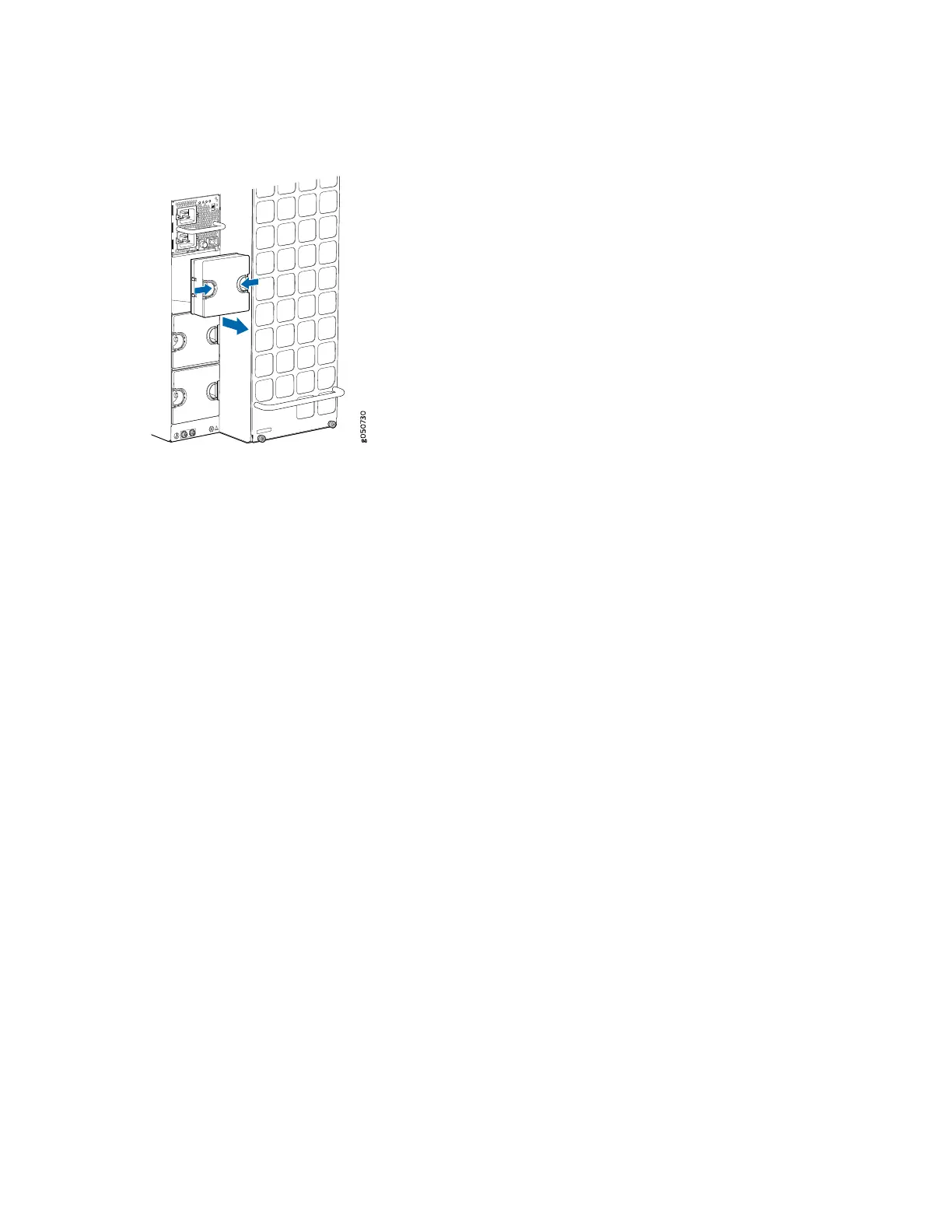

Figure 74: Removing the PSU Cover Panel of a Power Supply on an MX10016
3. Taking care not to touch the power supply connections, remove the power supply from its bag.
4. Peel back and remove the protective plastic wrap that covers all four sides of the power supply.
5. Ensure the power switch on the power supply is set to the standby (O) position. This switch turns off
the output voltage; it does not interrupt AC supply.
6. Unscrew the captive screw by turning it counterclockwise by using the number 1 Phillips (+) screwdriver.
7. Rotate the captive screw away from the faceplate of the power supply to release the latch. You can
install a power supply in any slot labeled PSU 0 through PSU 9 on an MX10016.
8. Using both hands, place the power supply in the power supply slot on the rear of the chassis.
9. Slide the power supply straight into the chassis until the power supply is fully seated in the slot. Ensure
that the power supply faceplate is flush with any adjacent power supply faceplates or power supply
cover panels (see Figure 75 on page 178).
10. Push the captive screw into the power supply faceplate. Ensure that the screw is seated inside the
corresponding hole on the faceplate.
11. Tighten the captive screw of the latch by turning it clockwise by using the number 1
Phillips (+) screwdriver. When the screw is completely tight, the latch locks into the router chassis.
177
