1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
the ESD point on the chassis.
There is an ESD point located next to the protective earthing terminal and below PSU 9 on the MX10016
(see Figure 73 on page 176).

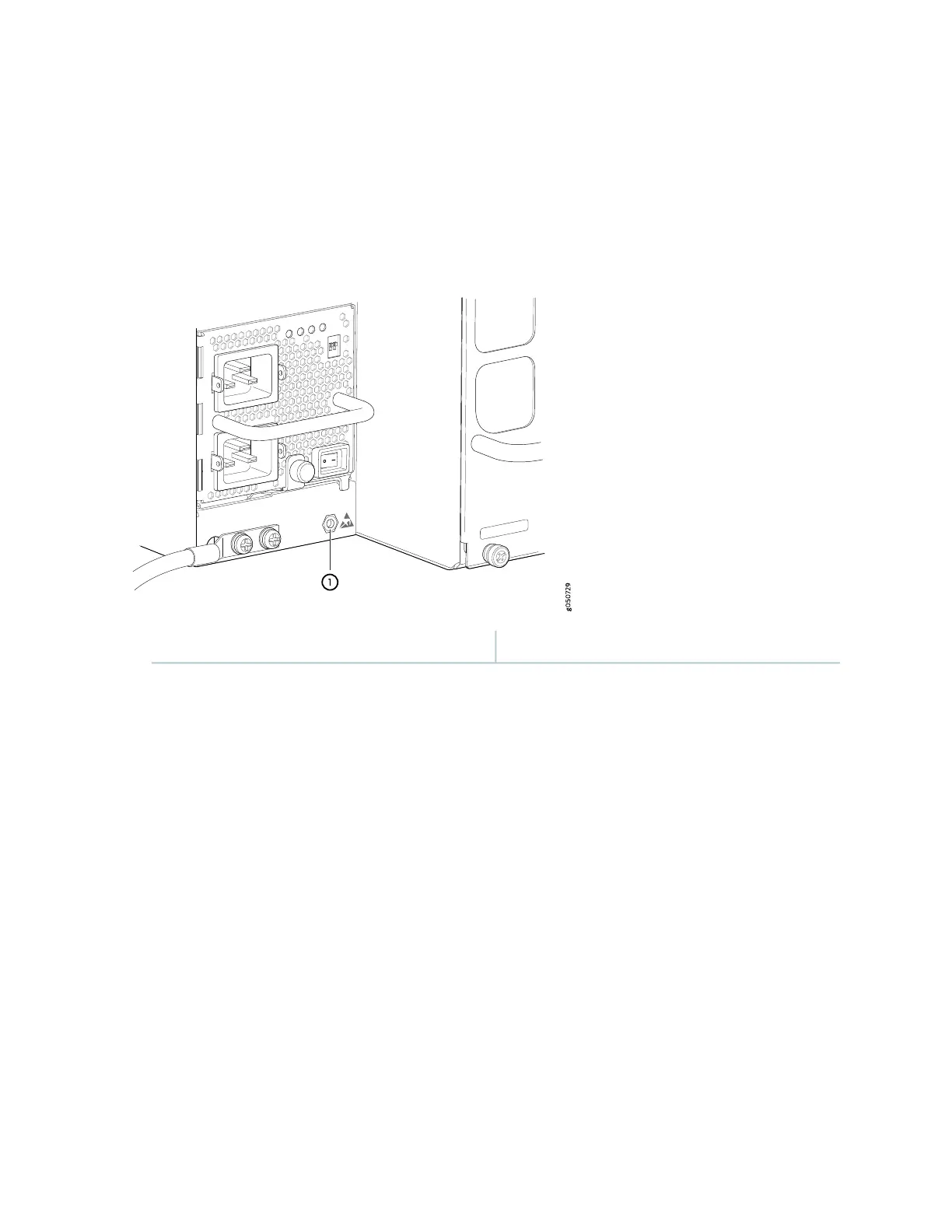

Figure 73: ESD Point on the Rear of an MX10016
1—ESD point
2. If the power supply slot has a cover panel on it, insert your thumb and forefinger into the finger holes,
and then squeeze and pull the cover panel out of the slot. Save the cover panel for later use (see
Figure 74 on page 177 for removal on an MX10016).
