10. Install the plastic cable cover over each set of power cables by using the Phillips (+) screwdriver,
number 2, to tighten the screw.

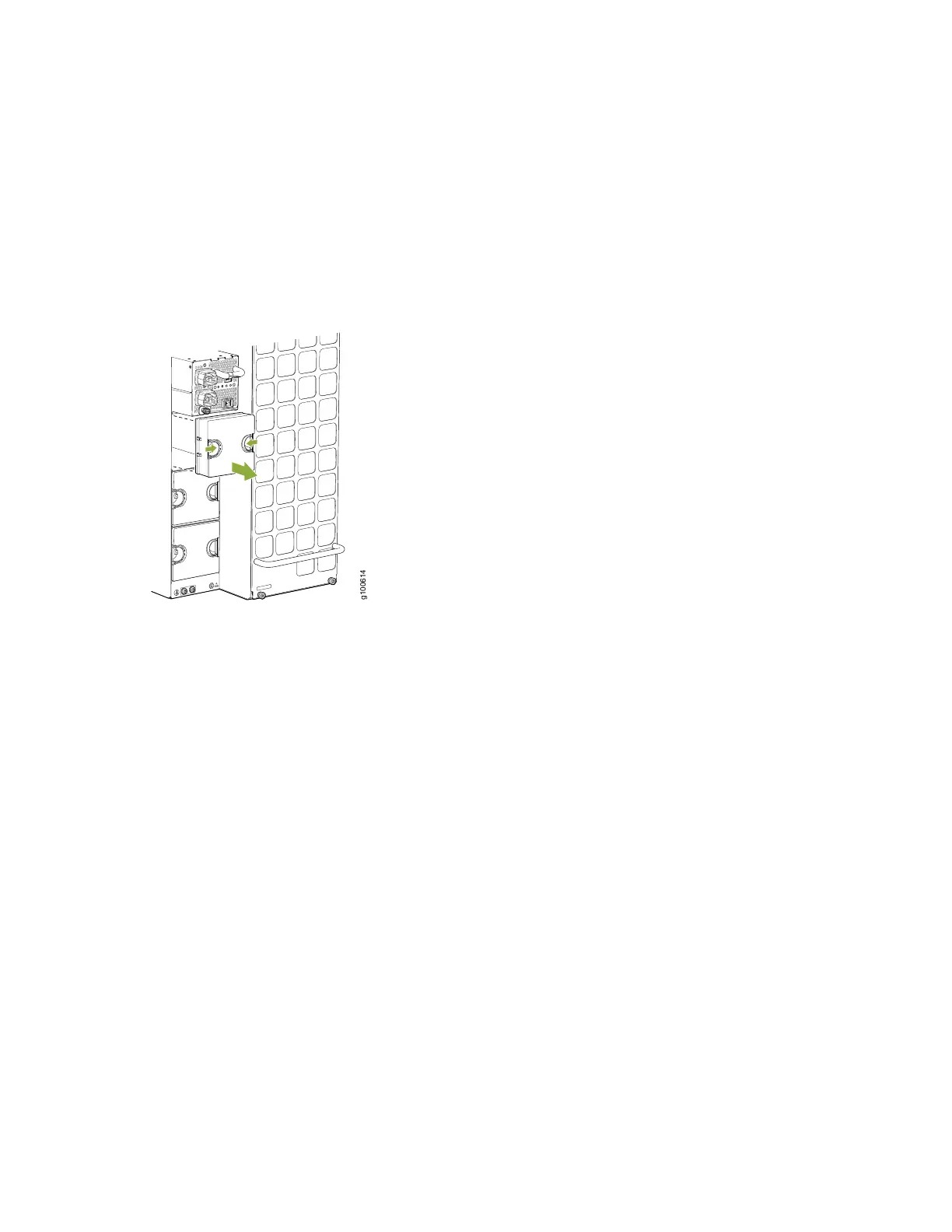

11. If the power supply slot on the chassis has a cover panel on it, insert your thumb and forefinger into
the finger holes, squeeze, and pull the cover out of the slot. Save the cover panel for later use (see
Figure 96 on page 205).
Figure 96: Removing the Power Supply Cover Panel on an MX10016
12. Unscrew the captive screw in the counterclockwise direction by using the Phillips (+) screwdriver,
number 1.
13. Rotate the captive screw away from the faceplate of the power supply to release the latch.
14. Using both hands, place the power supply in the power supply slot on the rear of the router. Slide the
power supply straight into the chassis until the power supply is fully seated in the slot. The power
supply will protrude from the chassis about 2 in. (5 cm) (see Figure 97 on page 206).
15. Push the captive screw into the power supply faceplate. Ensure that the screw is seated inside the
corresponding hole on the faceplate.
16. Tighten the captive screw by turning it clockwise by using the Phillips (+) screwdriver, number 1. When
the screw is completely tight, the latch locks into the router chassis.
