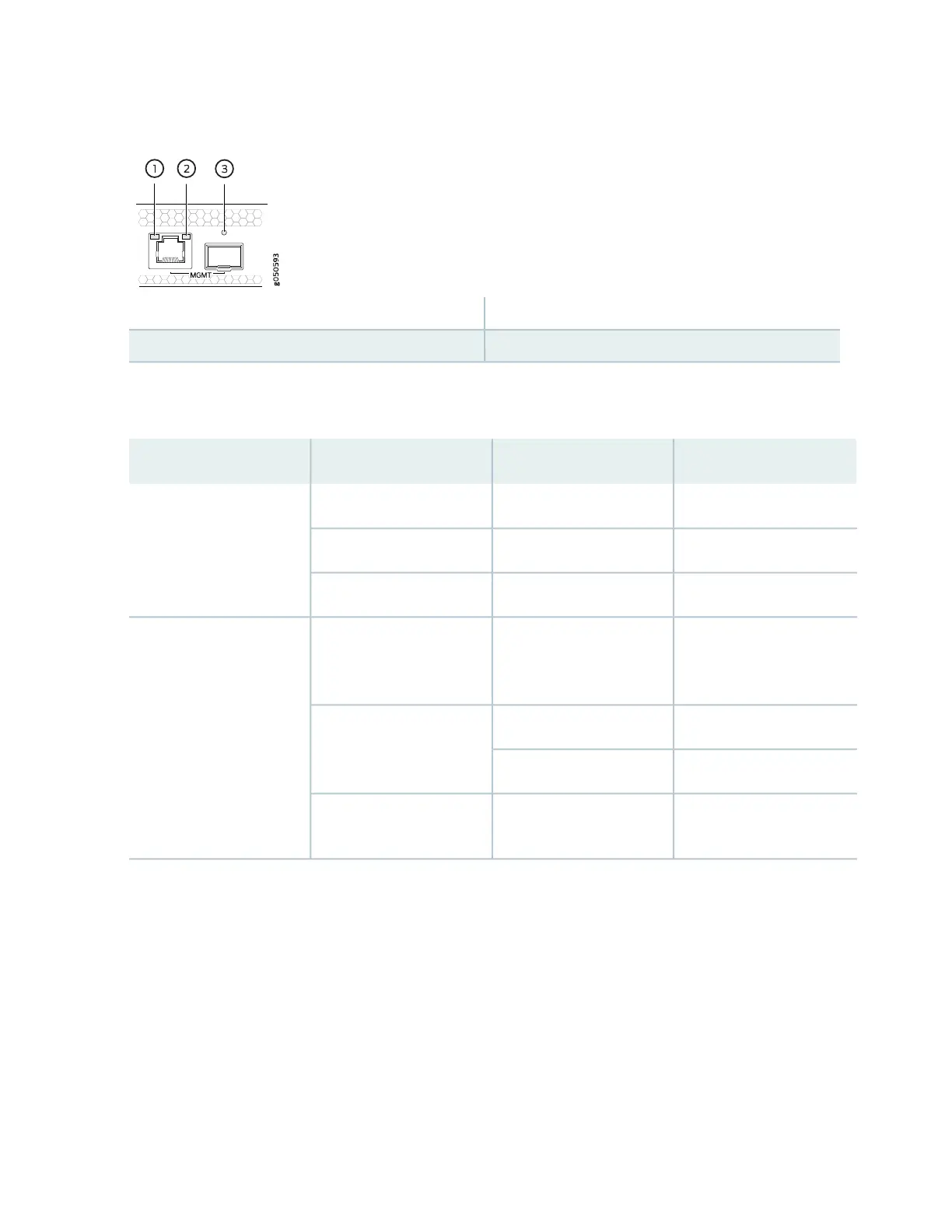

Figure 36: Management Port LEDs on an RCB
3—1— LINK LEDStatus LED (RJ-45)
2—Activity LED (RJ-45)
Table 22 on page 79 describes the RJ-45 management port and SFP LEDs.
Table 22: RJ-45 Management Port LEDs on the Routing and Control Board
DescriptionStateColorLED
The port speed is 10 MB.OffUnlitActivity/Status LED
The port speed is 100 MB.BlinkingGreen
The port speed is 1000 MB.On steadilyGreen
No link is established, there
is a fault, or the link is
down.
OffUnlitLINK
A link is established.On steadilyGreen
There is link activity.Blinking
The beacon feature is
enabled.
Blinking or flickeringYellow
Table 23 on page 80 describes the JCS port LEDs.
79
