Fastmode(8s)
Infastmodetheintegrationintervalissetat8seconds,whichmeansthatthemetercalculatesaccumulatedvolume
andenergyevery8seconds.
Fastmodeisrecommendedforallsystemsincludingthosewithtapwaterexchanger.

Mainsmode(2s)
Inmainsmode,theintegration
intervalissetat2seconds,whichmeansthatthemetercalculatesaccumulatedvolume
andenergyevery2seconds.
Mainsmodecanonlybeusedformains‐suppliedmeters.Mainsmodeisavailableintwoversionsinwhichthebacklit
displayturnsoff15s.afterthelatestactivationofa
key(Lcode=4)orremainsturnedon(Lcode=9)respectively.
Mainsmodeisrecommendedforallsystemsincludingthosewithtapwater exchanger.Mainsmodeisespecially
suitableforapplicationsinwhichthemeterisequippedwithanalogoutputs.

Integrationconcept

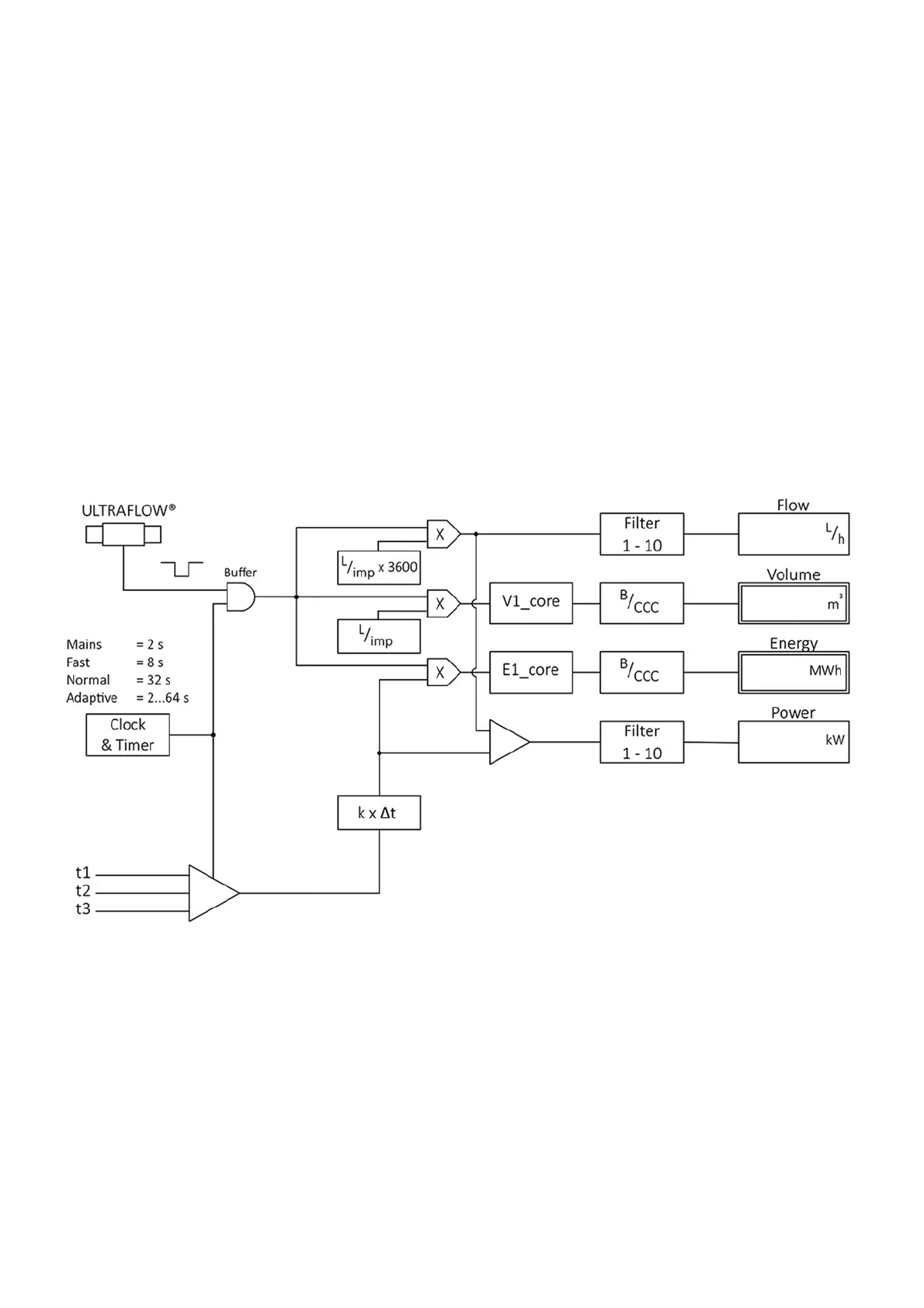

TheintegrationconceptforMULTICAL®
603isillustratedinthefigurebelow.
