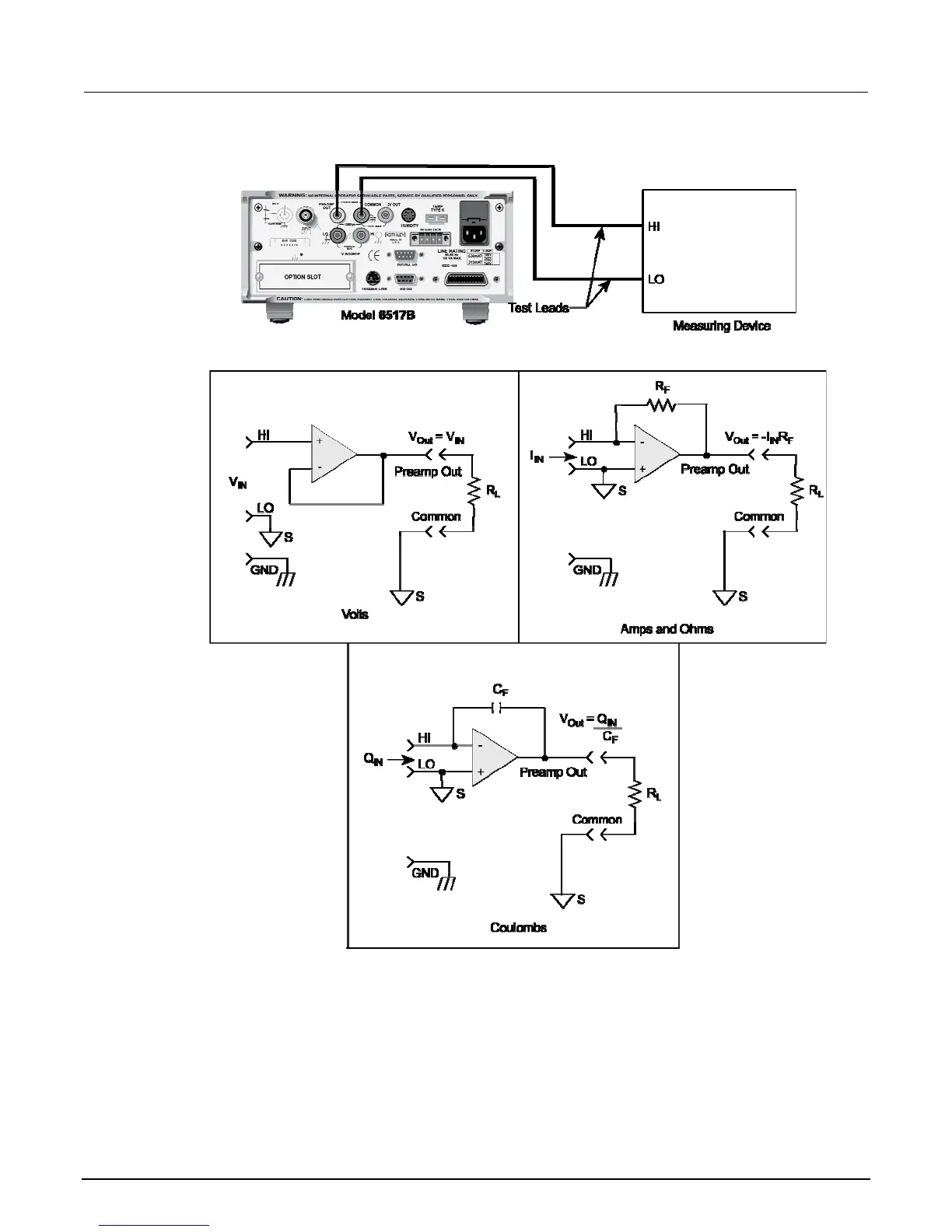

Figure 59: Typical PREAMP OUT connections
Figure 60: Typical PREAMP OUT connections - equivalent circuits
Using external feedback
The external feedback function provides a means to extend the capabilities of the Model 6517B
Electrometer to such uses as logarithmic currents, non-decade current ranges, as well as non-
standard coulombs ranges. The following paragraphs discuss the basic electrometer input circuitry
and methods to implement these functions.
