Section 14: SCPI command reference Model 6517B Electrometer Reference Manual
14-104 6517B-901-01 Rev. C / August 2015
Trigger event register:
Bit B0: Not used.
Bit B1, sequence 1 (Seq1): Set bit indicates that the instrument is in the trigger layer (PTR), or that
the instrument has exited from the trigger layer (NTR).
Bits B2 through B14: Not used.
Bit B15: Always zero.

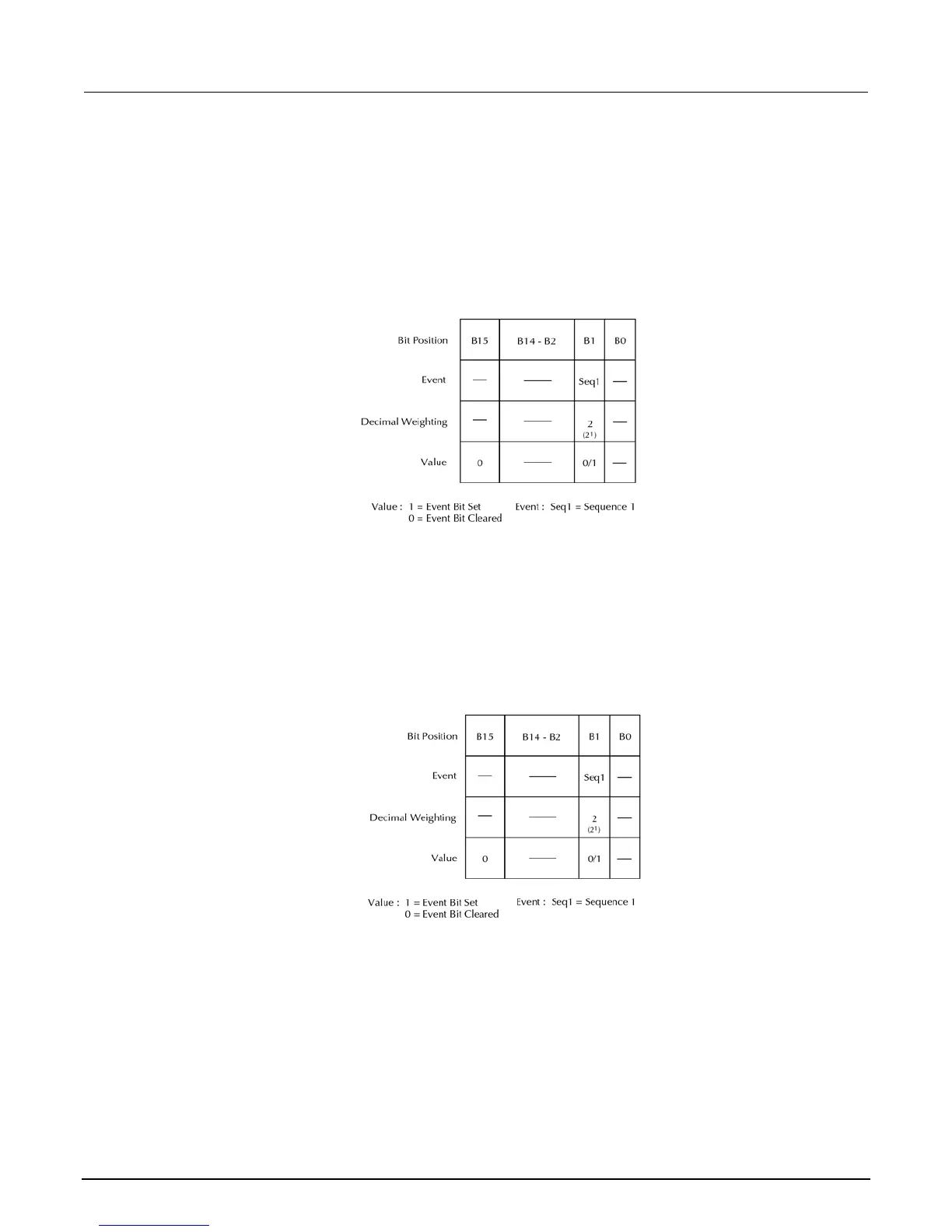

Figure 119: Trigger event register
Arm event register:
Bit B0: Not used.
Bit B1, sequence 1 (Seq1): Set bit indicates that the instrument is in an arm layer (PTR), or that the
instrument has exited from the arm layers (NTR).
Bits B2 through B14: Not used.
Bit B15: Always zero.
Figure 120: Arm event register

Keithley 6517B Specifications

General

Input Impedance	>200 TΩ
Electrometer Type	Electrometer/High Resistance Meter
Current Measurement Range	20 fA to 20 mA
Display	Vacuum Fluorescent Display
Communication Interfaces	IEEE-488 (GPIB), RS-232
Power Supply	100 V / 120 V / 220 V / 240 V; 50 Hz / 60 Hz
Resistance Measurement Range	Up to 200 TΩ
