For circular electrodes:
P = D
0
D
0
= D
1
+ g (refer to the "Circular electrode dimensions" figure to determine dimension D
0
).

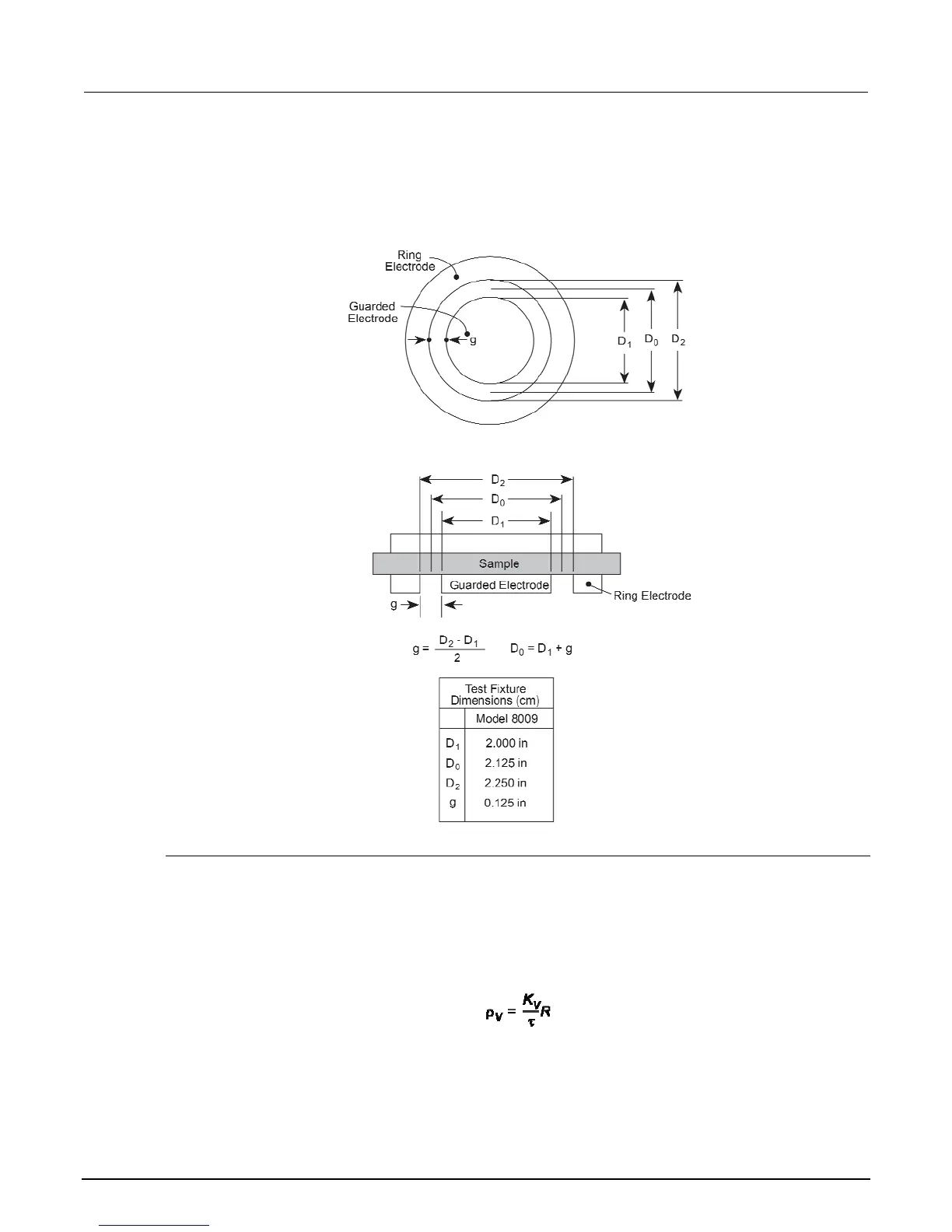

Figure 46: Circular electrode dimensions
Volume resistivity
Volume resistivity is defined as the electrical resistance through a cube of insulating material. When
expressed in ohm-centimeters, it would be the electrical resistance through a one-centimeter cube of
insulating material. If expressed in ohm-inches, it would be the electrical resistance through a one-
inch cube of insulating material.
The Model 6517B automatically performs the following calculation and displays the volume resistivity
reading:
