342 Keysight N9927-90001 User’s Guide
5G Rapid Prototype Phased Array Antenna – Option 360
How to Set Up Phased Array Antenna Settings
c. Press Done Edit > Done
3. Selecting phased array antenna mode using the Antenna Wizard:
a. Press Measure
.
b. Then Antenna Wizard
c. Follow the prompts. See Figure 11.

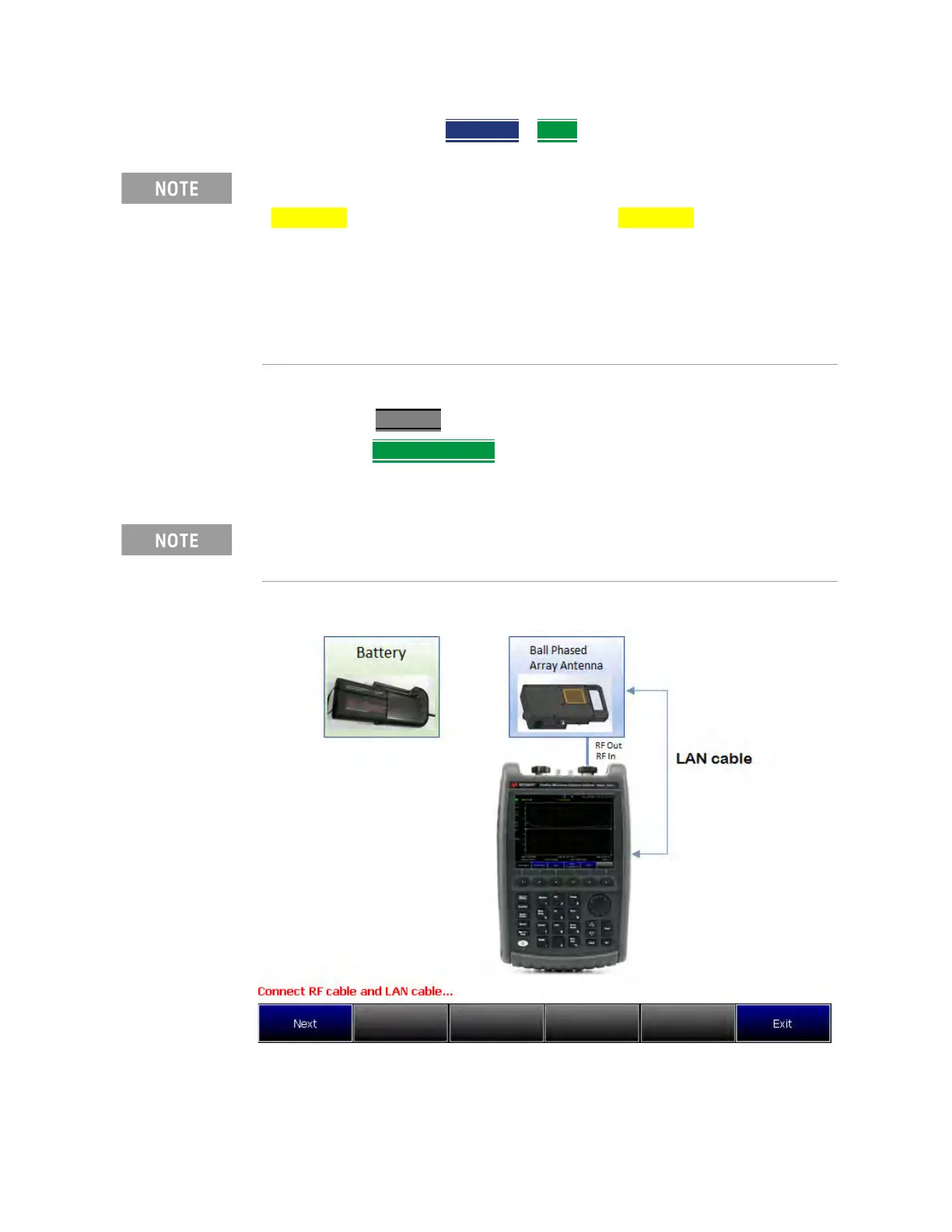

Figure 11 Antenna Wizard Screen
4. Aligning the antenna’s azimuth and elevation orientation:
Refer to Figure 13 on page 344.
IMPORTANT! The LAN address for first 3 fields must match the Static IP
address of FieldFox. For example, if the Ball Antenna IP address is
192.168.1.10, set FieldFox Static IP address to 192.168.1.xx. “xx” must be
different number than shown in the last field of the for Ball Antenna. Refer
to Figure 14 on page 350.
IMPORTANT! If you forget you N9910X-028 Ball Antenna’s static IP
address, refer to this link and the Support tab for assistance:
www.keysight.com/find/fieldfox and then to the Phase Array Antenna
Support Document.
Once the connect is correct, the FieldFox’s displayed annotation indicating "Check LAN
connection. Check IP address." is no longer displayed during pinging of the Host IP
address.
