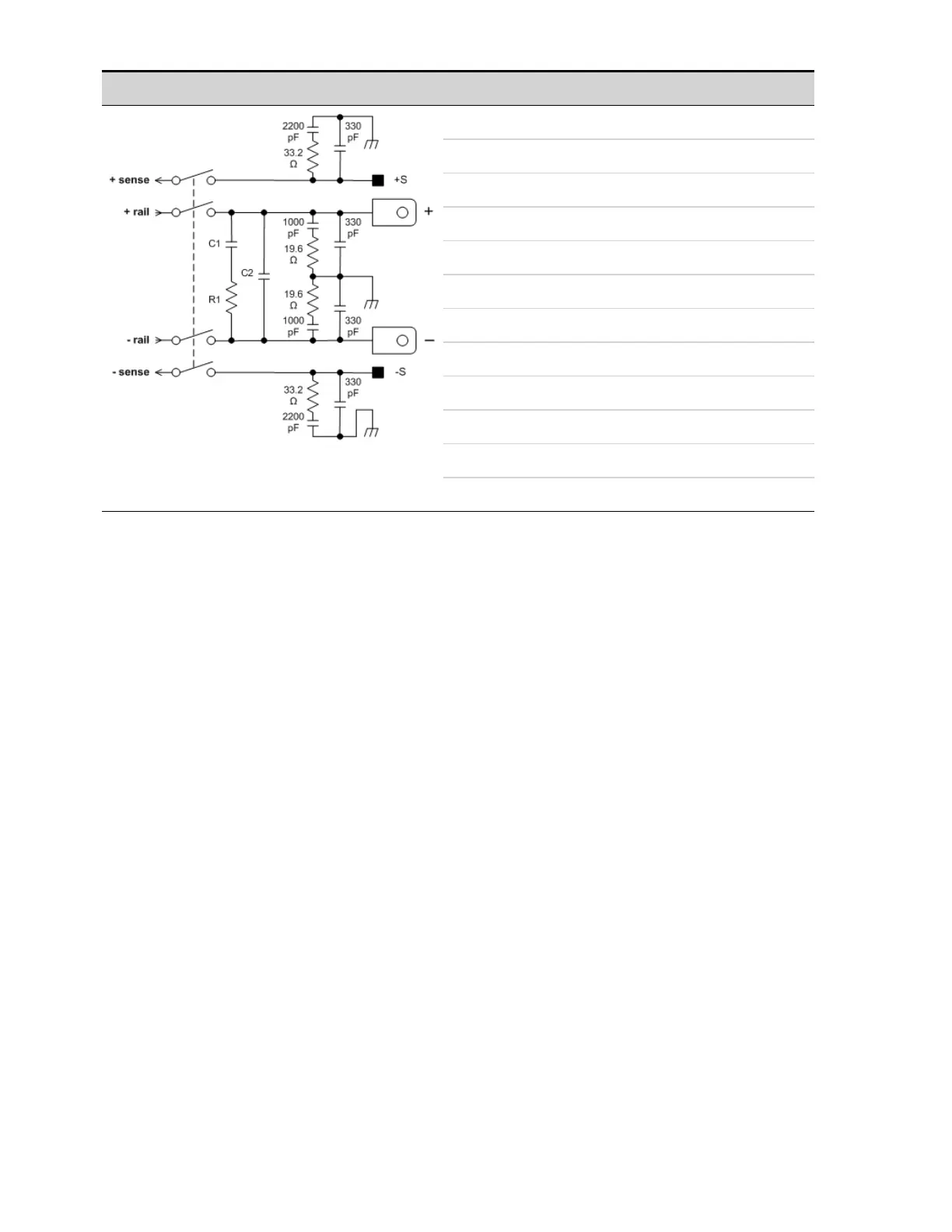

AC Filter Network Model C1 C2 R1
N7950A 10 µF 0.3 µF 0.15 Ω
N7951A 3.3 µF 0.2 µF 0.25 Ω
N7952A 2.2 µF 0.1 µF 0.3 Ω
N7953A 1 µF 0.047 µF 0.5 Ω
N7954A 0.47 µF 0.047 µF 0.5 Ω
N7970A 20 µF 0.6 µF 0.075 Ω
N7971A 6.6 µF 0.4 µF 0.125 Ω
N7972A 4.4 µF 0.2 µF 0.15 Ω
N7973A 2 µF 0.94 µF 0.25 Ω
N7974A 0.94 µF 0.94 µF 0.25 Ω
N7976A 0.5 µF 0.0235 µF 1 Ω
N7977A 0.235 µF 0.0235 µF 1 Ω
