9.3.4 Setup Wizard
The Setup Wizard leads you through the necessary steps for configuring your servo
amplifier. Depending on the selected application, only the active screen pages are
necessary.

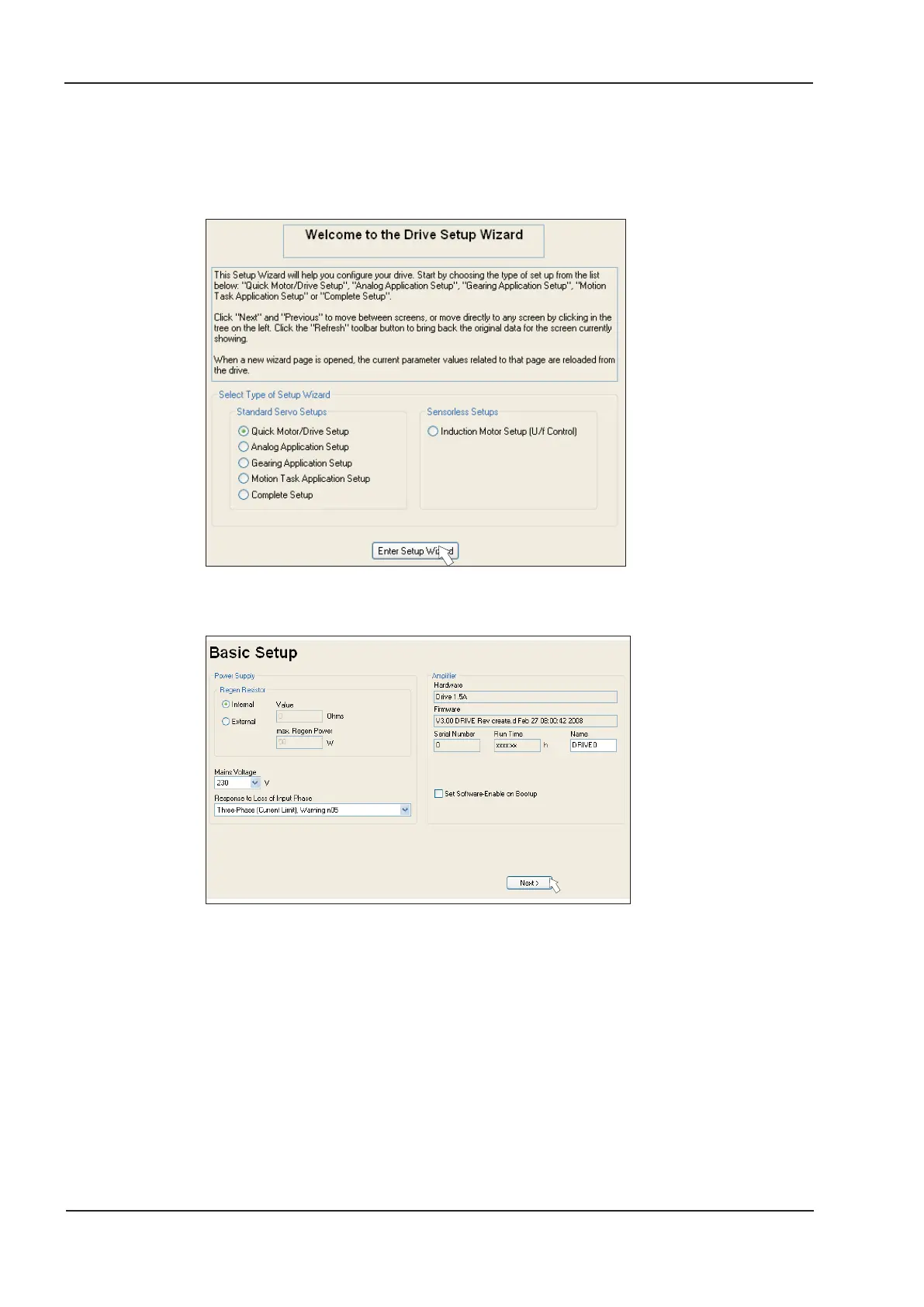

For a quick setup / drive
test, select the setup
type "Quick Motor/Drive
Setup".
Start the Wizard.
9.3.4.1 Basic Setup
Basic parameters are
setup here.
Response to Loss of Input Phase: Select Single-Phase or Three-Phase operation.
With three-phase operation you can select either warning "n05" or error "F19" in case of
phase loss. The reaction "F19" disables the output stage, "n05" is just a message.
Name: You can enter a name for the servo amplifier (up to 8 characters). This simplifies
the drive identification in the system.
Set Software Enable on Bootup: Don't select this option for the quick test.
Click NEXT.
