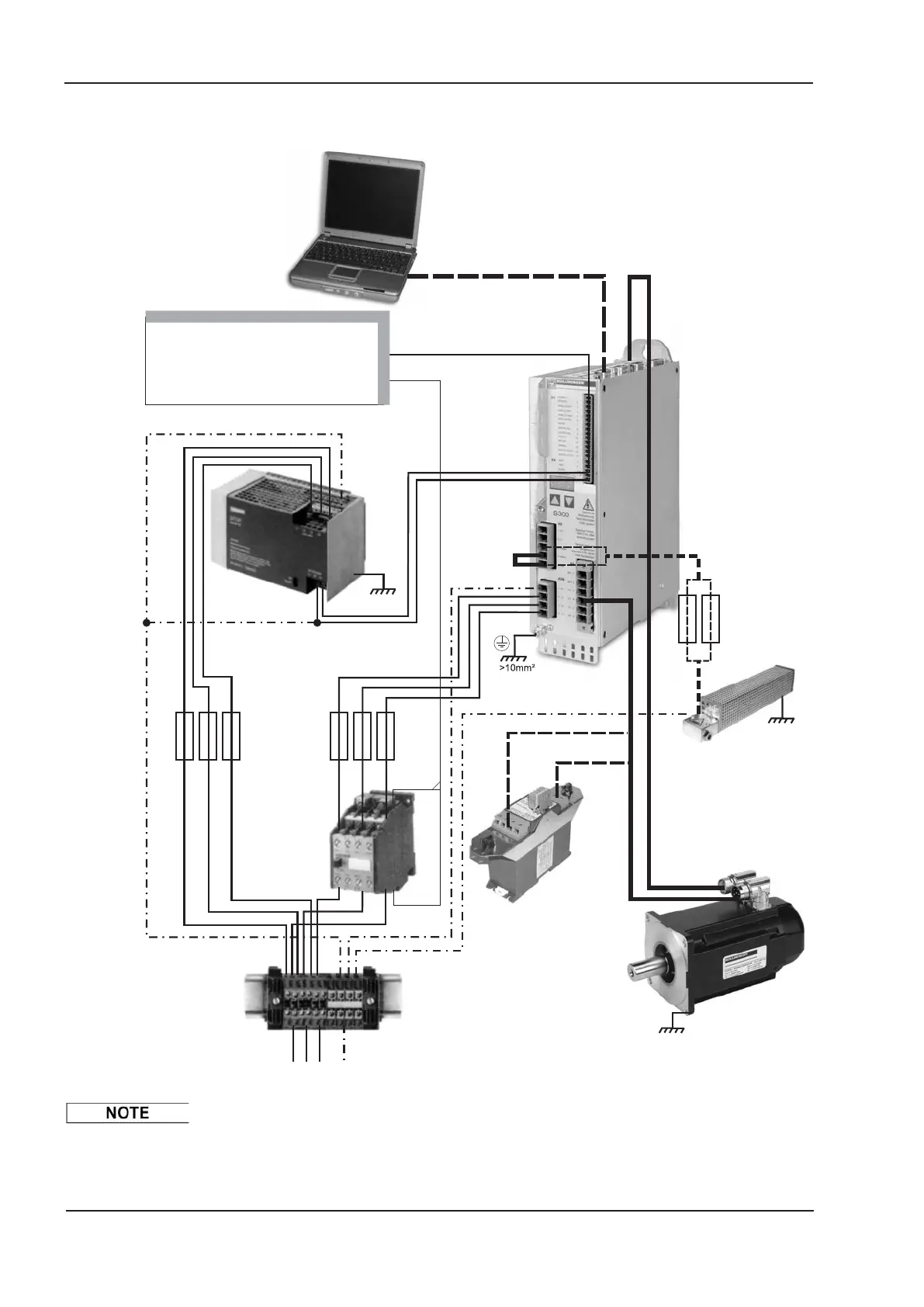

8.4 Components of a servo system
Cables drawn bold are shielded. Electrical ground is drawn with dash-dotted lines.
Optional devices are connected with dashed lines to the servo amplifier. The required
accessories are described in our accessories manual.
54 S300 Instructions Manual
Electrical installation 02/2017 Kollmorgen
24V PSU
Fuses
Drive cut-out
Terminals
Motor
S300
PC
Controls / PLC
Brake resistor
(optional)
Motor choke
(optional)
