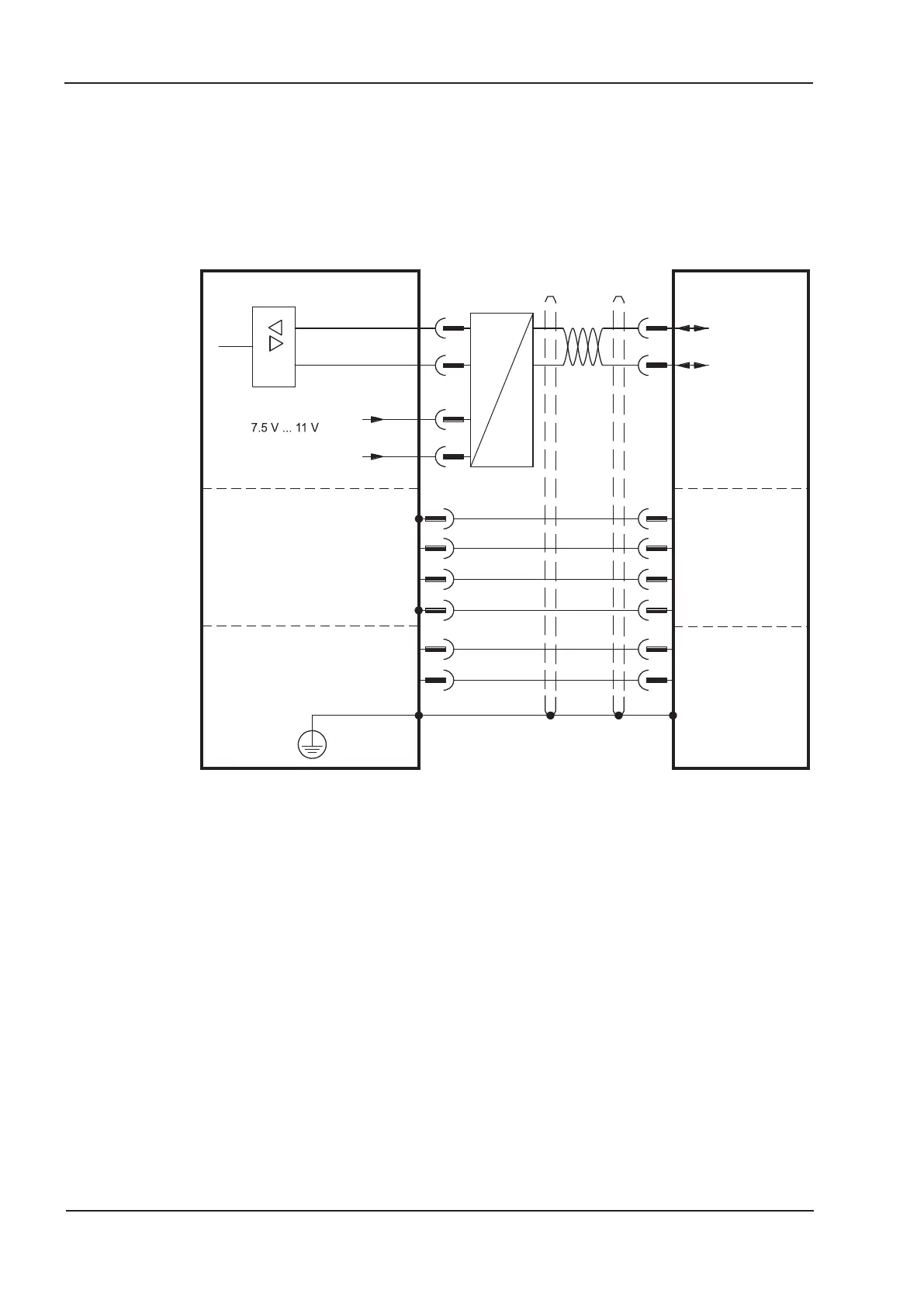

8.12.2 HIPERFACE DSL (X1), single cable connection
Connection of HIPERFACE DSL feedback (primary, ð p.66). HIPERFACE DSL can be
used only with the special Kollmorgen hybrid cable (see table on p.66 or Accessories
Manual).
Maximum cable length 25 m.
FBTYPE: 35
The pin assignment shown on the encoder side relates to the Kollmorgen motors (connector code D).
68 S300 Instructions Manual
Electrical installation 02/2017 Kollmorgen
A
B
8
15
X1
Feedback
0V
4
2
Up
DSL+
DSL-
COM+
COM-
D
C
X9
1
2
4
5
6
3
Brake-
Brake+
PE
U2
V2
W2
BR-
BR+
PE
U
V
W
B
A
1
4
3
2
HIPERFACE DSL
Drive
max. 250mA
Motor
Power
Brake
