8.12.5 Sine Encoder with BiSS digital (X1)

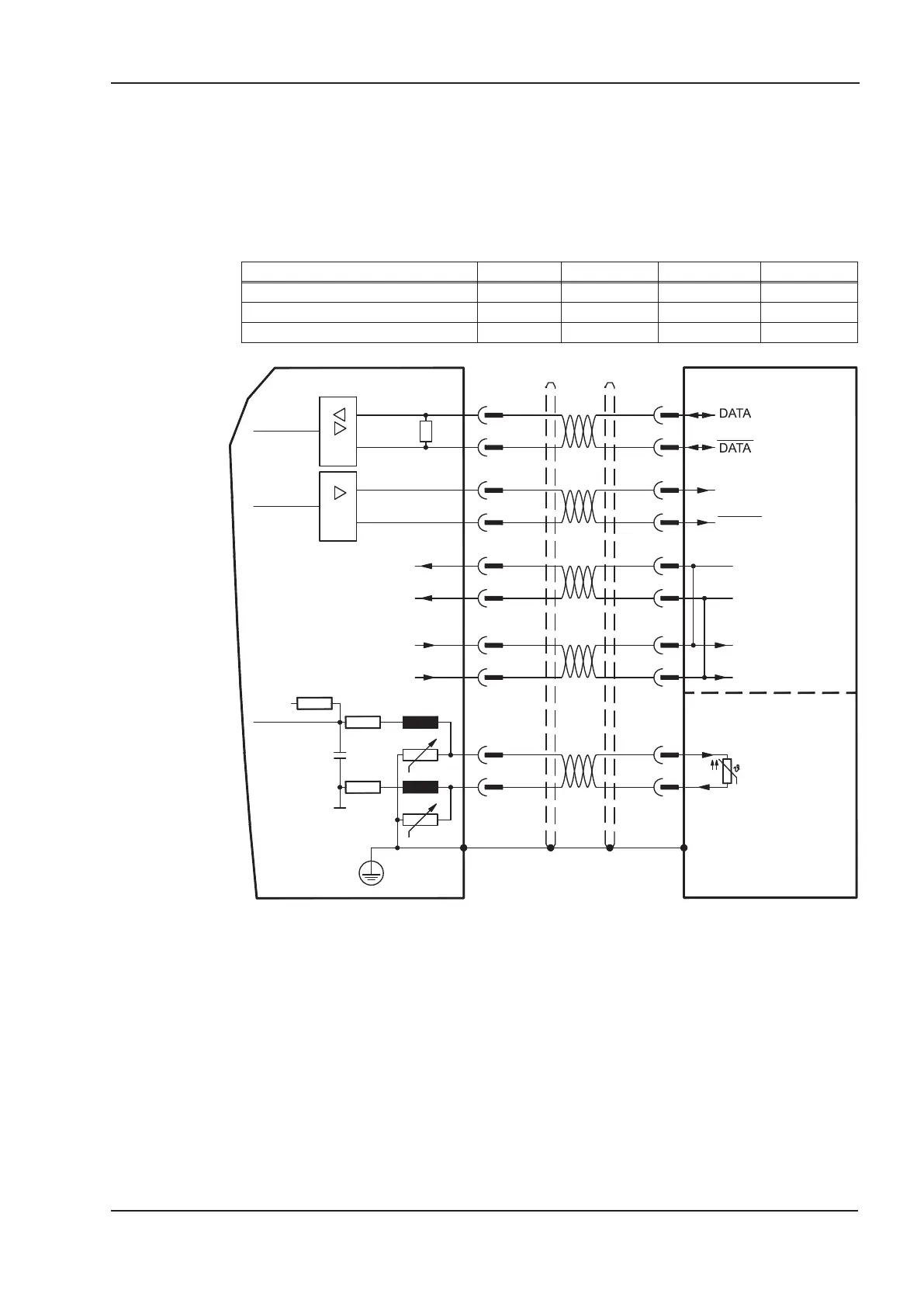

Wiring of a single-turn or multi-turn digital encoder with BISS interface as a feedback sys
-
tem (primary and secondary, ð p.66). The thermal control in the motor is connected via
the encoder cable to X1 and evaluated there.
If cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit: 1,5 MHz
Type FBTYPE EXTPOS GEARMODE Up
5V digital (BiSS B) 20 11 11 5V +/-5%
12V digital (BiSS B) 22 11 11 7,5...11V
5V digital (BiSS C, Renishaw) 33 12 12 5V +/-5%
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
S300 Instructions Manual 71
Kollmorgen 02/2017 Electrical installation
max. 250mA
0V
2
14
7
Sense
UP
UP
0V
B
A
A
B
12
10
8
4
15
5
13
X1
14
7
2
0V
12
10
13
15
4
8
5
CLOCK
CLOCK
Sense
UP
UP
0V
min. 5VDC/5mA
Encoder
thermal control
voltage supply
Motor
S300
SubD 15
round, 17-pin
