8.12.19 SSI Encoder (X5, X1)

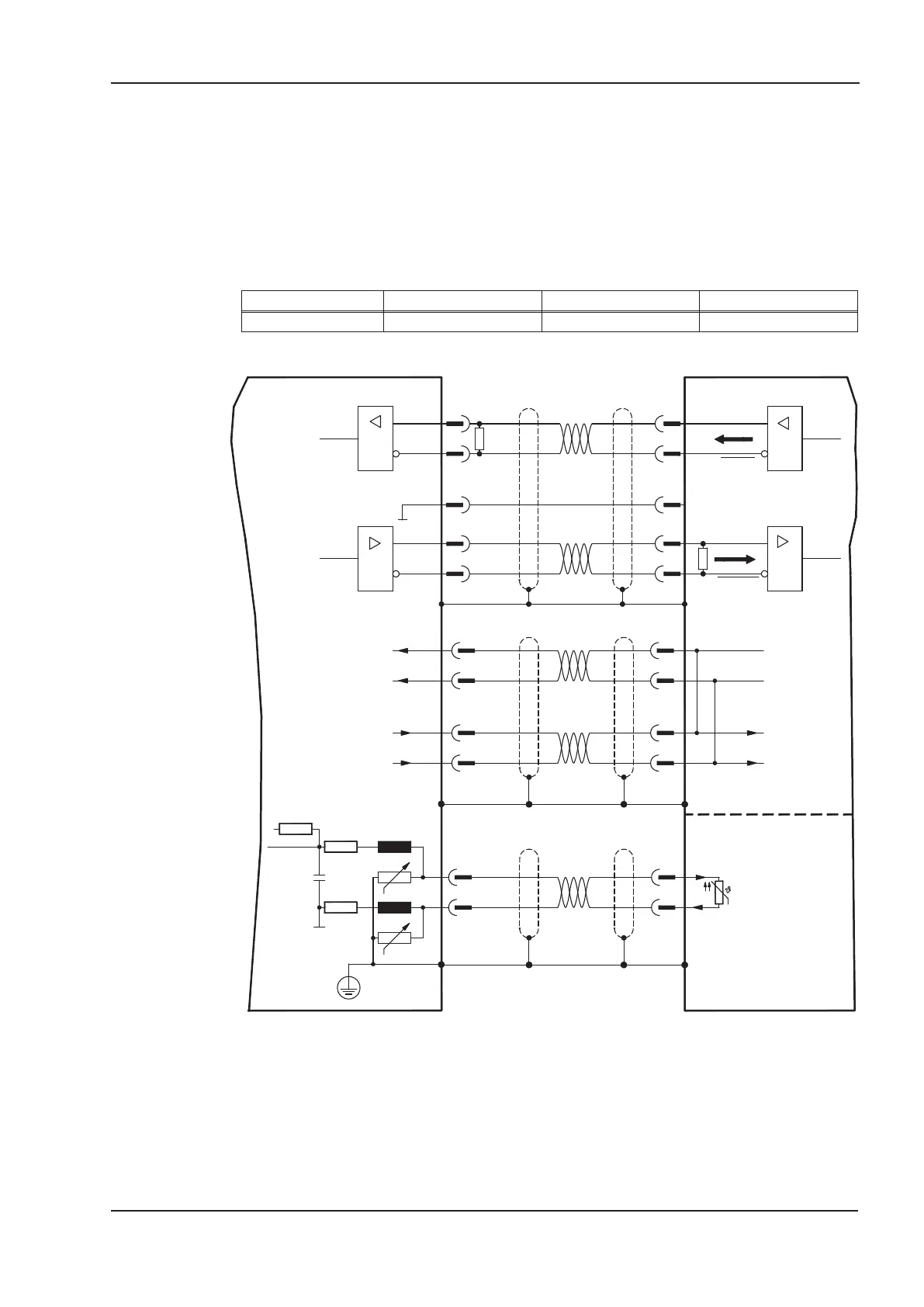

Wiring of a synchronous serial absolute encoder as a feedback system (primary or sec
-
ondary, ð p.66). The signal sequence can be read in Gray code or in Binary (standard)
code.
The thermal control in the motor is connected to X1 and evaluated there.
If cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit: 1.5 MHz
Type FBTYPE EXTPOS GEARMODE
SSI 9 5 5
Switch on supply voltage for the encoder at X1: set ENCVON to 1.
S300 Instructions Manual 85
Kollmorgen 02/2017 Electrical installation
RS 485
RS 485
RS 485
RS 485
X5
DATA
CLOCK
DATA
CLOCK
6
7
4
5
GND
150 *Ù
SSI Absolut
14
7
5V +/-5
max. 250mA
UP
0V
0V
U
P
4
2
12
10
UP
0V
U
P
0V
X1
GND
1
min. 5VDC/5mA
* matches RS485 with resistor according
to line impedance
Motor
sense
sense
thermal control
voltage supply
S300
