8.3.2 Technical data for connecting cables
Further information on the chemical, mechanical and electrical characteristics of the
cables can be obtained from our customer service.
Observe the rules in the section "Conductor cross-sections" on page 28. To reach the
max. permitted cable length, you must use cable material that matches the capacitance
requirements listed below.
Capacitance (phase to shield)
Motor cable less than 150 pF/m
Resolver/Encoder cable less than 120 pF/m

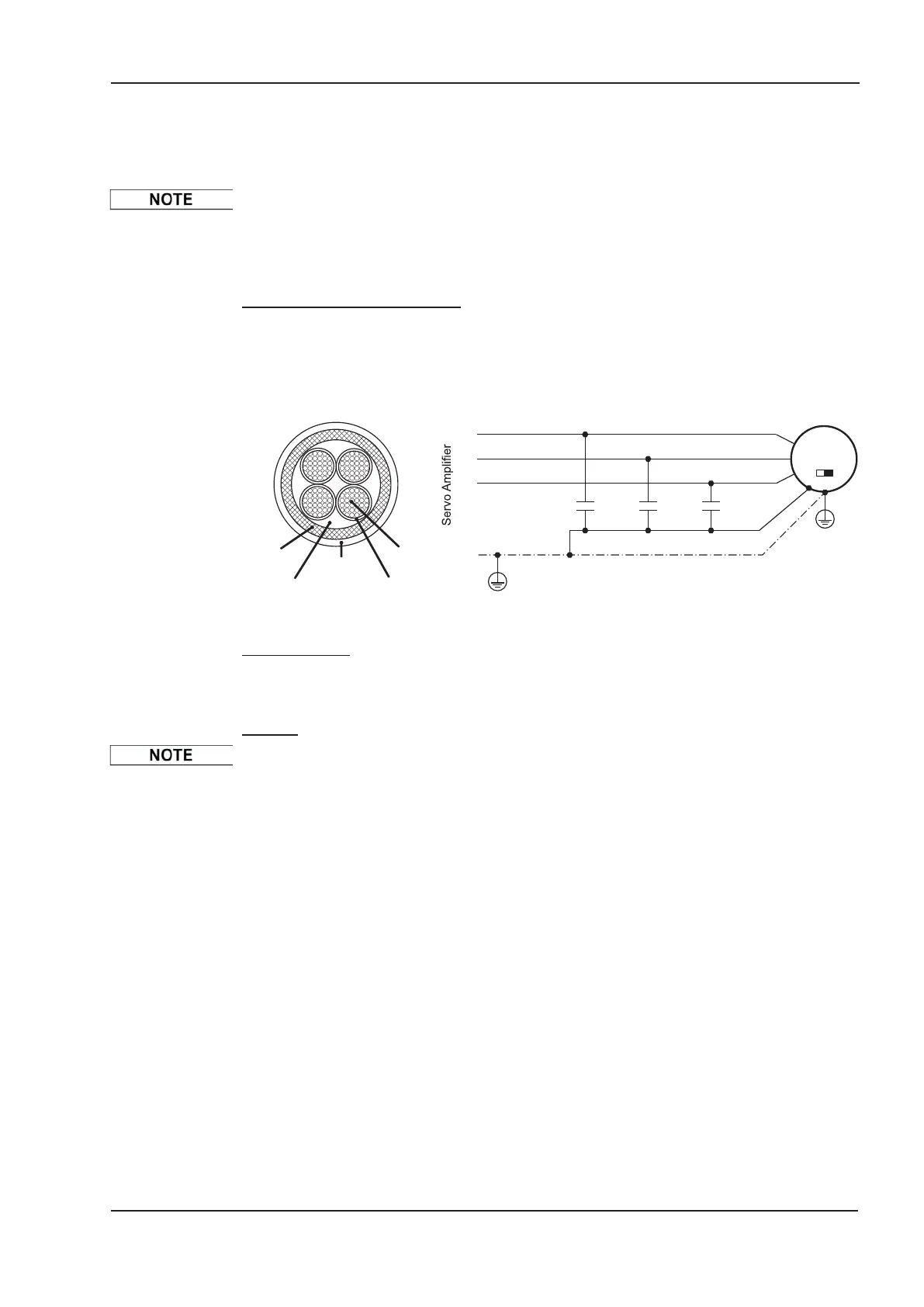

Example: Motor cable
Technical data
For a detailed description of cable types and how to assemble them, please refer to the
accessories manual.
Chokes
Motor cables longer than 25m require the use of a motor choke 3YL or 3YLN.
S300 Instructions Manual 53
Kollmorgen 02/2017 Electrical installation
U
V
W
PE
3~
M
SHIELD
Capazity Phase-to-Shield
Core Isolation
Core
Isolation
Fill material
Shield
