Kollmorgen SERVOSTAR 300

7.3 Assembly
Material: 3 x M5 hexagon socket screws to ISO 4762
Tool required:4mmAllen key
46 S300 Instructions Manual
Mechanical Installation 02/2017 Kollmorgen

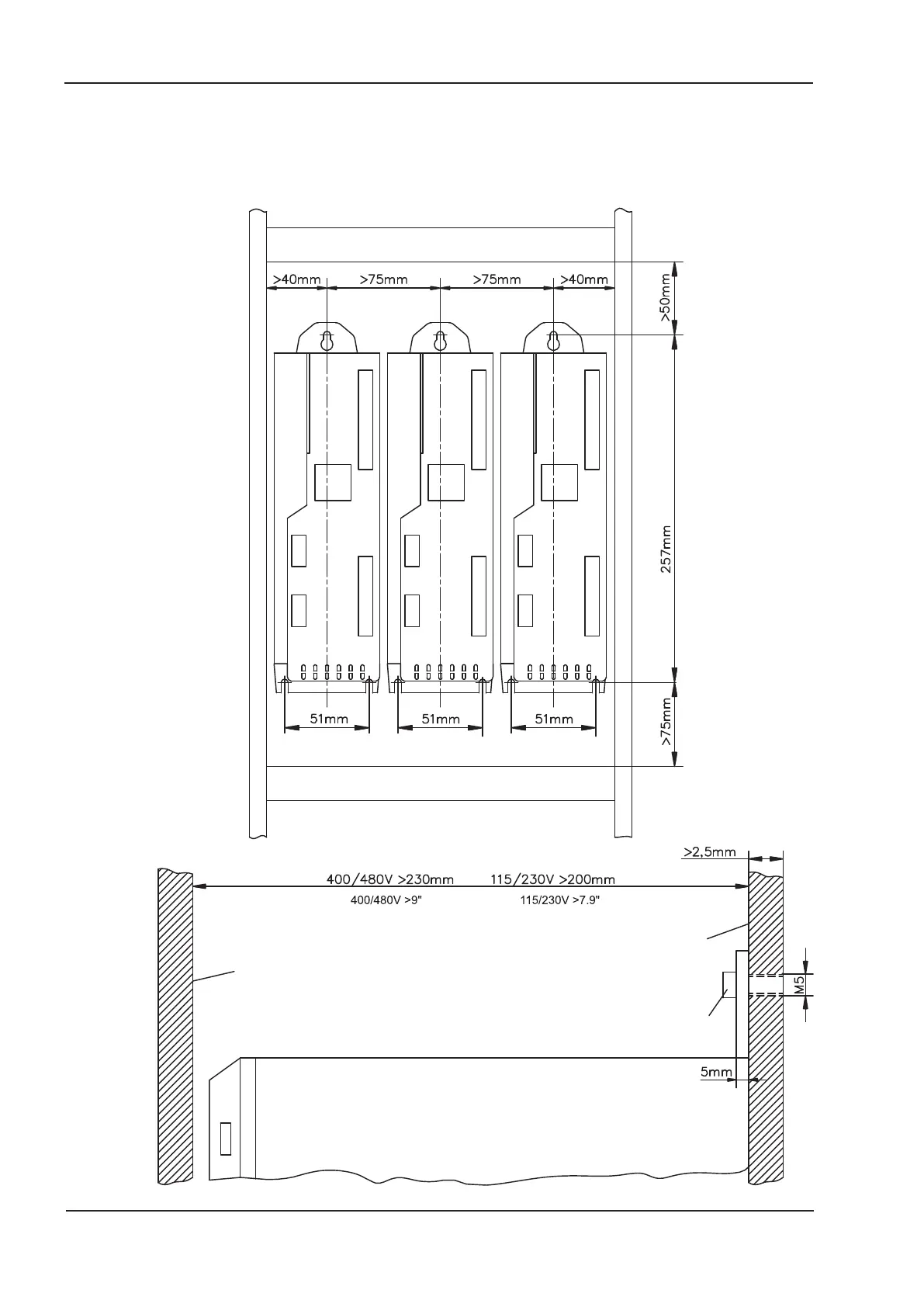

Cable duct
Cable duct
Cabinet door
conductive (zinc-coated)
mounting panel
screw for hex key EN 4762
>1.6" >3" >3"
>1.6"
2"2"
2"
>2"
10.12"
>3"
>0.1"
0.2"
S300
