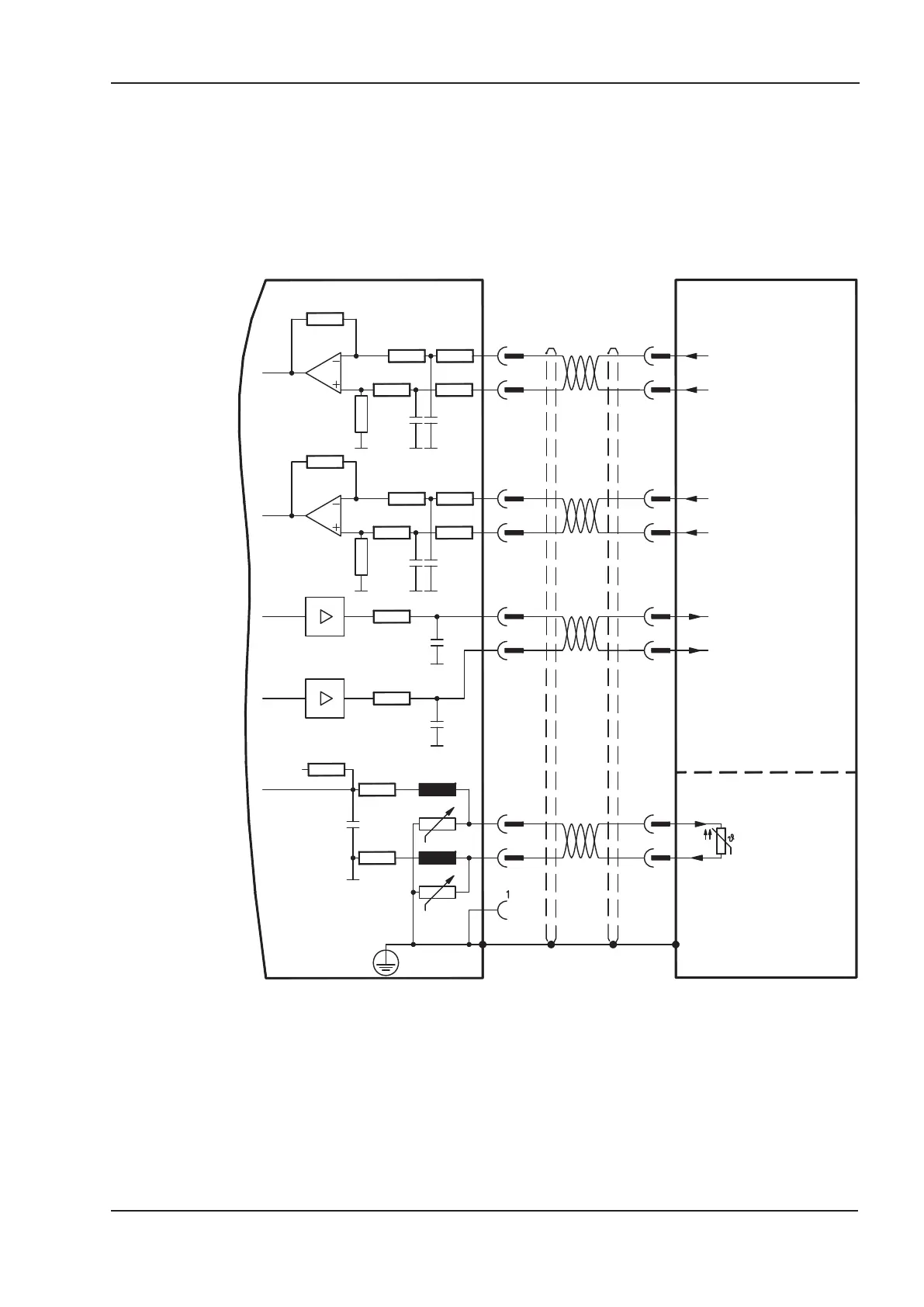

8.12.3 Resolver (X2)
Connection of a Resolver (2 to 36-poles) as a feedback system (primary, ð p.66). The
thermal control in the motor is connected via the resolver cable to X2 and evaluated
there.
If cable lengths of more than 100m are planned, please consult our customer service.
FBTYPE: 0
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
S300 Instructions Manual 69
Kollmorgen 02/2017 Electrical installation
2
6
10R
4
5
9
8
3
7
X2
2
6
min.5VDC/5mA
4
5
9
8
3
7
R1
R2
S1
S3
S4
S2
10R
1
Resolver
thermal control
Motor
S300
SubD 9
round 12-pin
